What processors are compatible with the MSI MAG B860M Mortar WIFI?

The MSI MAG B860M Mortar WIFI motherboard supports the latest Intel® Core™ Ultra Processors (Series 2) designed for the LGA 1851 socket, providing a platform for next-generation computing power.

What is the maximum supported DDR5 memory speed on this motherboard?

This motherboard pushes memory performance with support for DDR5 speeds up to an impressive 9200+ MT/s when overclocked (using a 1DPC 1R configuration). It features 4 DIMM slots with a maximum capacity of 256GB.

Does the MSI MAG B860M Mortar WIFI have Wi-Fi 7?

Yes, it comes equipped with the cutting-edge Intel® Killer™ BE1750x module, providing Wi-Fi 7 connectivity with speeds up to 5.8Gbps on the 6GHz band, alongside Bluetooth 5.4 for seamless wireless connections.

Filter

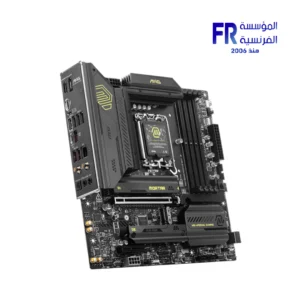

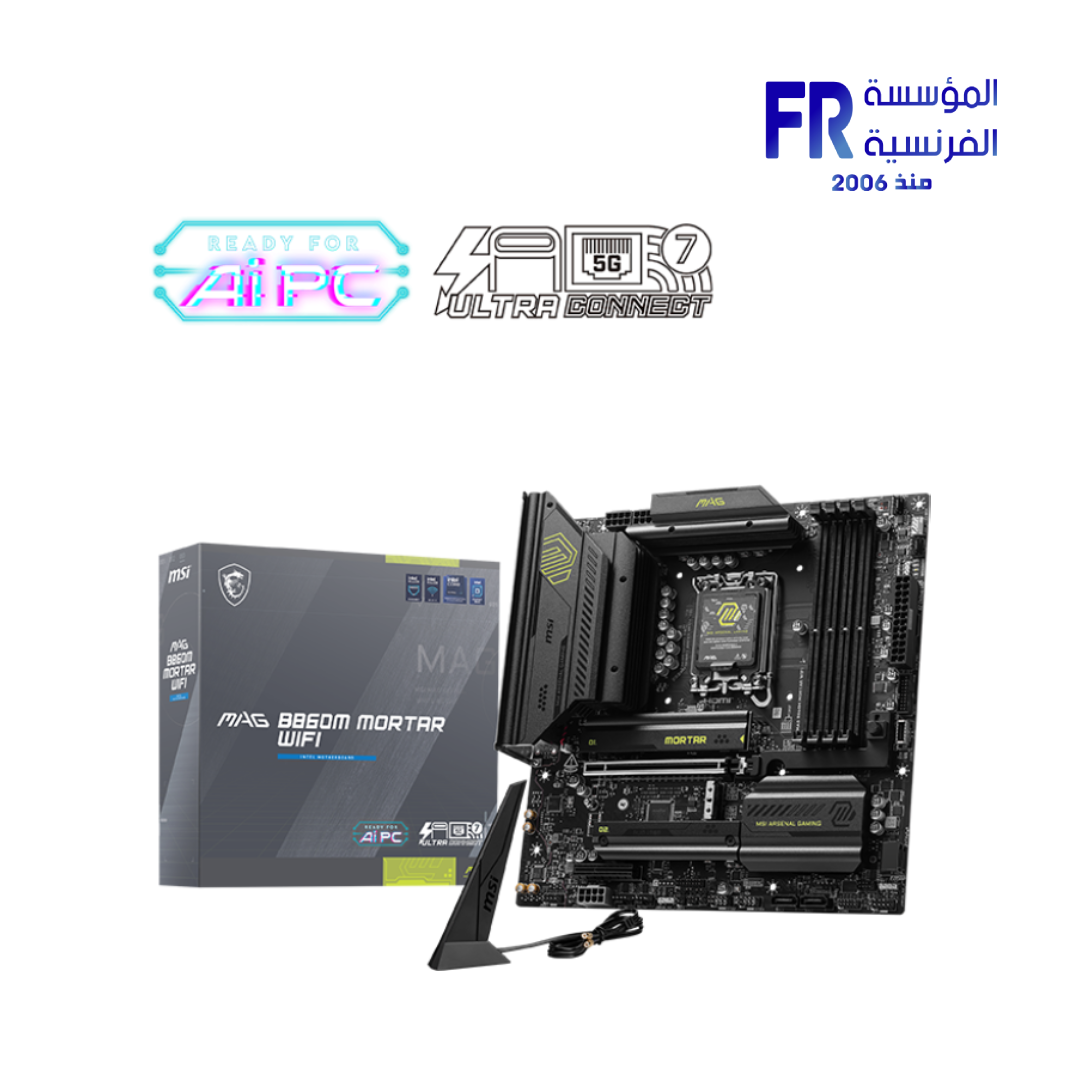

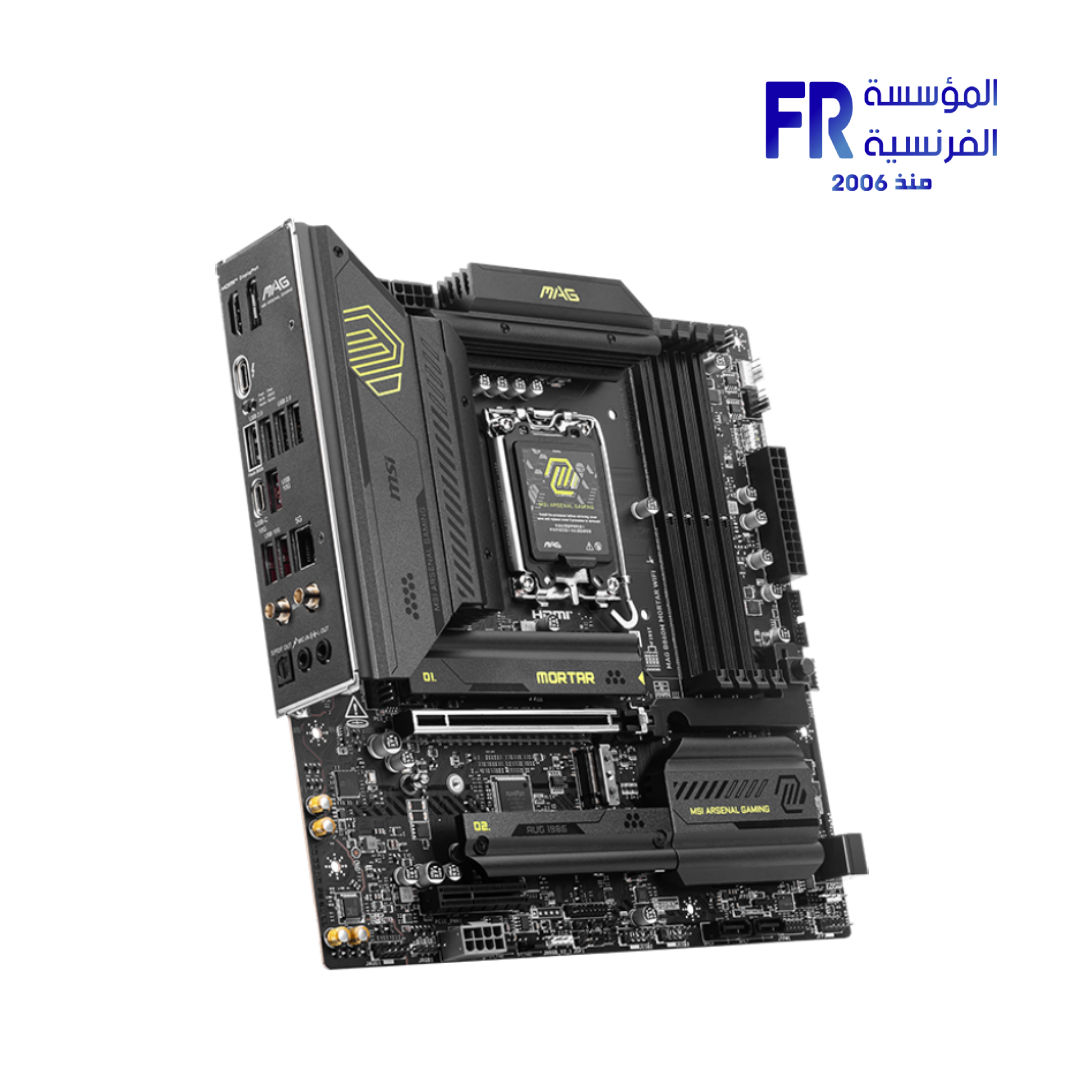

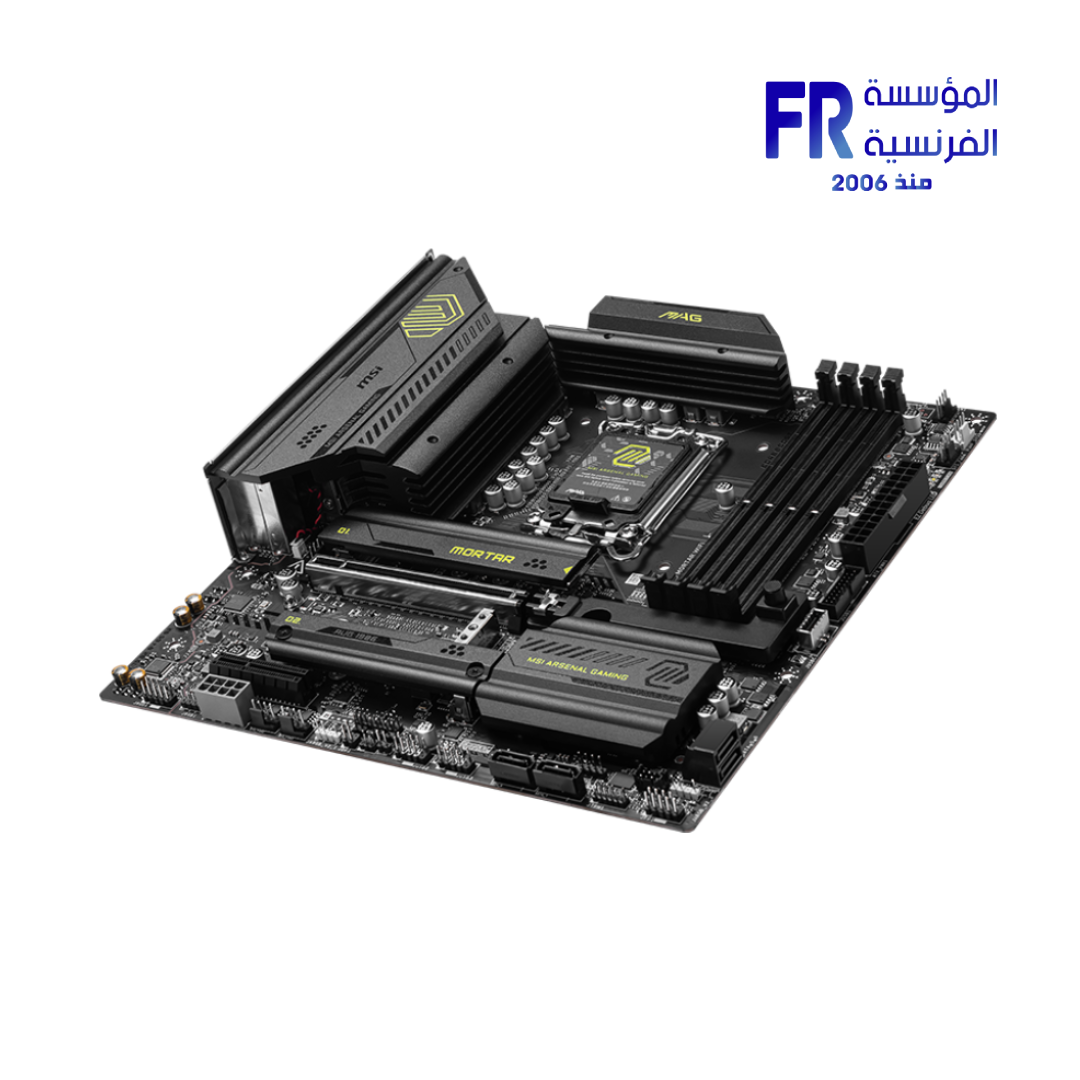

MSI MAG B860M Mortar WIFI Motherboard

11200 EGP

Model Name: MAG B860M Mortar WIFI Motherboard
Part Number: 911-7E40-002
Chipset/Socket: Intel B860 / LGA 1851 (Core Ultra Series 2)
Memory/Speed: 4x DDR5 Slots / Up to 9200+ MT/s (OC)
Connectivity: PCIe 5.0 GPU & M.2 / Killer Wi-Fi 7 / Thunderbolt™ 4
Warranty: 3 Years

Only 1 left in stock

Price Match Guarantee

MSI MAG B860M Mortar WIFI Motherboard

Build your next-gen rig with the powerful MSI B860M Mortar WIFI motherboard. Featuring support for Intel’s latest CPUs and blazing-fast connectivity, it’s the best B860 motherboard in Egypt under 11,500 EGP.

LGA 1851 Socket

Intel Core Ultra (S2)

DDR5 9200+ (OC)

Extreme Memory Speed

PCIe 5.0 x16

Next-Gen Graphics

Wi-Fi 7 & 5G LAN

Ultra-Fast Networking

Next-Gen Powerhouse: MSI B860M Mortar WIFI

Ready for Intel Core Ultra (Series 2)

To begin with, the MSI B860M Mortar WIFI is engineered for the future, supporting the latest Intel® Core™ Ultra Processors (Series 2) on the LGA 1851 socket. Furthermore, it unleashes incredible memory performance with support for DDR5 memory up to a staggering 9200+ MT/s (OC), ensuring your system handles demanding tasks and games with ease.

Blazing-Fast Connectivity Suite

Moreover, this motherboard is packed with cutting-edge connectivity options. Experience next-gen graphics performance with the PCIe 5.0 x16 slot and ultra-fast storage via three M.2 slots (including one PCIe 5.0). In addition, stay connected with Intel® Killer™ Wi-Fi 7, 5Gbps LAN, and versatile Thunderbolt 4 ports.

Technical Specifications

Specification	Detail
Model	MAG B860M MORTAR WIFI
Chipset	INTEL B860
CPU Socket	LGA 1851 (Intel Core Ultra Series 2)
Memory Support	4x DDR5 UDIMM, Max 256GB, up to 9200+ MT/s (OC)
Expansion Slots	1x PCIe 5.0 x16, 1x PCIe 4.0 x4
Storage	3x M.2 (1x PCIe 5.0 x4, 2x PCIe 4.0 x4), 4x SATA 6G
LAN	Intel® Killer™ E5000 5Gbps LAN
Wireless / Bluetooth	Intel® Killer™ BE1750x Wi-Fi 7 / Bluetooth® 5.4
Thunderbolt	1x Thunderbolt™ 4 port (Rear, Type-C, 40Gbps)

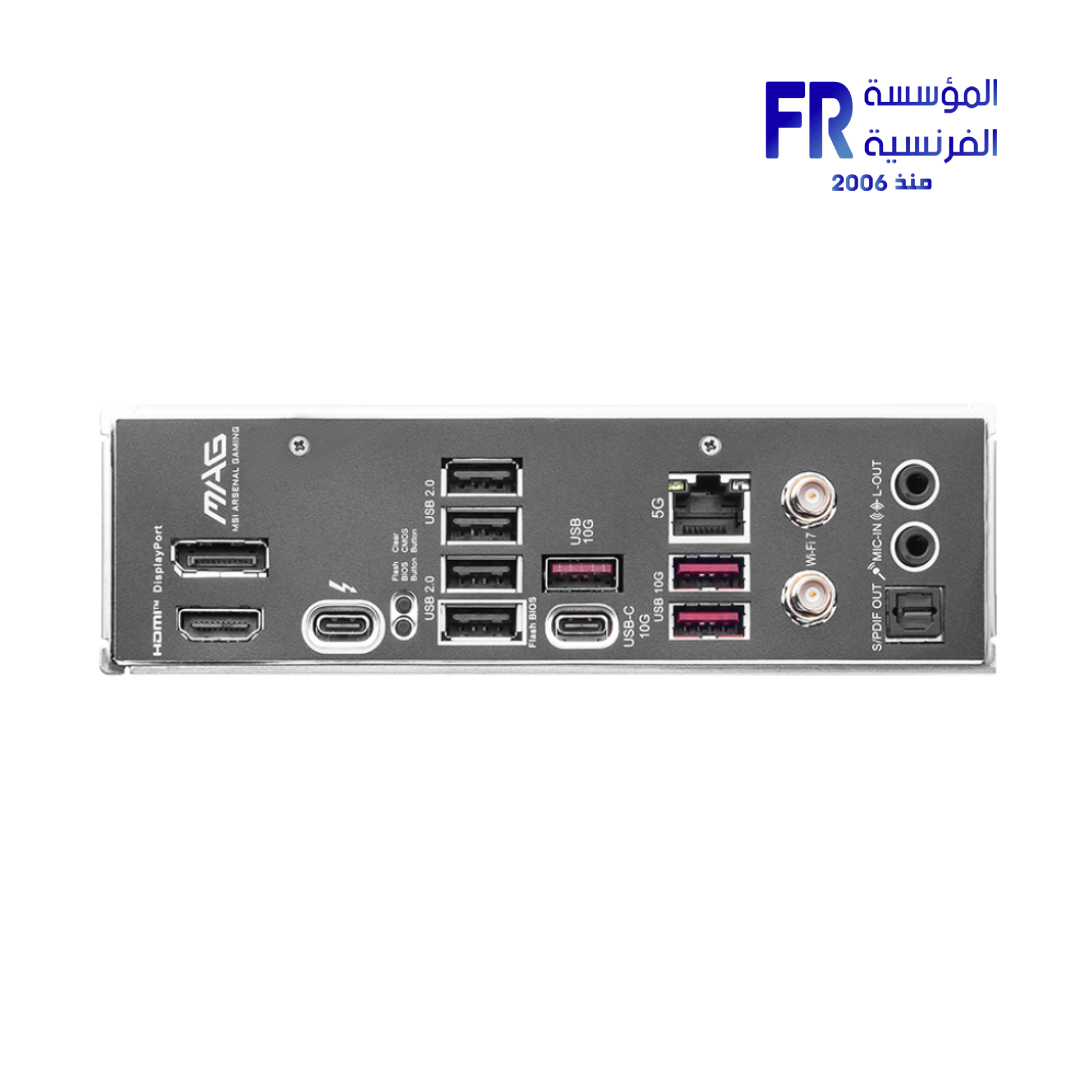

Rear USB Ports	1x USB 10G Type-C, 3x USB 10G Type-A, 4x USB 2.0
Form Factor	mATX (243.84mm x 243.84mm)
Warranty	3 Years

💡 Pro Tip:

Before installing your Intel Core Ultra Series 2 processor, make sure to update the BIOS on your MSI B860M Mortar WIFI to the latest version via the Flash BIOS Button for guaranteed compatibility. Also, remember to enable XMP 3.0 in the BIOS to achieve the advertised high-speed DDR5 memory frequencies.
