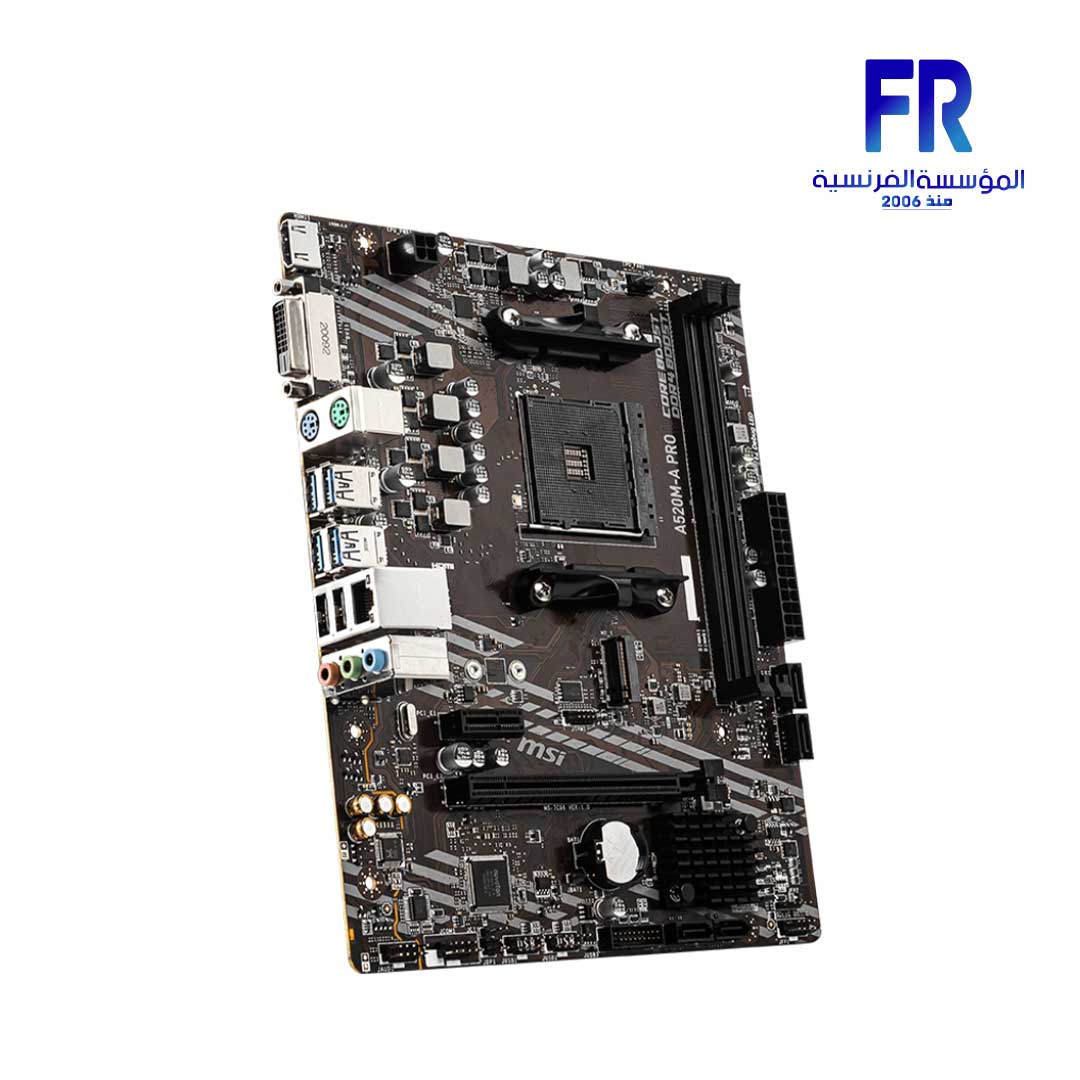

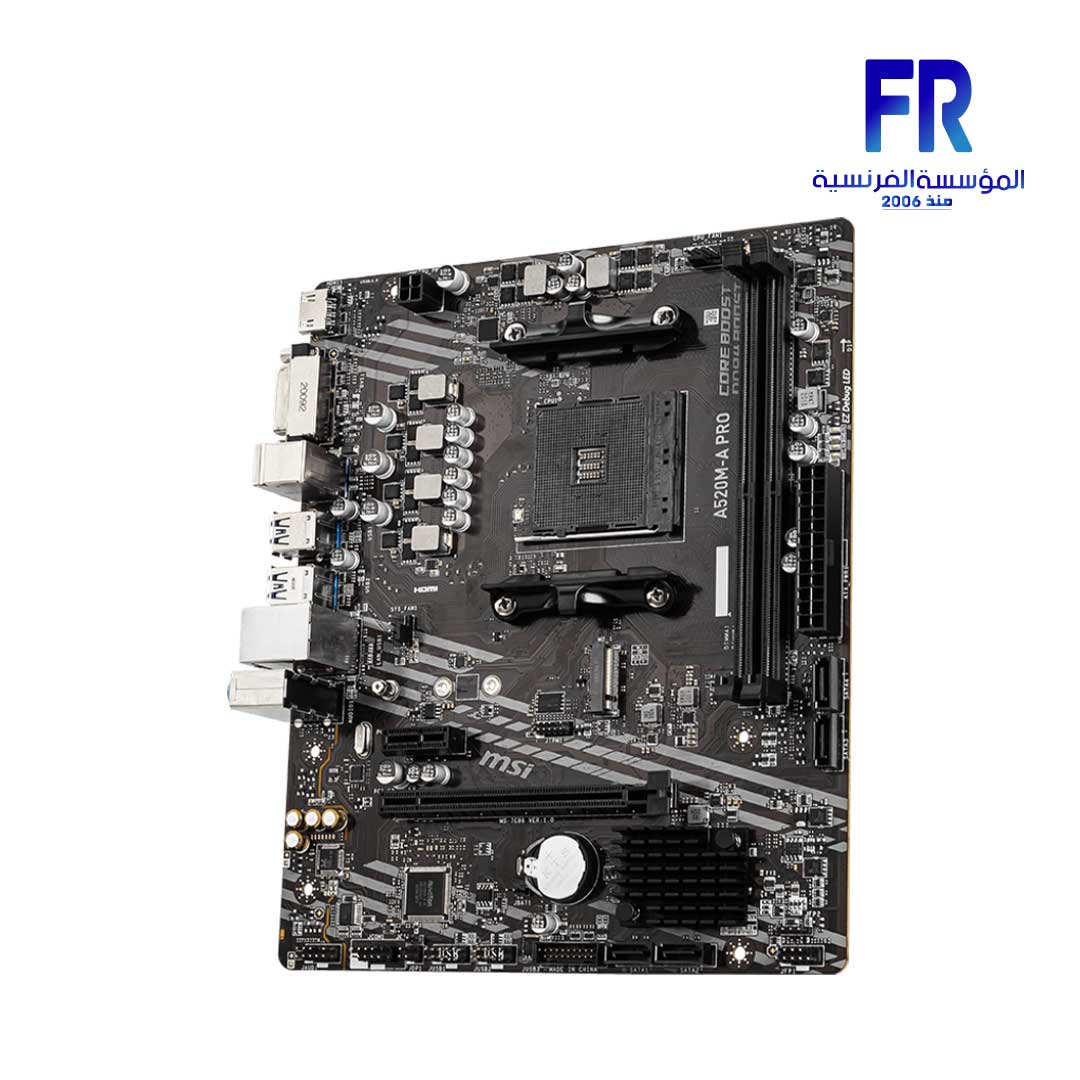

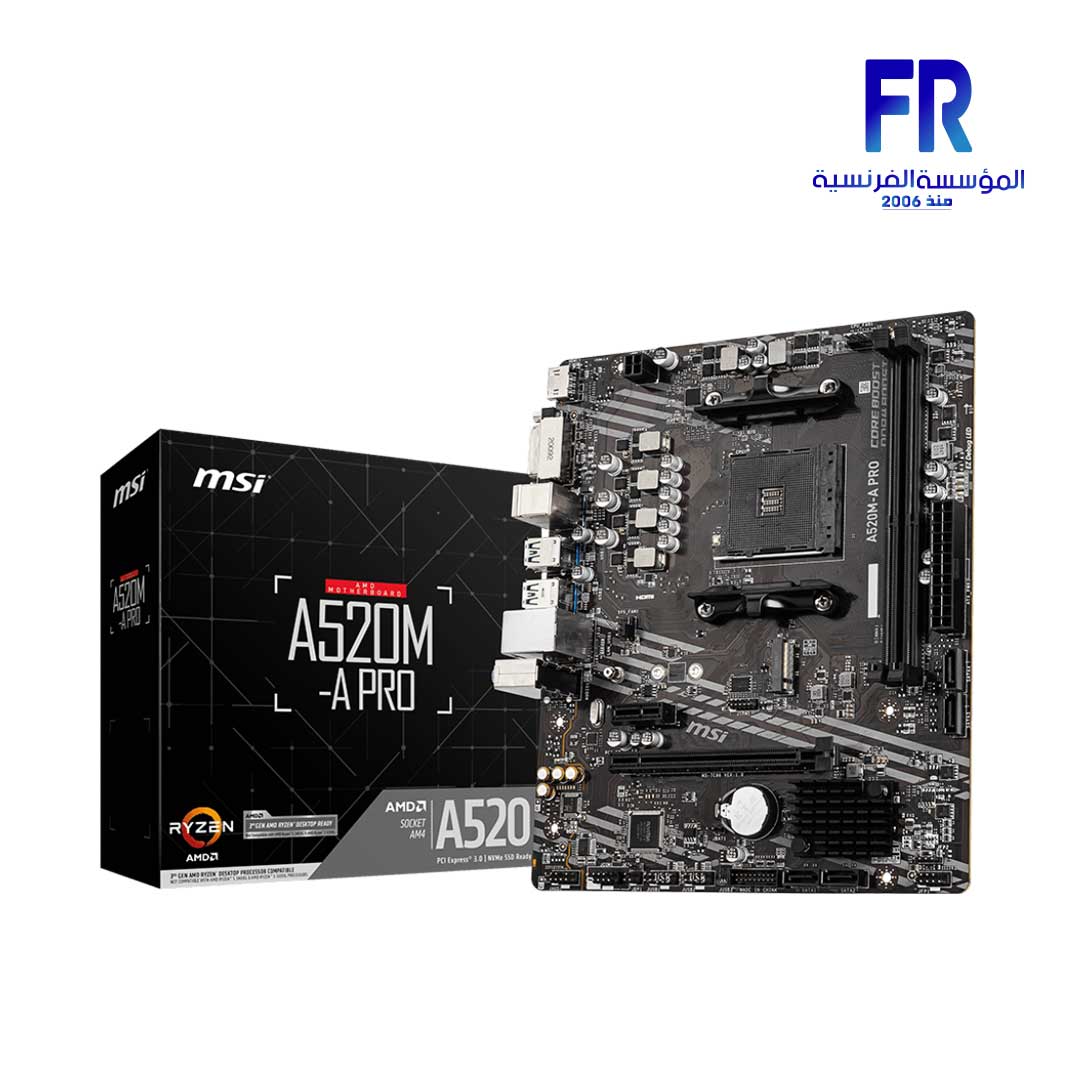

Msi Pro A520M-A Motherboard

Name: Msi Pro A520M-A Motherboard
Brand: MSI
SKU: 824142224007
Availability: OutOfStock

2799 EGP

Out Of Stock.

Price Match Guarantee

MSI PRO A520M-A Motherboard


Chipset	A520
Form Factor	Micro-ATX Form Factor : 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Socket	AMD Socket AM4

Memory Type	Dual-channel memory architecture
Max Number of Channels	Dual
Memory Capacity	64GB
Memory Slots	2x DDR4 memory slots

LAN	1x Realtek® RTL8111H Gigabit LAN
USB	AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
HDMI	1x HDMI 2.1 port, maximum resolution of 4096×2160 @60Hz
TPM (Trusted Platform Module )	1xTPM module connector
DVI-D	1

Slots	M.2 SLOT 1

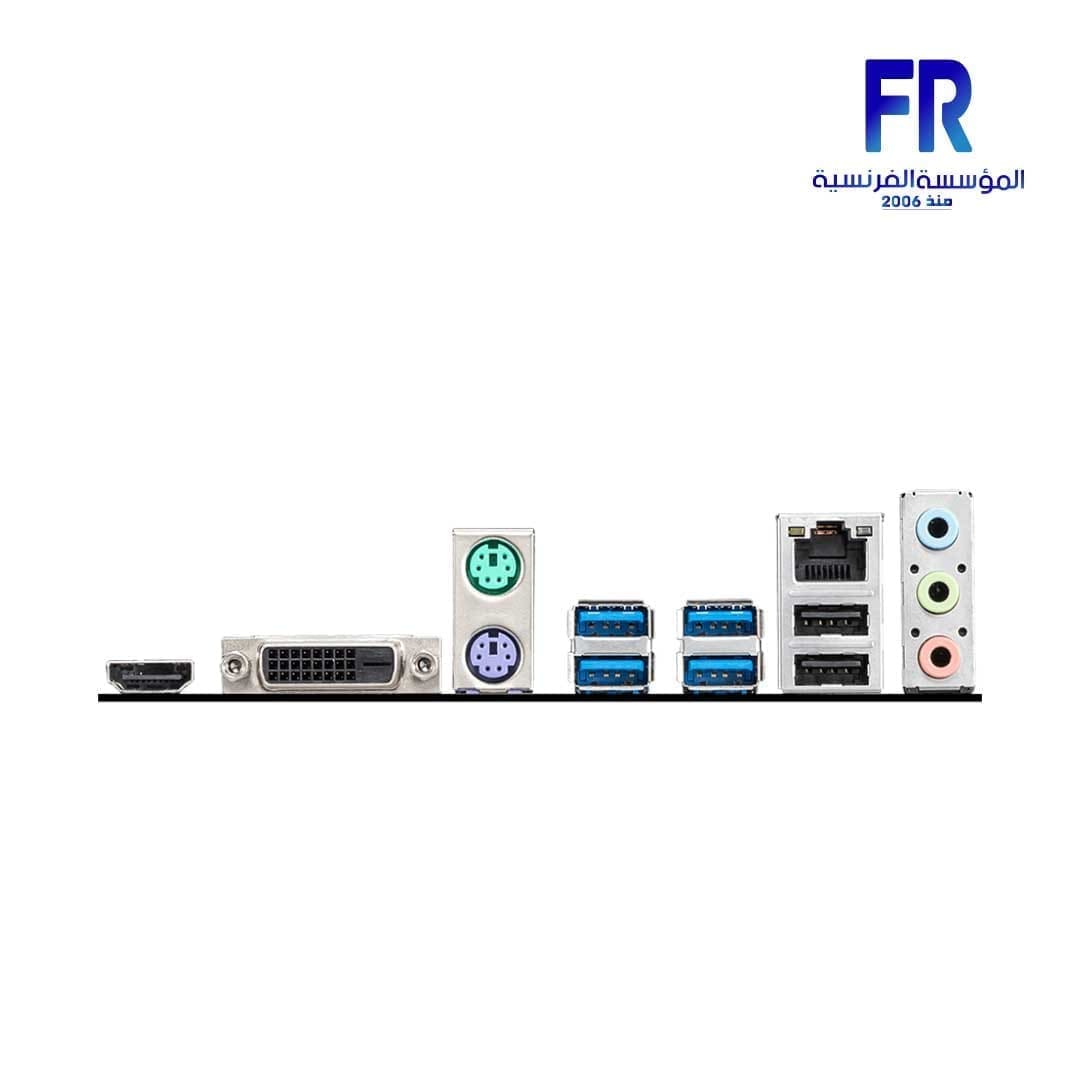

Ports	USB 3.2 Ports (Front) 2(Gen 1, Type A) USB 3.2 Ports (Rear) 4(Gen 1, Type A) USB 2.0 Ports (Front) 4 USB 2.0 Ports (Rear) 2(Type A) Audio Ports (REAR) 3 HD audio connectors
Internal I/O Ports	1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper
PCI-E	PCI-EX16 1 PCI-EX1 1 PCI-E GEN Gen 2, Gen 3, Gen 4

MOTHERBOARD

MODEL	Pro A520M-A
CHIPSET MANUFACTURERS	AMD
CPU Socket	AM4
Motherboard Chipset	A520
Motherboard Type	Micro ATX
CPU SERIES	Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series
Technology	DDR4
Memory Speed	1600 MHz, 2400 MHz, 2666 MHz, 3000 MHz, 3200 MHz, 3333 MHz, 3600 MHz, 3733 MHz, 4000 MHz, 4133 MHz, 4400 MHz
Max Memory Size	64 GB
Memory Slot	2
PCI-E X16	YES
PCI-E GEN	PCIe 3.0
PCI-E Slots (M.2)	1
SATAIII	4x SATA 6.0 Gb/s
Communication module	N/A
Part Number	911-7C96-024
Warranty	3 Years
