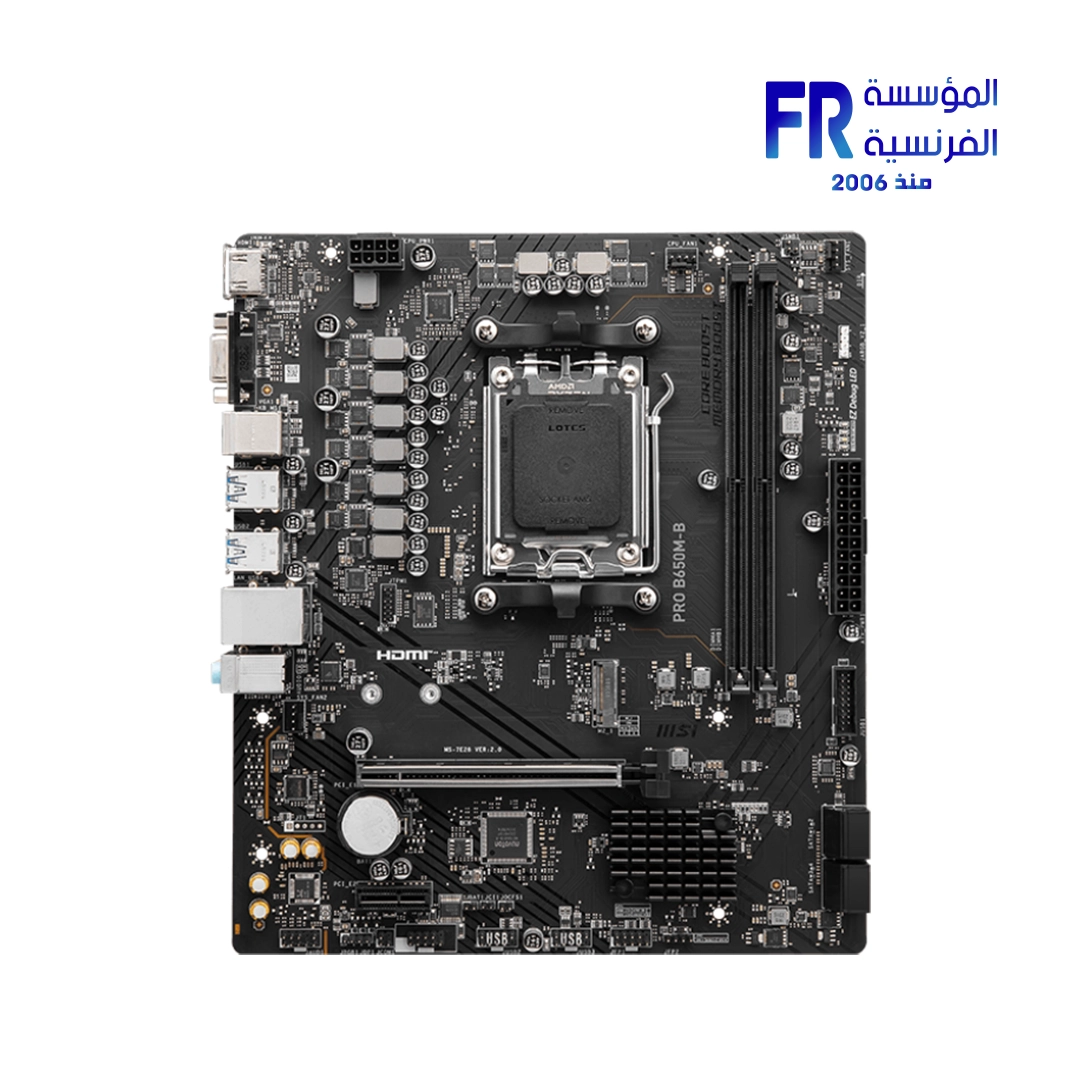

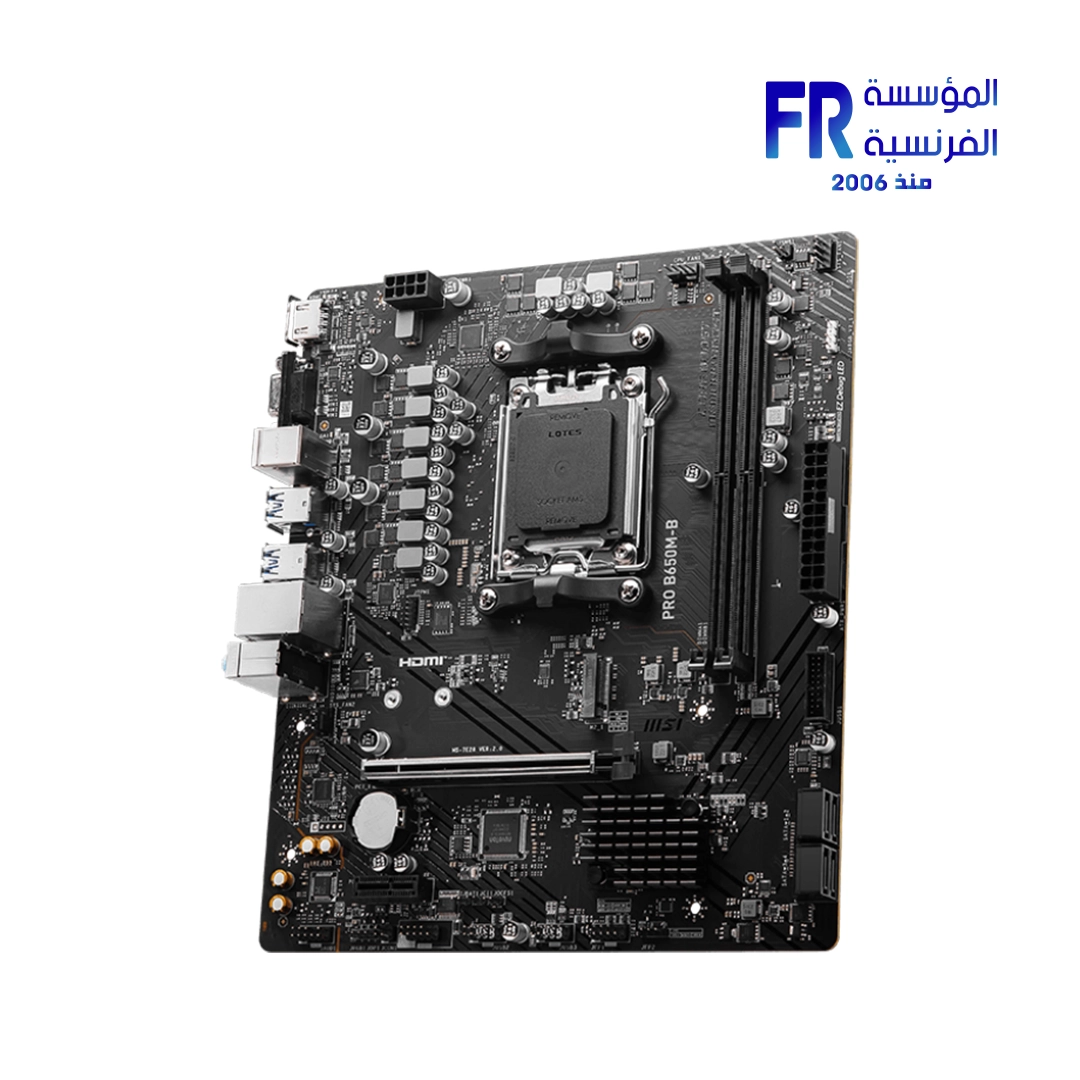

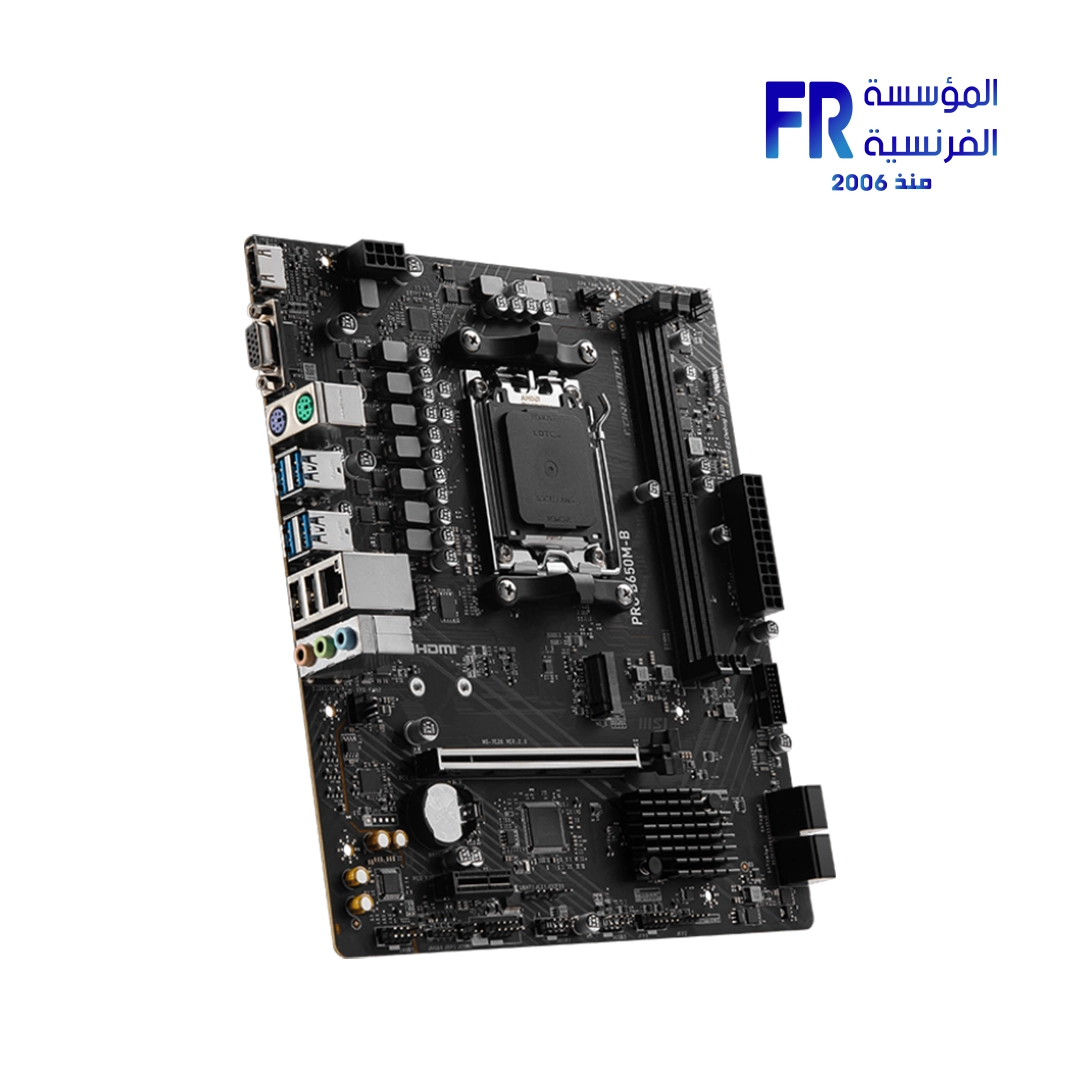

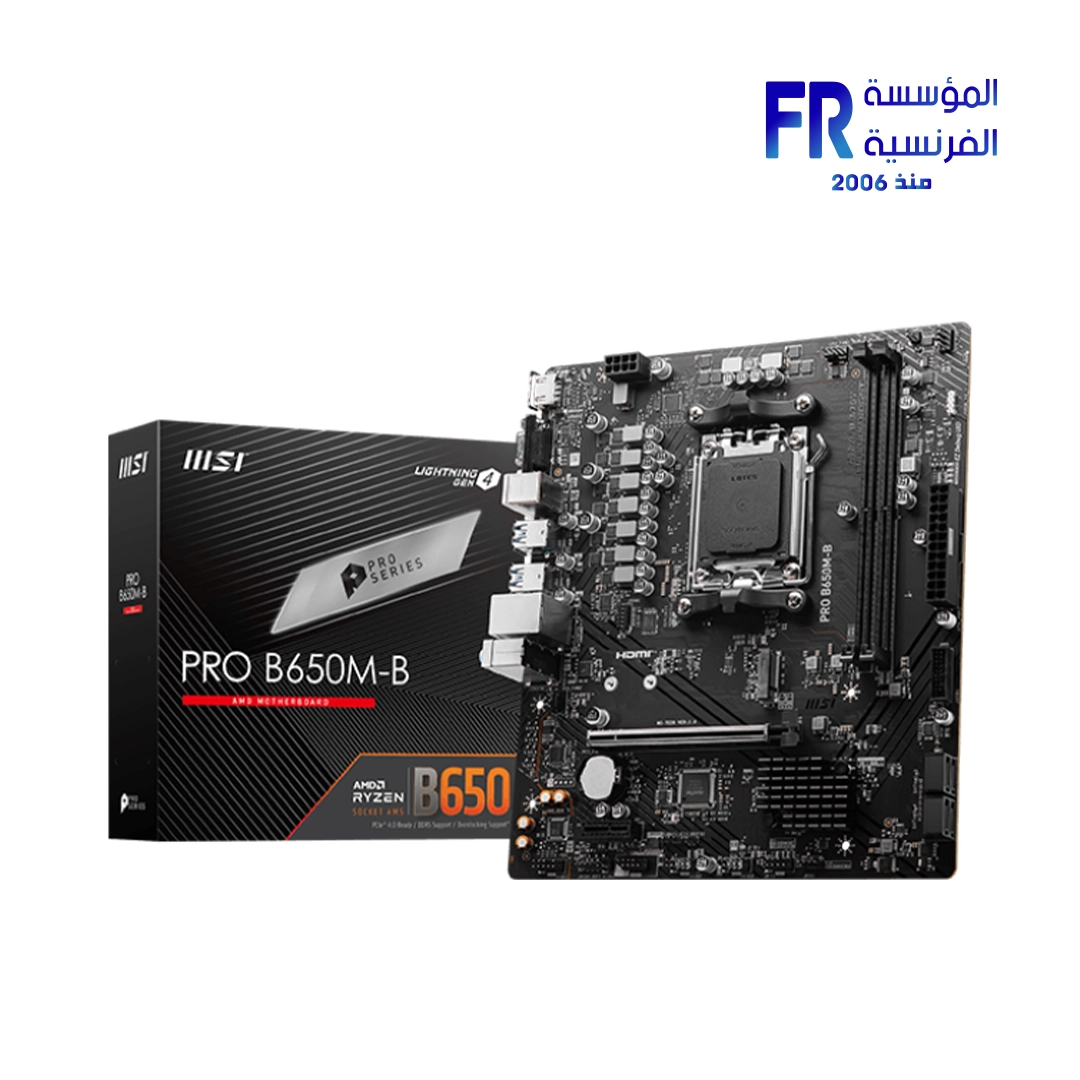

MSI PRO B650M-B Motherboard

The MSI PRO B650M-B Motherboard is designed with tons of flexible tools and supports DDR5 memory. This motherboard is tailored for professionals and everyday users seeking impressive performance and high quality. It provides an incredible experience, assisting with multitasking and increasing efficiency for various workloads.

Core Performance and Enhanced Reliability:

This motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors with Socket AM5, ensuring broad compatibility for the latest CPUs. It features Core Boost technology, combining MSI’s premium layout and optimized power design. This allows for faster and undistorted current delivery to the CPU with pinpoint precision. Consequently, it supports multi-core CPUs and creates ideal conditions for CPU overclocking. A dedicated chipset heatsink effectively reduces dust and noise while maintaining high efficiency for the PCH.

Advanced Memory and Storage Solutions:

The PRO B650M-B supports Dual-Channel DDR5 Memory with a maximum capacity of 128GB. It offers extensive memory support, including DDR5 6800+(OC) MHz, and features MSI Memory Boost technology. This advanced technology delivers pure data signals for optimal performance, stability, and compatibility. The motherboard also supports AMD EXPO for easy memory overclocking. For storage, it includes one M.2 slot (PCIe 4.0 x4) supporting 2280/2260 devices and four SATA 6G ports. This ensures lightning-fast game experiences and quick loading times.

Seamless Connectivity and User-Friendly Features:

This motherboard provides a Realtek® RTL8125BG 2.5G LAN, an upgraded network solution for professional and multimedia use. It delivers a secure, stable, and fast network connection. For audio, the Realtek® ALC897 Codec offers 7.1-Channel High Definition Audio with Audio Boost, rewarding your ears with studio-grade sound quality for an immersive experience. The Steel Armor feature protects VGA cards against bending and EMI, ensuring better performance, stability, and strength for your graphics card.

Integrated Graphics and Expansion Slots:

The PRO B650M-B includes onboard graphics options with one HDMI™ 2.1 port (supporting 4K 60Hz) and one VGA port. These are available only on processors featuring integrated graphics. It offers one PCI-E x16 slot (supporting x16 for Ryzen™ 9000/7000 Series processors, x8 for Ryzen™ 8700/8600/8400 Series, and x4 for Ryzen™ 8500/8300 Series) and one PCI-E x1 slot. This provides ample expansion capabilities for various components.

Comprehensive USB and LED Features:

Connectivity includes two USB 2.0 (Rear), four USB 2.0 (Front), four USB 5Gbps Type A (Rear), and two USB 5Gbps Type A (Front) ports. The motherboard also features an Addressable V2 RGB LED connector (JARGB_V2) and an RGB LED connector (JRGB) for customizable lighting. Four EZ Debug LEDs assist with troubleshooting during system builds.

Explore compatible Motherboards or check MSI Products for other options. Find full details on the official MSI PRO B650M-B product page.

Specifications:

• Chipset: AMD B650
• CPU Support: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors, Socket AM5
• Memory:
  • 2x DDR5, Maximum Memory Capacity 128GB
  • Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  • Max. overclocking frequency: 1DPC 1R Max speed up to 6800+ MHz, 1DPC 2R Max speed up to 6000+ MHz
  • Supports Dual-Channel mode, non-ECC, un-buffered memory, AMD EXPO
• Onboard Graphics:
  • 1x HDMI™ (Support HDMI™ 2.1, max resolution of 4K 60Hz)
  • 1x VGA (Support VGA, max resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz)
• Slots:
  • 1x PCI-E x16 slot (Supports x16 for Ryzen™ 9000/ 7000 Series; x8 for Ryzen™ 8700/ 8600/ 8400 Series; x4 for Ryzen™ 8500/ 8300 Series)
  • 1x PCI-E x1 slot
  • PCI_E1 Gen PCIe 4.0 (From CPU), PCI_E2 Gen PCIe 3.0 (From Chipset)
• Audio: Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
• Storage: 1x M.2 (PCIe 4.0 x4, supports 2280/2260 devices), 4x SATA 6G
• RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• USB:
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
• LAN: Realtek® RTL8125BG 2.5G LAN
• Internal IO: Power Connectors (ATX_PWR, CPU_PWR), CPU Fan, 2x System Fan, 2x Front Panel (JFP), Chassis Intrusion (JCI), Front Audio (JAUD), Com Port (JCOM), Addressable V2 RGB LED connector (JARGB_V2), RGB LED connector(JRGB), TPM pin header(Support TPM 2.0)
• LED FEATURE: 4x EZ Debug LED

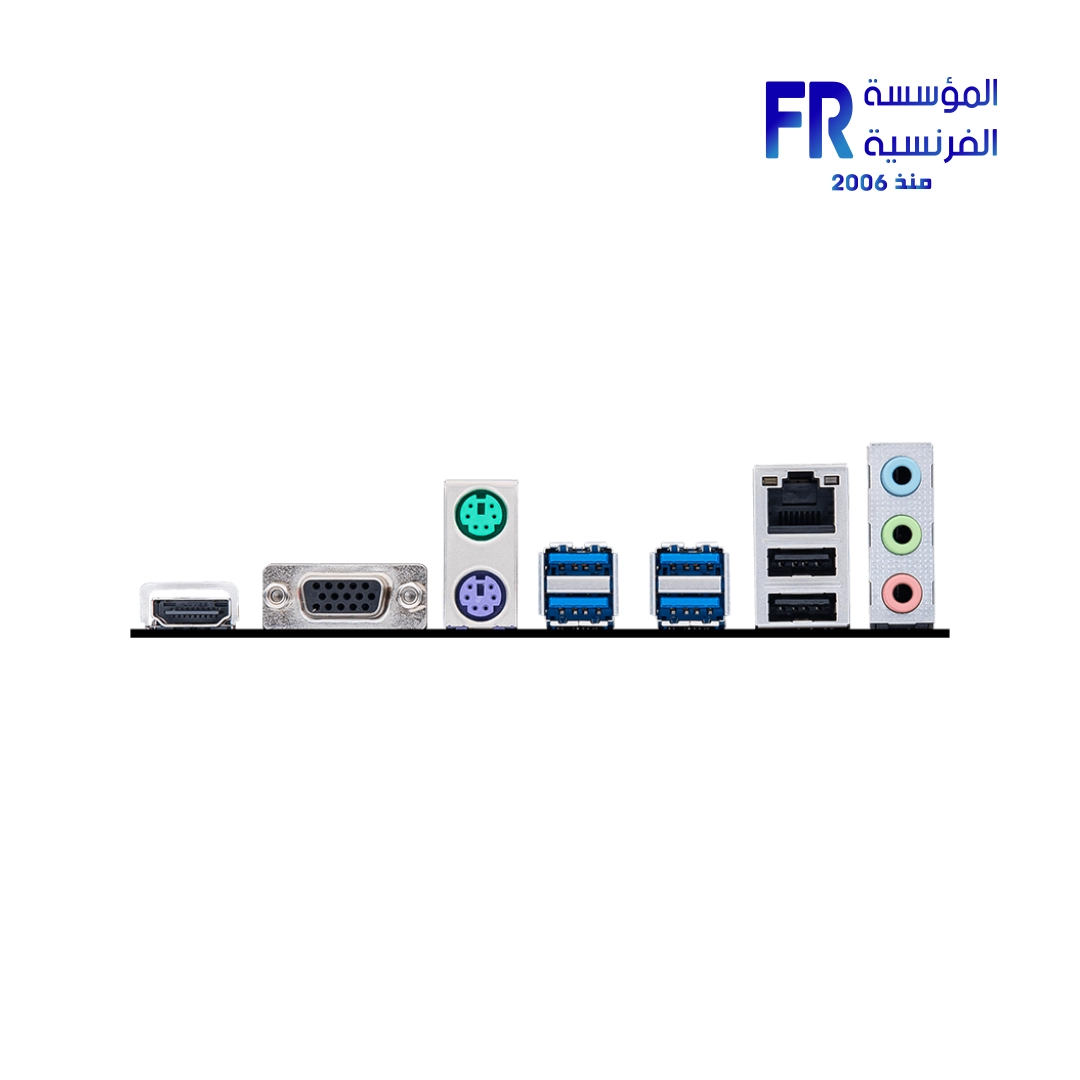

• Back Panel Ports: HDMI™, VGA, Keyboard/Mouse, USB 3.2 Gen 1 5Gbps (Type-A), LAN port, Audio connectors, USB 2.0
• Operating System Support: Windows® 11 64-bit, Windows® 10 64-bit
• PCB Info: mATX, 215mmx243.84mm
• Model Number/SKU: 911-7E28-016
• EAN/UPC: 824142340400
