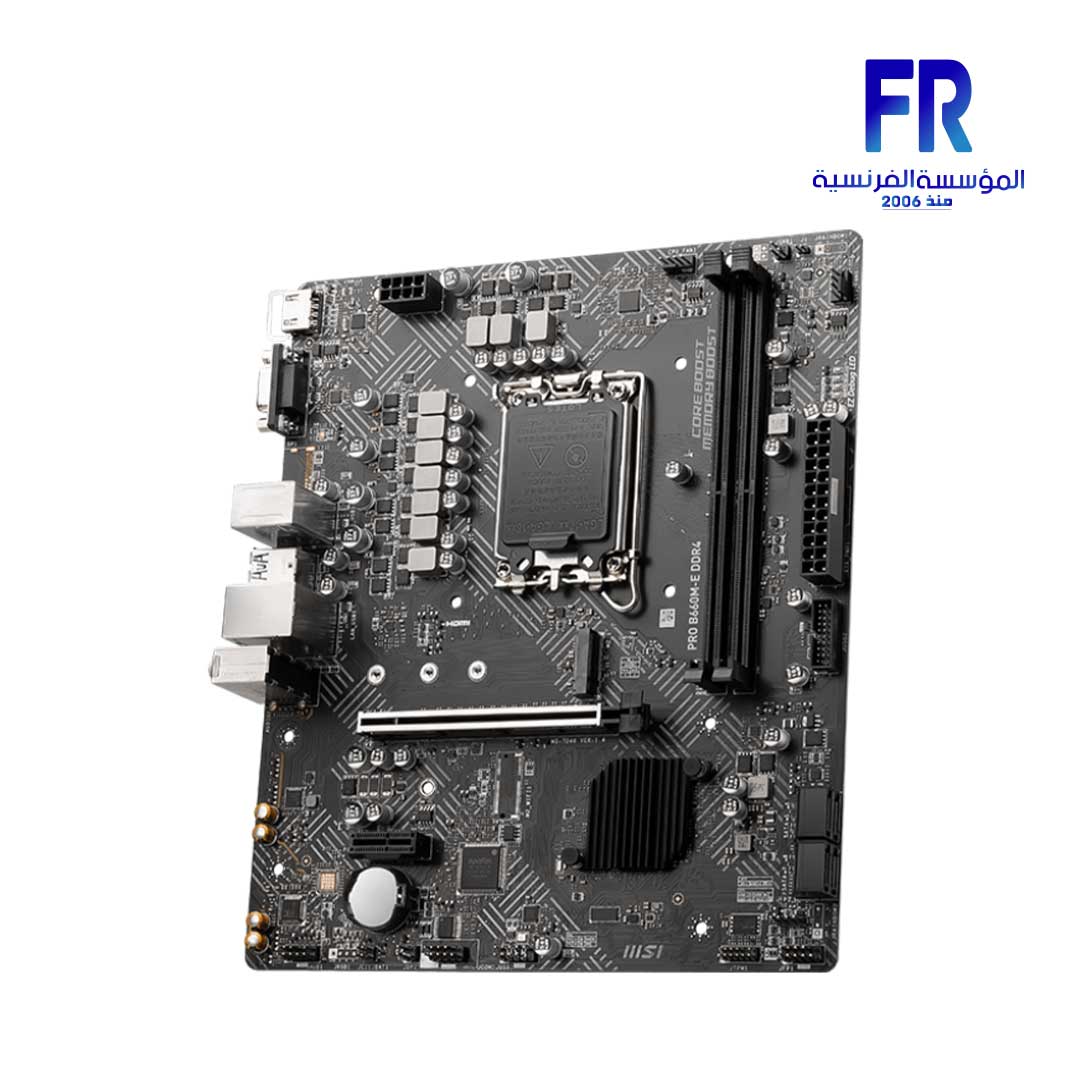

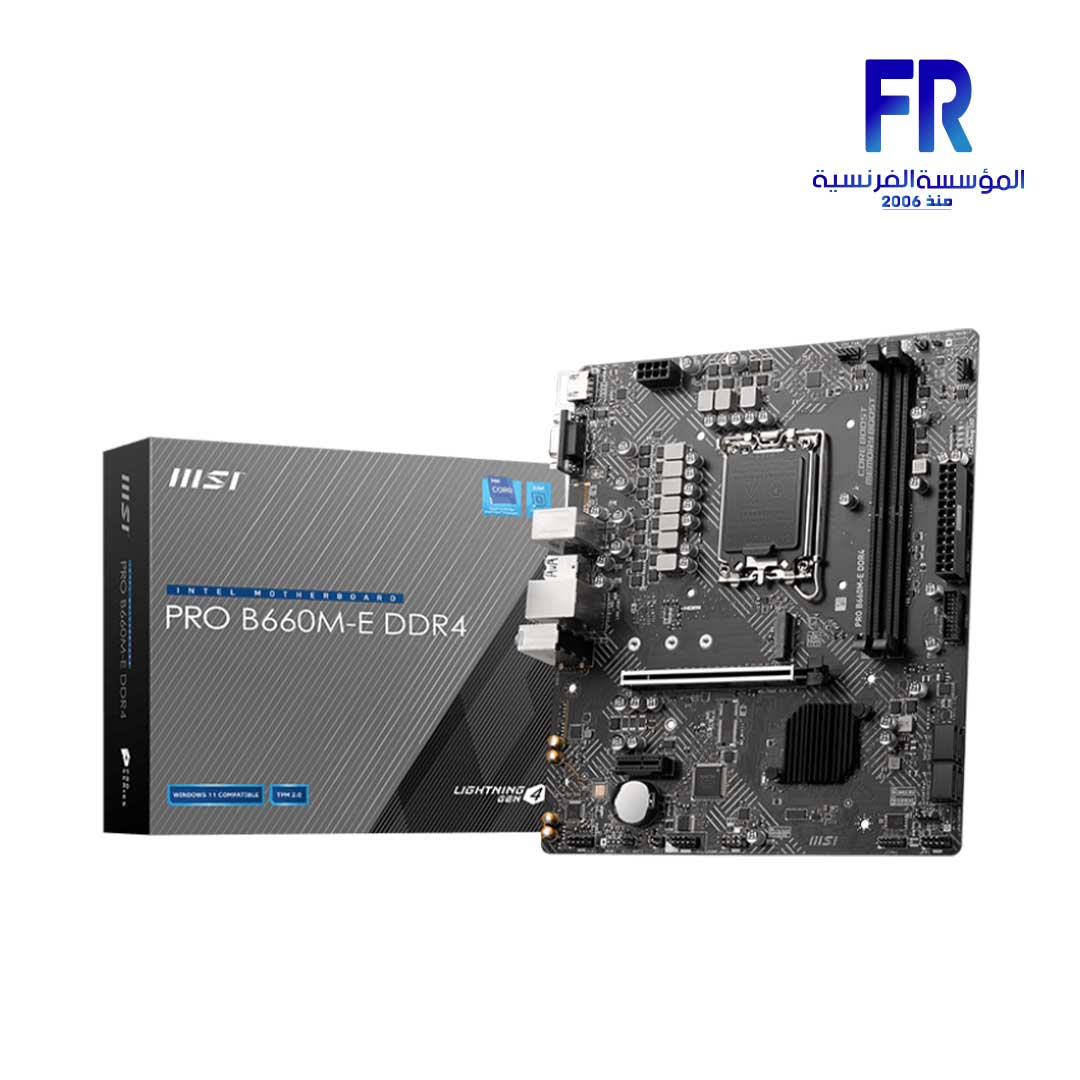

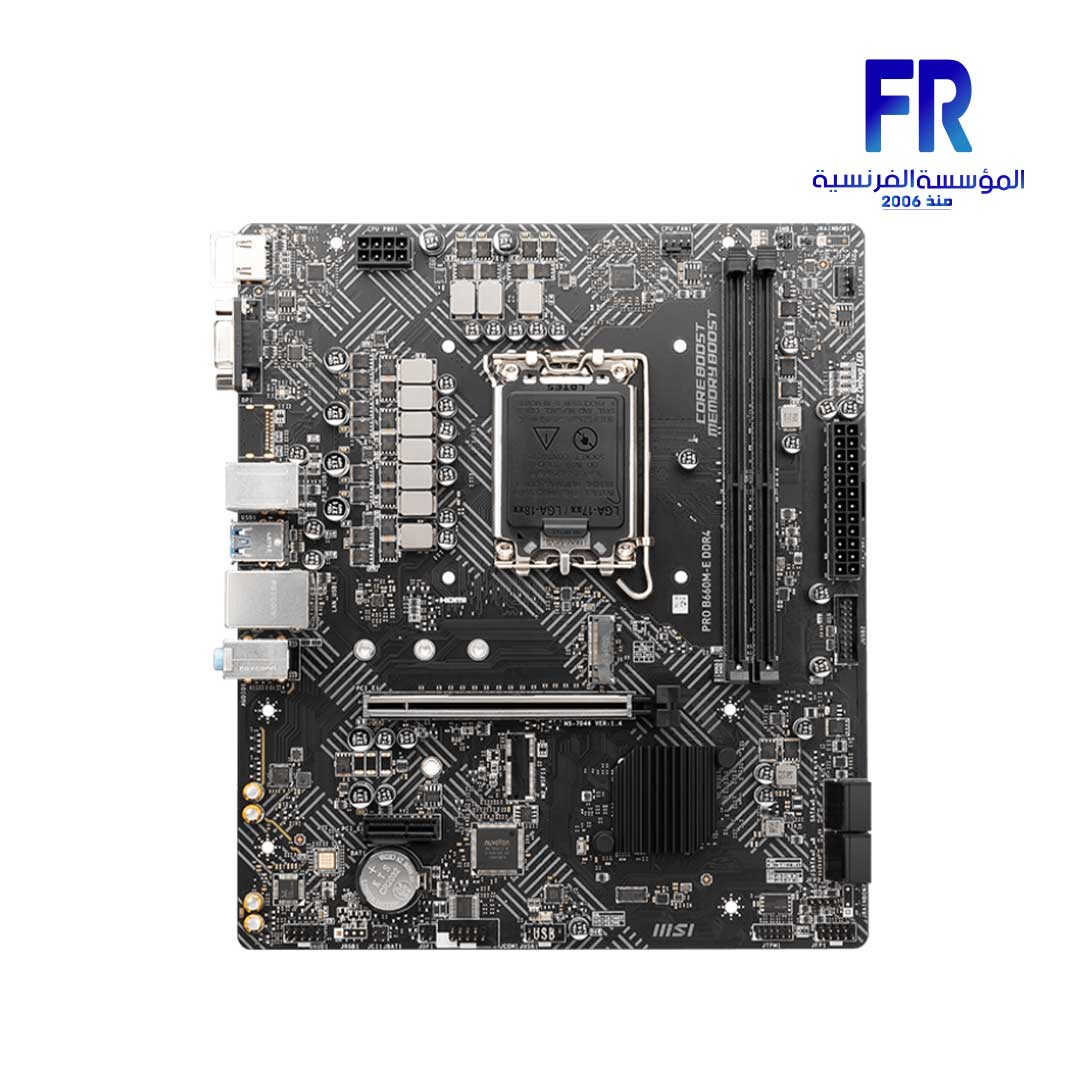

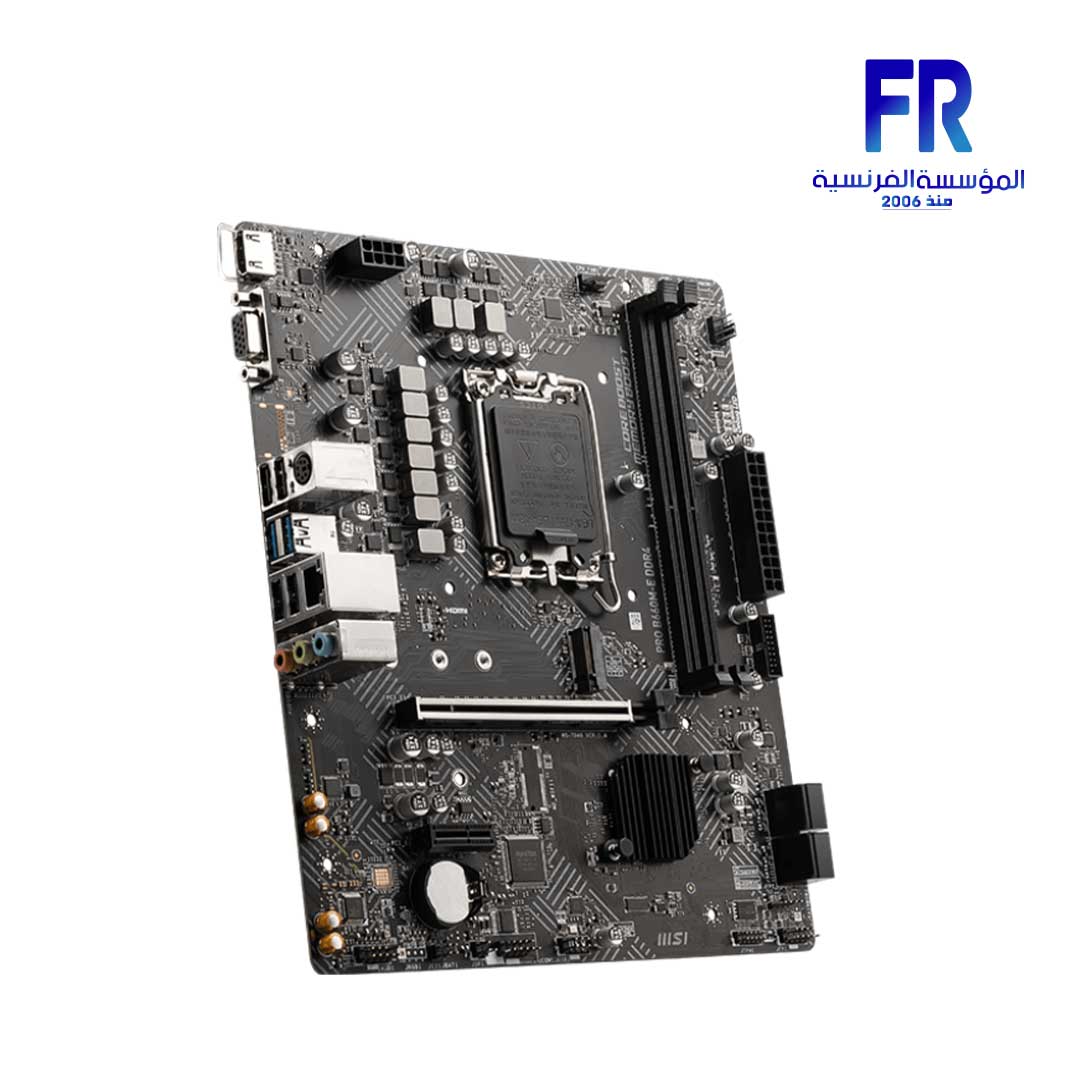

Msi Pro B660M-E DDR4 Motherboard
4600 EGP
- Lightning Gen4 Solution: The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI.
- EZ Debug LED: Easiest way to troubleshoot.
- Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
Out Of Stock.
MSI PRO B660M-E DDR4 Motherboard
PROCESSOR
- Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1
- Processor socket LGA1700
CHIPSET
Intel® B660 Chipset
MEMORY
- 2x DDR4 memory slots, support up to 64GB
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 4600+ MHz
- 1DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT
- 1x PCIe x16 slot (From CPU)
- Supports up to PCIe 4.0 x16
- 1x PCIe x1 slot (From B660 chipset)
- Supports PCIe 3.0 x1
ONBOARD GRAPHICS
- 1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
- 1x VGA port, supports a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
- Available only on processors featuring integrated graphics
- Graphics specifications may vary depending on the CPU installed.
SATA PORTS
- 4x SATA 6Gb/s ports (From B660chipset)
- SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD SLOT
- 1x M.2 slot (Key M, from B660 chipset)
- Supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Support Intel® Optane™ Memory
- Supports Intel® Smart Response Technology for Intel Core™ processors
- SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
AUDIO
Realtek® ALC892/ ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Intel® I219V 1Gbps LAN controller
POWER CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
USB
Intel® B660 Chipset
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
FAN CONNECTORS
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
SYSTEM CONNECTORS
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
JUMPERS
- 1x Clear CMOS jumper
LED FEATURES
- 4x EZ Debug LED

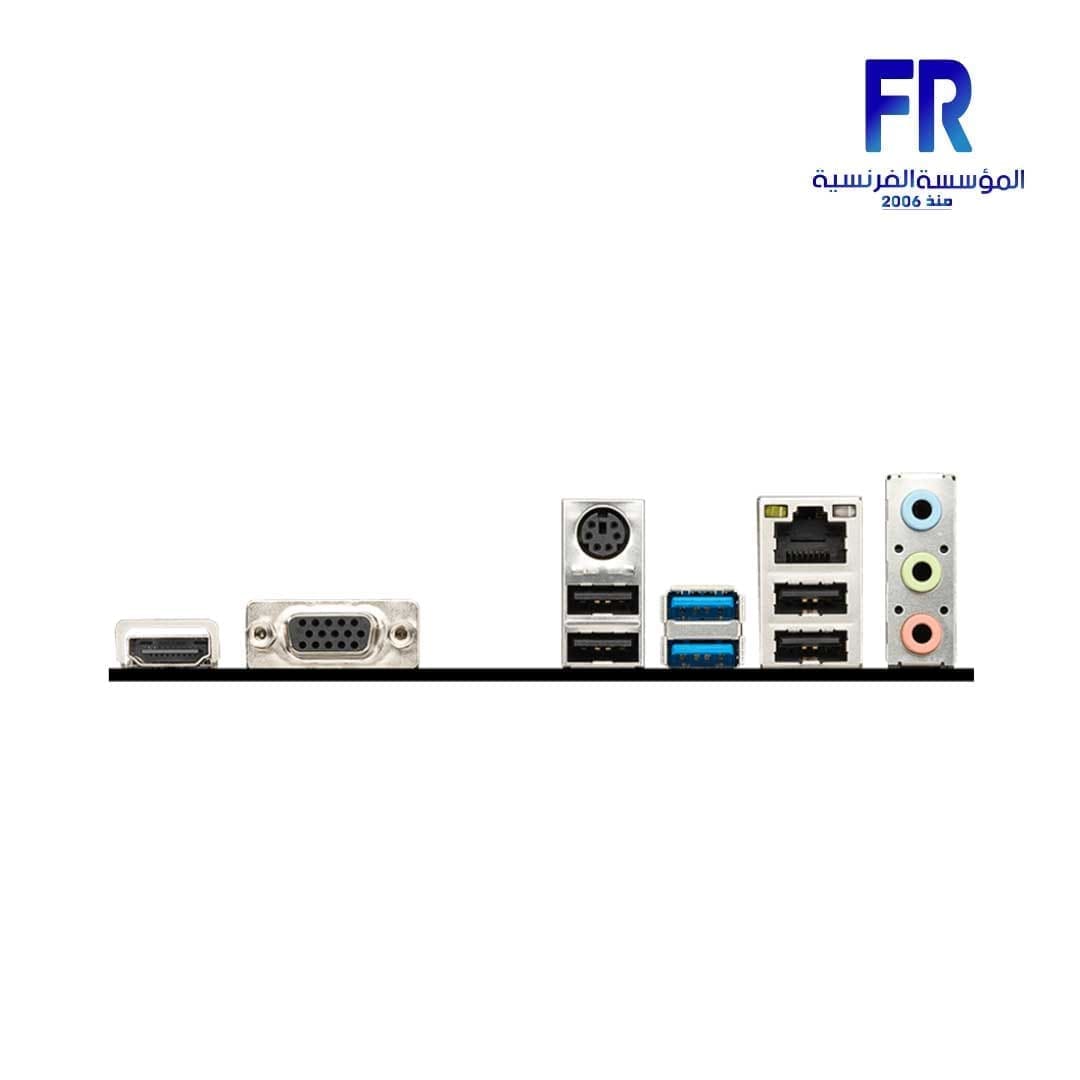

BACK PANEL PORTS
- HDMI™
- VGA
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- LAN port
- Audio connector
- USB 2.0
DIMENSIONS
- M-ATX Form Factor
- 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
