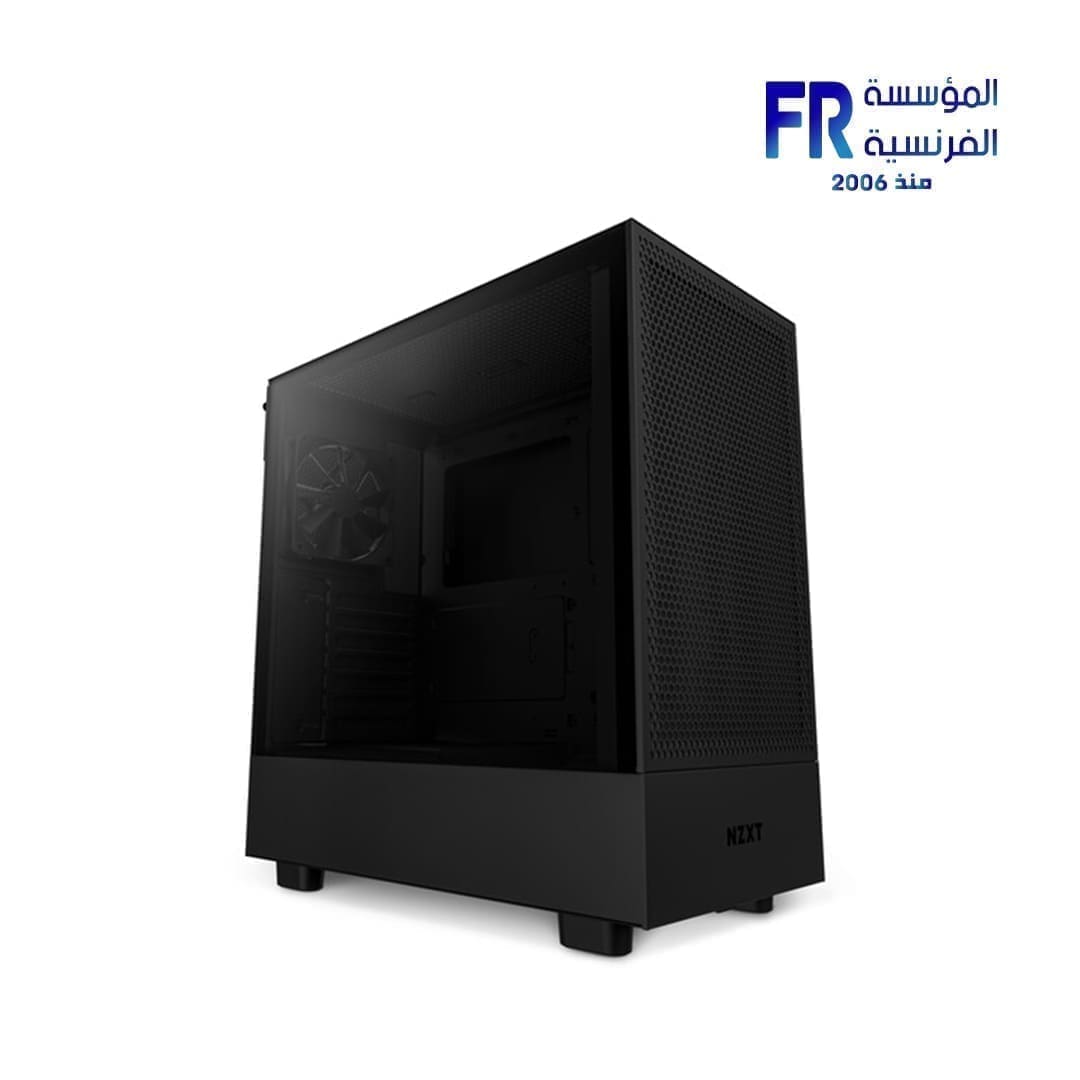

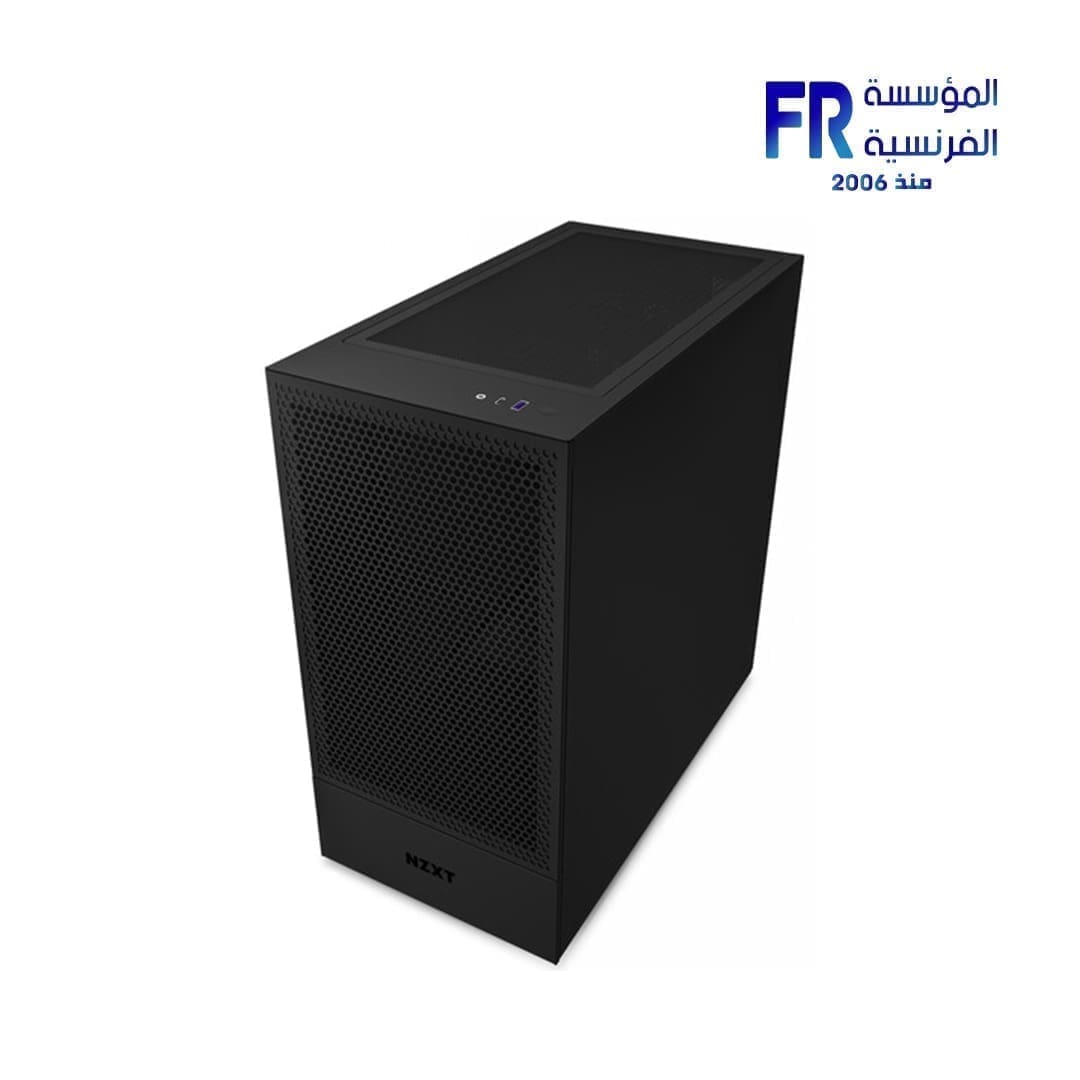

Nzxt H5 Flow 2024 Mid Tower Case
5200 EGP
- ATX, Mini-ITX, Micro-ATX Support

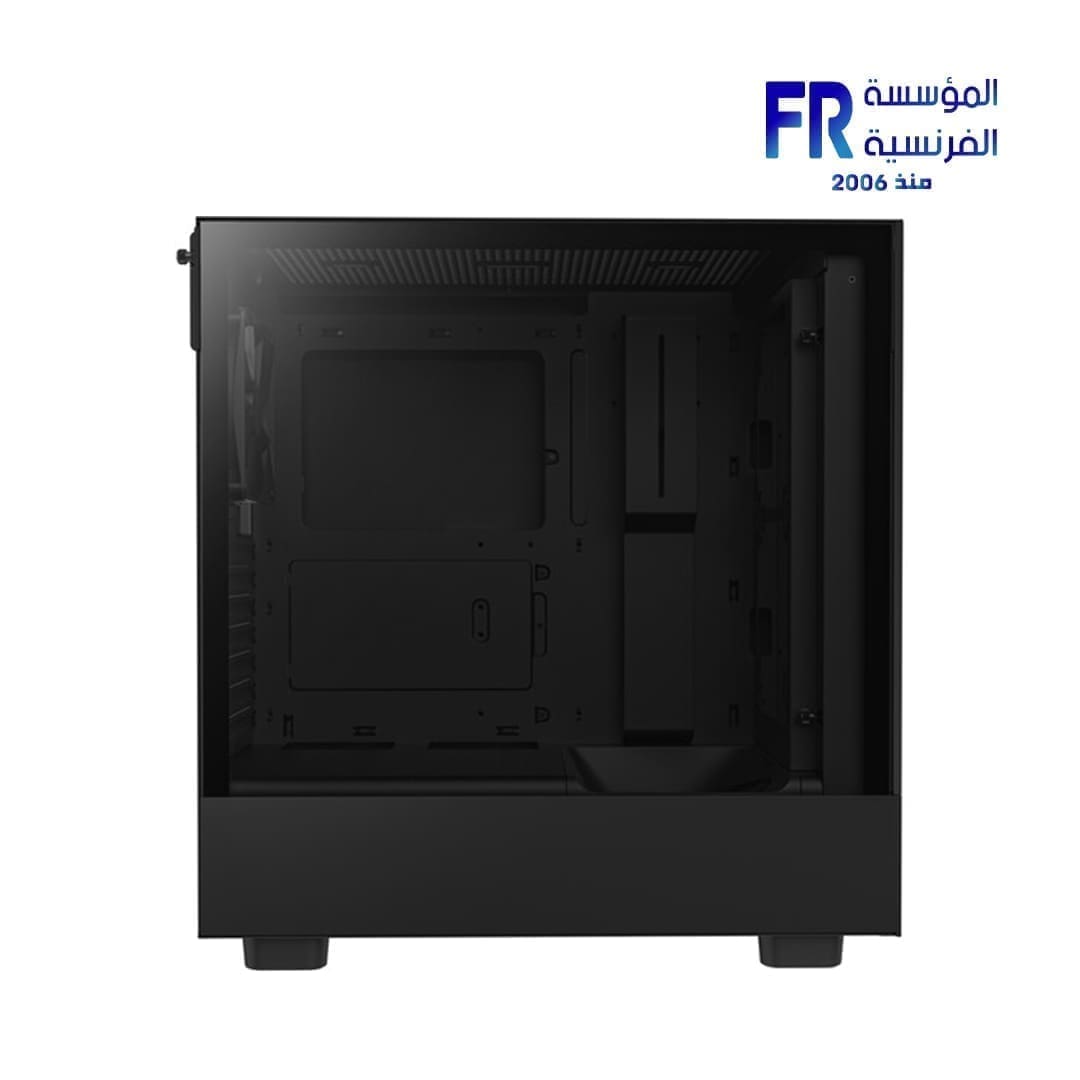

- Steel Frame & Tempered Glass Panel
- 1+1 x 2.5″ Drive Bays
- 1 x 3.5″ Drive Bay

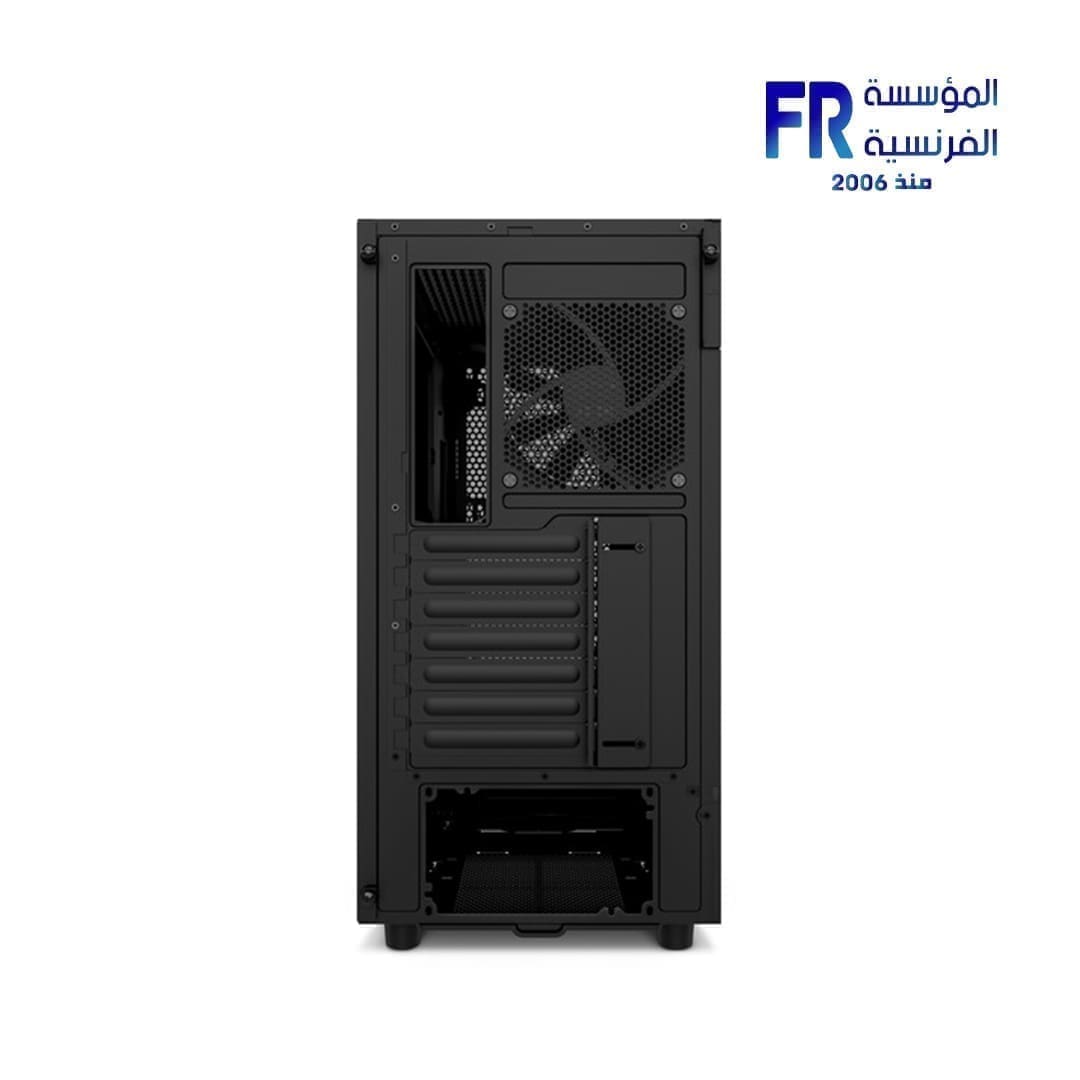

- 7 x Expansion Slots
- USB 3.2 Gen 1 & Gen 2, 3.5mm Audio
- 2 x 120mm Fans Included
- 280mm Front Radiator Support
- 6.4″ Max CPU Cooler Clearance
- 14.3″ Max GPU Clearance
متوفر في المخزون
Estimated delivery : 25th Jan - 28th Jan
| MODEL | |
|---|---|
| CASE SIZE | |
| PANEL | |
| Motherboard Type | |
| FANS INCLUDED | |
| Expansion Slots | |
| Fan Support | |
| Radiator Support | |
| GPU Length | |
| CPU Height | |
| PSU SUPPORT | |
| Pre-installed PSU | |
| I/O Ports | |
| 3.5“ Drive Bays | |
| 2.5" Drive Bays | |
| Color | |
| Part Number | |
| Warranty |
Nzxt H5 Flow 2024 Mid Tower Case
Nzxt H5 Flow 2024 Mid Tower Case
Details
The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
-

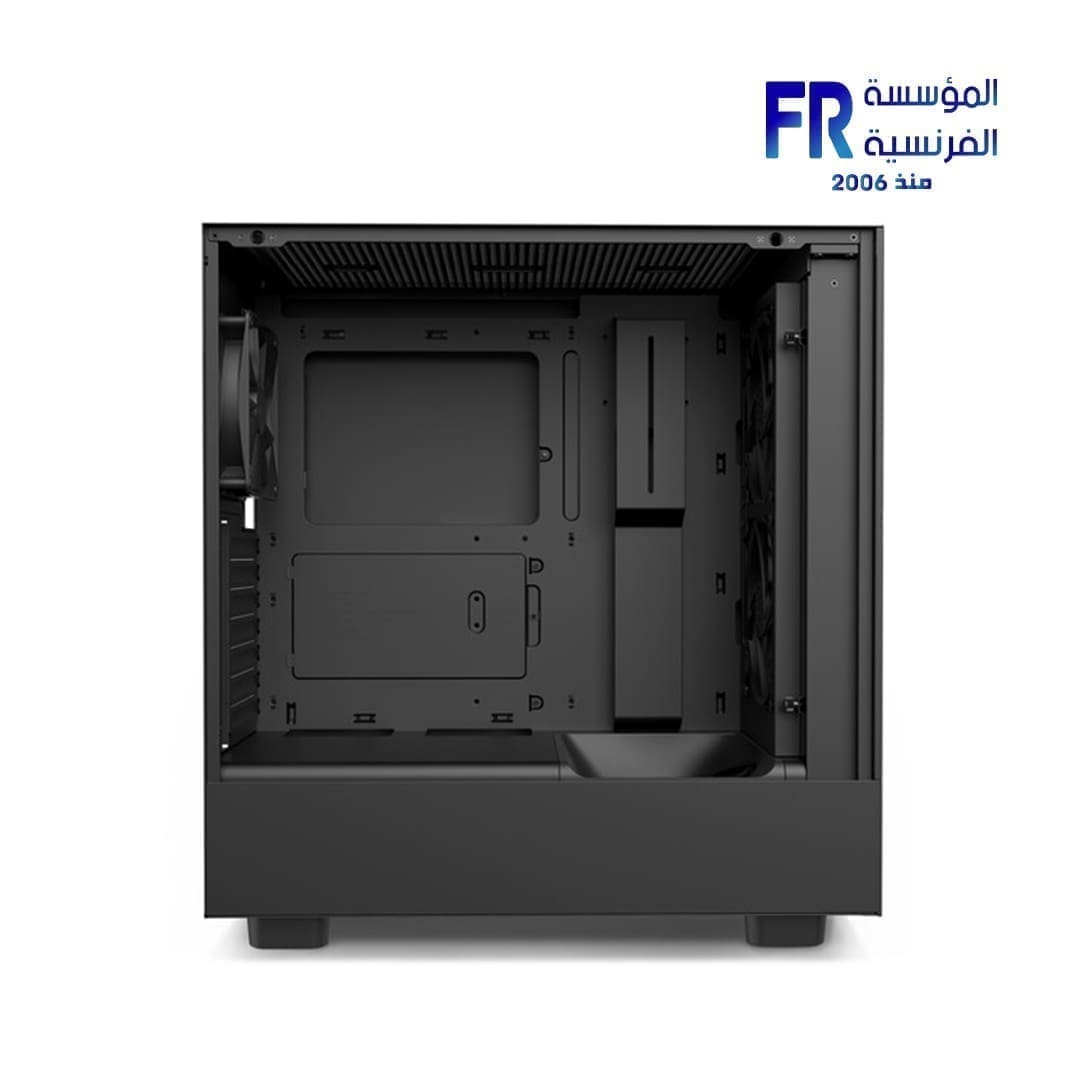

The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
-
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
-

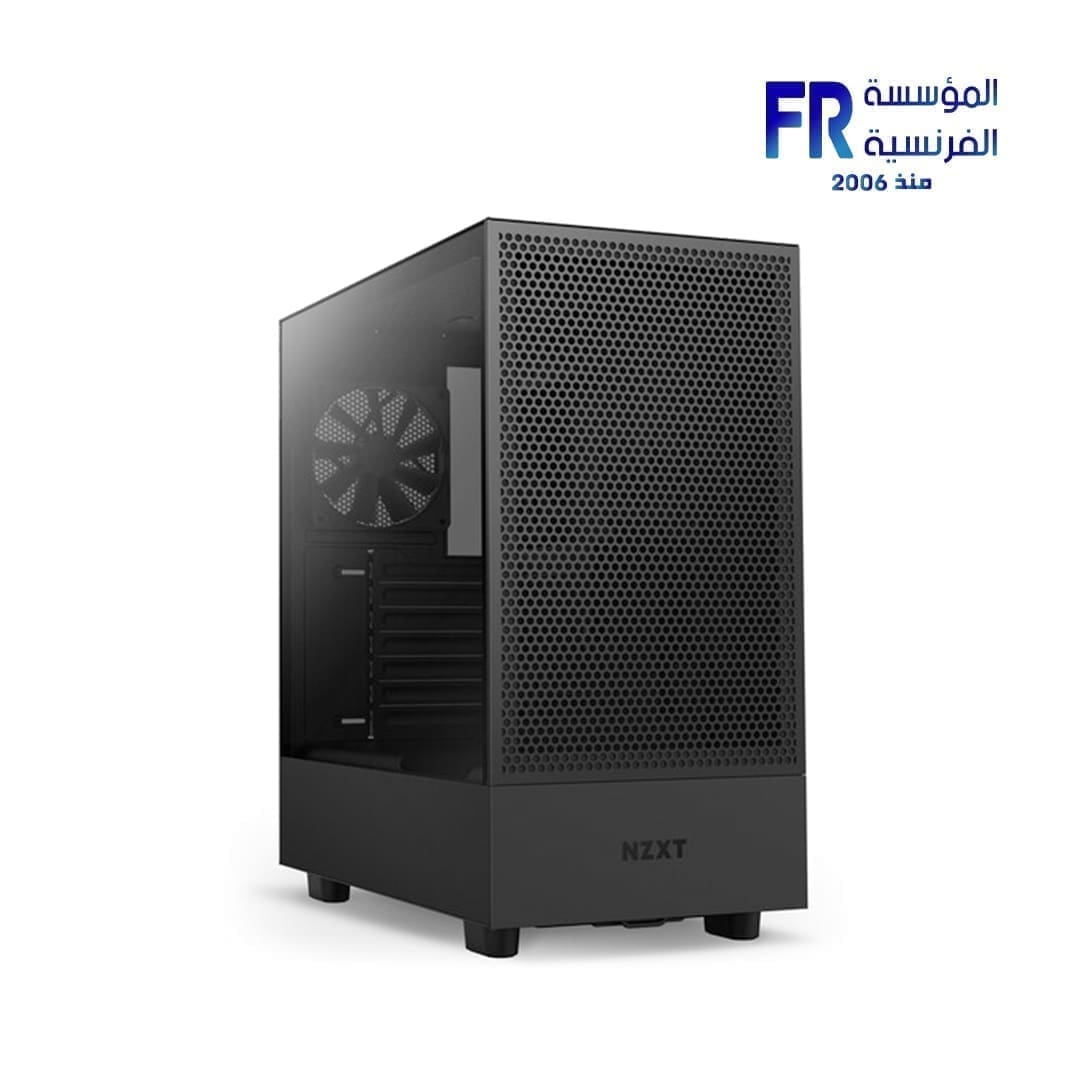

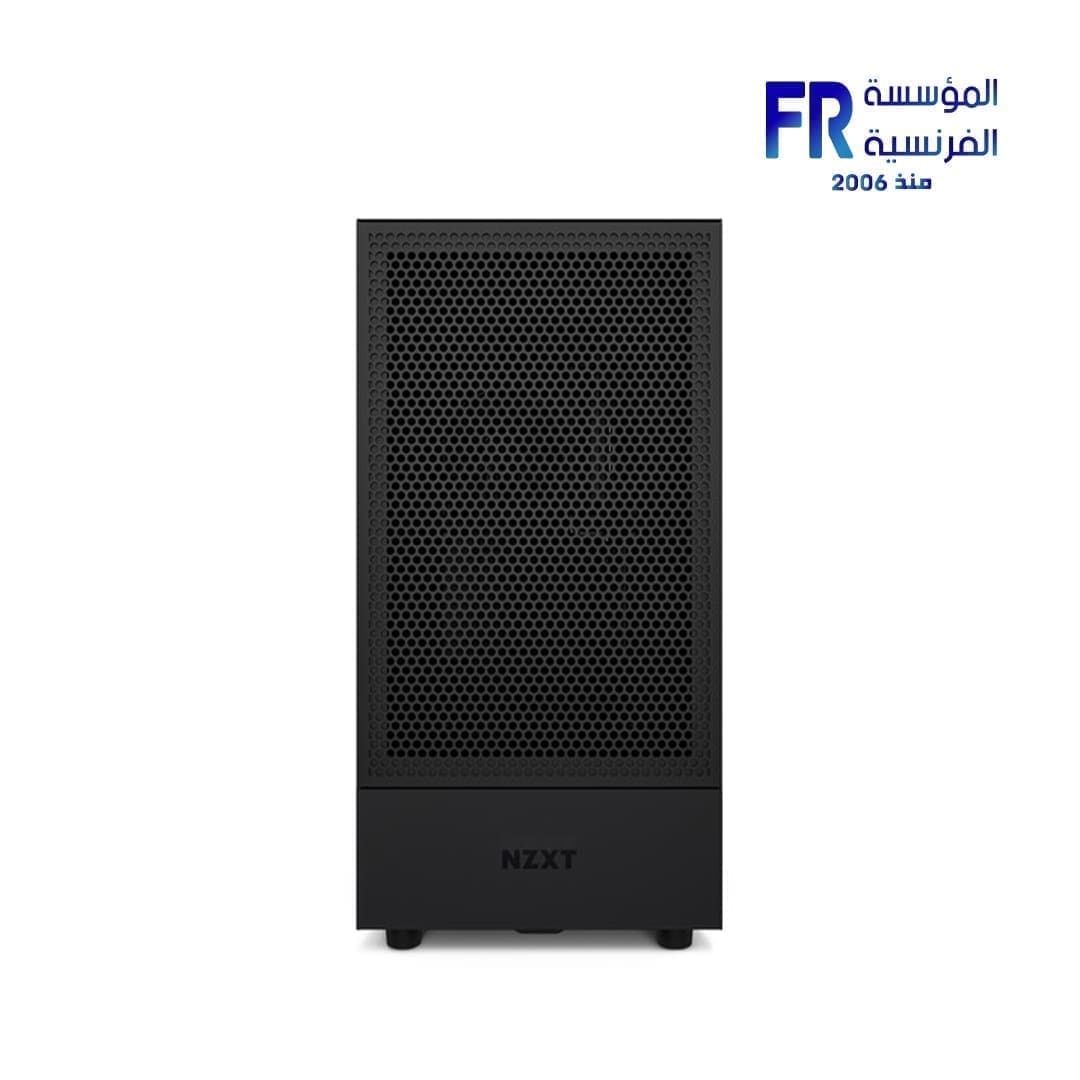

Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
-
Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.
-

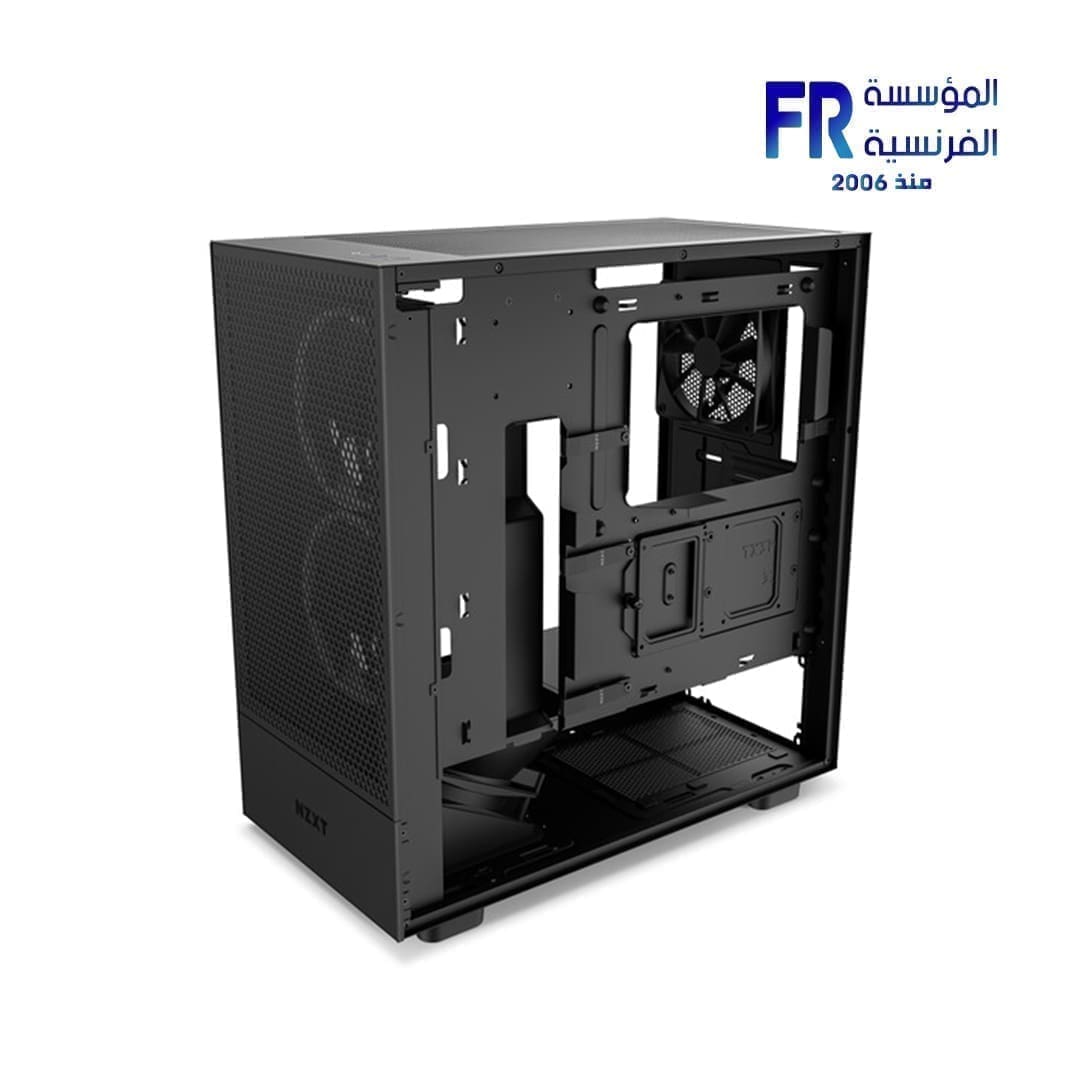

Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Inside the Box
-
H5 Flow
-
F120Q (CV)
-
Installation accessories
-
User guide
Tech Specs
Key Specs
-
Motherboard Support:E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
-
Enclosure Type:Mid-Tower
-
Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
-
Height (with feet):465 mm / 18.31 in
-
Width:225 mm / 8.86 in
-
Depth:430 mm / 16.93 in
-
Weight:7.28 kg / 16.04 lb
Compatibility & Clearance
-
CPU Cooler Height:Up to 170 mm
-
GPU Length:Up to 410 mm
-
PSU Length:Up to 200 mm
-
Cable Management:Up to 28.7 mm
-
Top Radiator:Up to 240 mm (280 mm with low-profile memory)
-
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 55 mm
Front Ports
-
USB 3.2 Type-A:1
-
USB 3.2 Gen 2×2 Type-C (20 Gbps):1
-
Headset Audio Jack:1
Expansion Slots
-
Standard:7
-
Vertical:0
Drive Bays
-
2.5″:2
-
3.5″:1
Fan Support
-
Front:3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
-
Top:2 x 120 mm / 2 x 140 mm
-
Bottom:2 x 120 mm
-
Rear:1 x 120 mm (1 x F120Q Case Version included)
Radiator Support
-
Front:Up to 360 mm
-
Top:Up to 240 mm (280mm with low-profile memory only)
Fan Specs
-
Model:F120Q (Case Version)
-
Speed:1,350 ± 150 RPM
-
Airflow:60.2 CFM
-
Static:1.05 mm-H₂O
-
Noise:24.1 dBA
-
Fan Connector:3-pin
General
-
Warranty:2 years
-
Model Number:CC-H52FB-01 (Black)
-
UPC:810074845915 (Black)
-
EAN:5056547205854 (Black)
