Thermal Grizzly Intel Lga1851 V1 Delid Die Mate Heater SPECIFICATIONS:

---

Overview

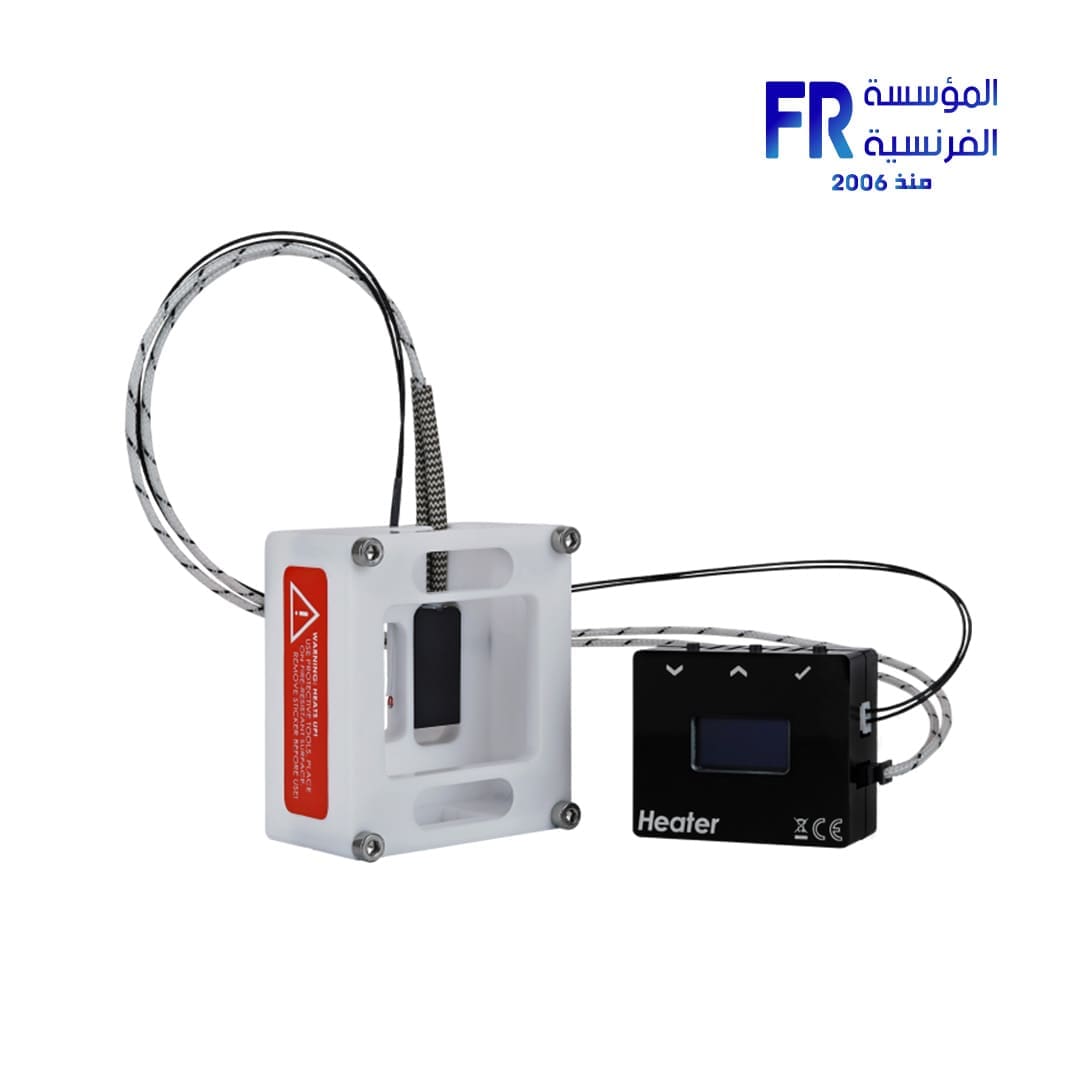

The Intel 1851 Delid-Die-Mate Heater V1 is a specialized heating element designed to assist in the safe and efficient delidding of Intel LGA 1851 CPUs. By heating both the CPU and the delidding tool to 165°C, it ensures the indium-based thermal interface material (TIM) melts properly, reducing mechanical stress during the process and minimizing the risk of damage to the processor.

---

Key Features

• Heating Element : Specifically designed to warm the CPU for delidding purposes.
• Target Temperature : 165°C , which is above the melting point of indium (157°C), ensuring smooth removal of the heat spreader.
• Control Unit : Includes an OLED display for precise temperature monitoring and control.
• Power Source : Requires a laptop/smartphone charger with at least 65W power output and a USB Type-C connector (not included).
• Compatibility : Designed exclusively for use with the Intel 1851 Delid-Die-Mate V1 .

---

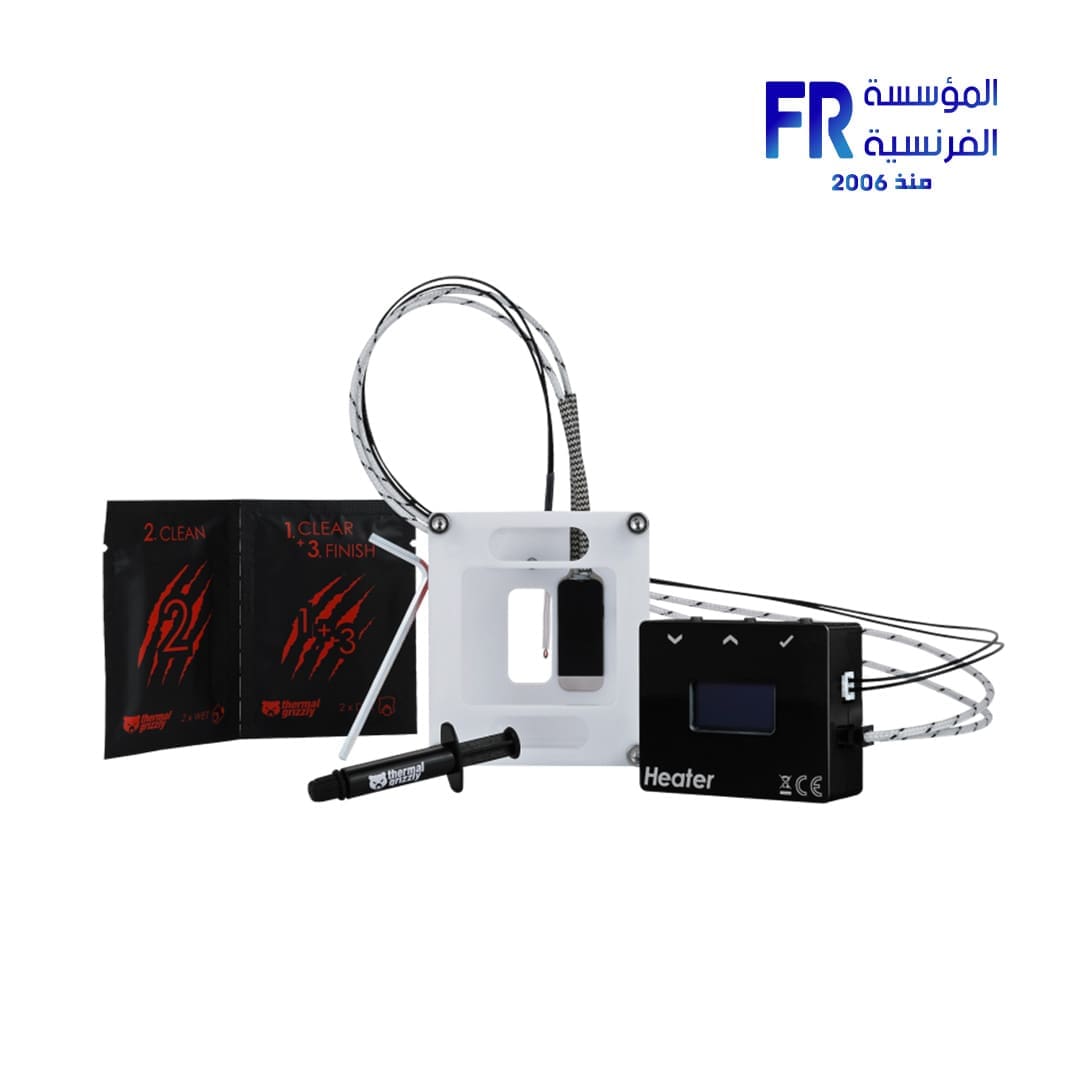

Scope of Delivery

• 1x Intel 1851 Delid-Die-Mate Heater V1
• 1x Angle Wrench
• 1x TG Cleaning Wipes
• 1x Kryonaut Thermal Paste (1g)

---

Warning Instructions

• Temperature Control : The CPU must be heated to 165°C to melt the indium-based TIM. This minimizes mechanical stress on the chip and reduces the risk of damage during delidding.
• Risk of Damage : Failure to heat the CPU adequately may result in significant mechanical stress, leading to potential damage to the processor.
• Safety Precautions : Always follow the instructions carefully and watch the instructional video available online before proceeding.

---

Operation Details

1. Setup : Connect the heater to the control unit using the provided cables. Ensure the control unit is powered by a compatible 65W+ USB-C charger (not included).
2. Preparation : Apply a small amount of thermal paste (included Kryonaut) to ensure proper heat transfer during the process.
3. Heating : Use the OLED display to monitor and maintain the target temperature of 165°C .
4. Delidding : Once the CPU and tool are sufficiently heated, proceed with the delidding process using the Intel 1851 Delid-Die-Mate V1 .

---

Included Accessories

• Angle Wrench : For securing or loosening components during the delidding process.
• TG Cleaning Wipes : Ideal for cleaning residual thermal paste or debris from the CPU surface.
• Kryonaut Thermal Paste (1g) : High-performance thermal paste for reapplying after delidding.

---

Use Cases

• Enthusiast Builds : Perfect for overclockers and enthusiasts who want to replace the factory thermal paste with higher-quality alternatives for improved thermal performance.
• CPU Maintenance : Allows users to safely remove the integrated heat spreader (IHS) for cleaning or replacing the TIM.
• DIY Repairs : Suitable for advanced users performing custom modifications or repairs on Intel LGA 1851 CPUs.

---

Important Notes

• Power Supply Requirement : A compatible USB-C charger with at least 65W power output is required but not included in the package.
• Professional Use Recommended : While the tool simplifies the delidding process, it is intended for experienced users familiar with CPU hardware.
• Follow Safety Guidelines : Always adhere to the provided warning instructions and watch the instructional video to avoid damaging your CPU.
