Thermaltake H590 Tg ARGB Snow Mid Tower Case

Name: Thermaltake H590 Tg ARGB Snow Mid Tower Case
Brand: THERMALTAKE
SKU: 841163083727
Availability: OutOfStock

5050 EGP

P/N :CA-1X4-00M6WN-00
SERIES :H Series
MODEL :H590 TG ARGB Snow
CASE TYPE :Mid Tower
DIMENSION (H X W X D) :487 x 216 x 467 mm
(19.2 x 8.5 x 18.4 inch)
NET WEIGHT :7.45 kg / 16.42 lbs.
SIDE PANEL :4mm Tempered Glass x 1
COLOR :White
MATERIAL :SPCC
COOLING SYSTEM :Front(intake): 120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1
:Rear(exhaust): 120 x 120 x 25 mm Standard fan (1100rpm, 22.5 dBA) x 1
DRIVE BAYS :2 x 3.5”, 2 x 2.5” or 4 x 2.5”
EXPANSION SLOTS :7

Out Of Stock.

Price Match Guarantee

SKU: 841163083727 Category: CASES Tags: MID TOWER CASE, ARGB, Case THERMALTAKE, MID TOWER, case, H590 TG, SNOW Brand: THERMALTAKE

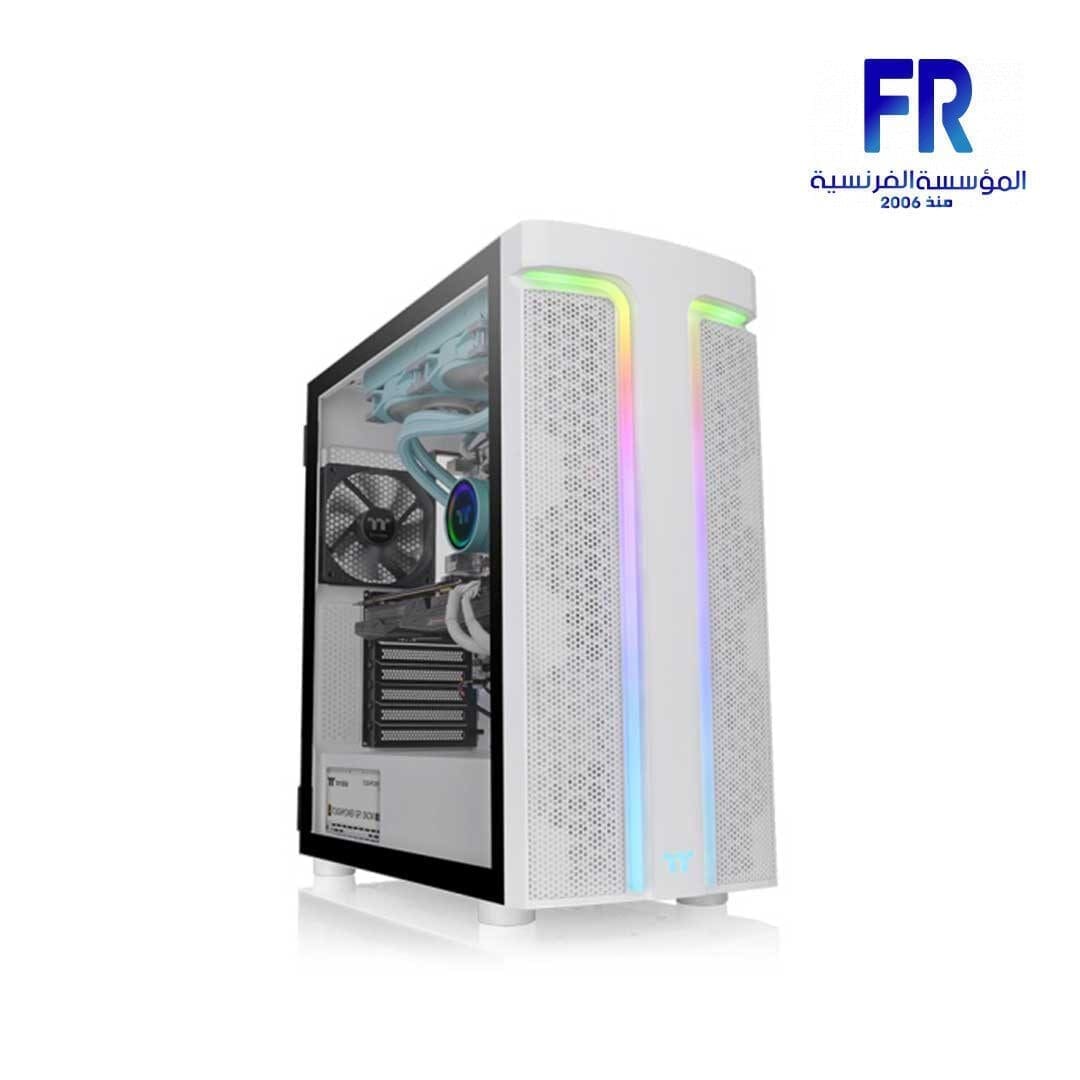

H590 TG Snow ARGB Mid-Tower Chassis

The H590 TG Snow ARGB mid-tower chassis supports up to E-ATX (12″ x 13″) Motherboards and it has a unique design on the front panel, featuring two RGB lighting strips around the T shaped pillar. Its lighting effects can be controlled by the physical RGB button on the I/O panel or motherboard software from ASUS, GIGABYTE, MSI, and ASRock. H590 TG ARGB mid-tower chassis comes with two pre-installed fans, one at the front and the other at the rear; what’s more, up to seven 120mm fans can be fitted to the chassis and up to a 360mm radiator can be placed on the top and the front of the chassis.

THERMALTAKE H590 TG

- The image is for reference only.

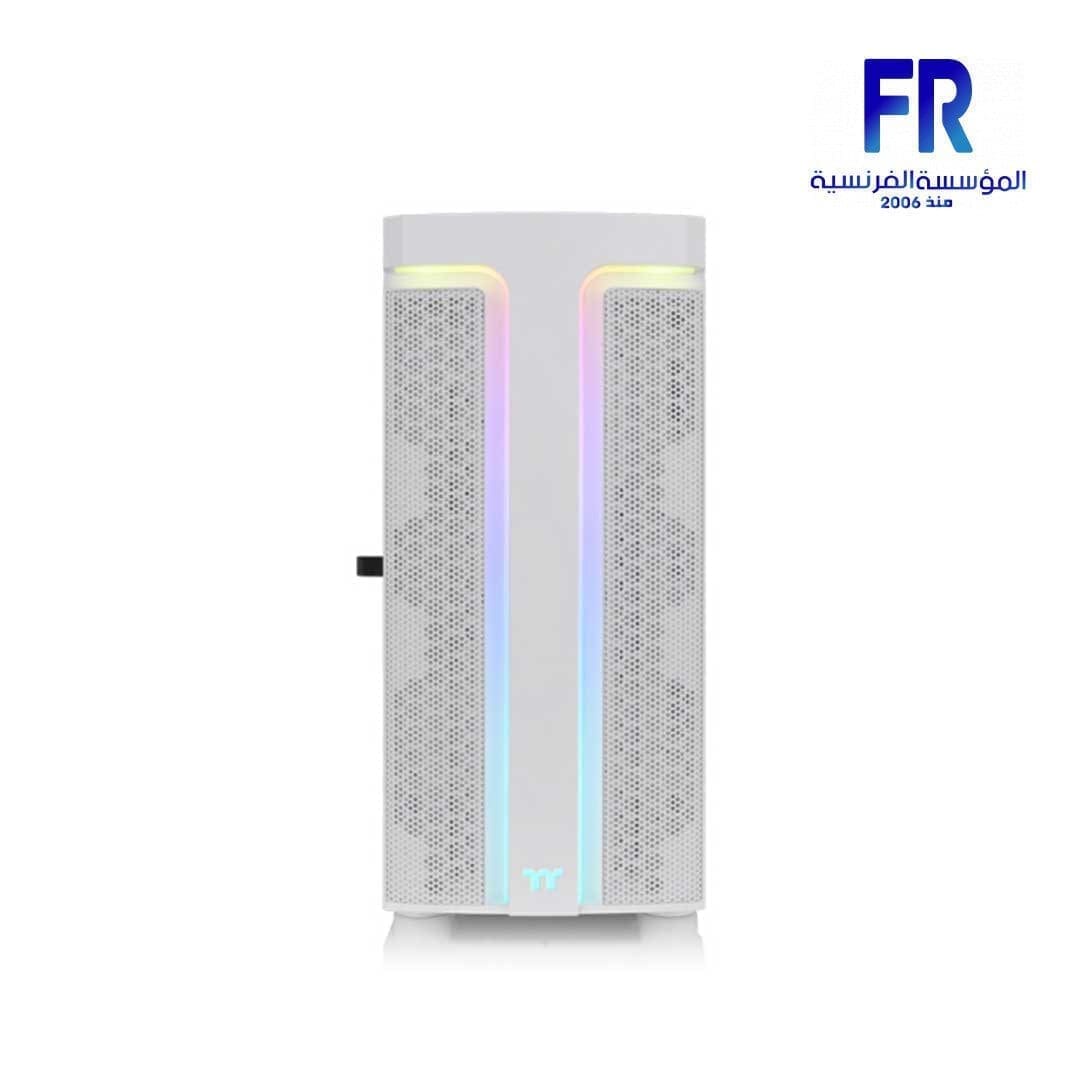

A Unique Design of the Front Panel

H590 TG Snow ARGB mid-tower chassis has a unique design of the front panel, featuring two RGB lighting strips around the T shape. Its lighting effects can be controlled by the physical RGB button on the I/O panel or motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

Pre-installed Two 120mm Standard Fans

H590 TG Snow ARGB mid-tower chassis comes with two pre-installed standard fans, one at the front and the other at the rear, delivering better cooling performance.

THERMALTAKE H590 TG ARGB SNOW MID TOWER Case

Built-in PSU Cover

H590 TG Snow ARGB mid-tower chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

THERMALTAKE H590 TG

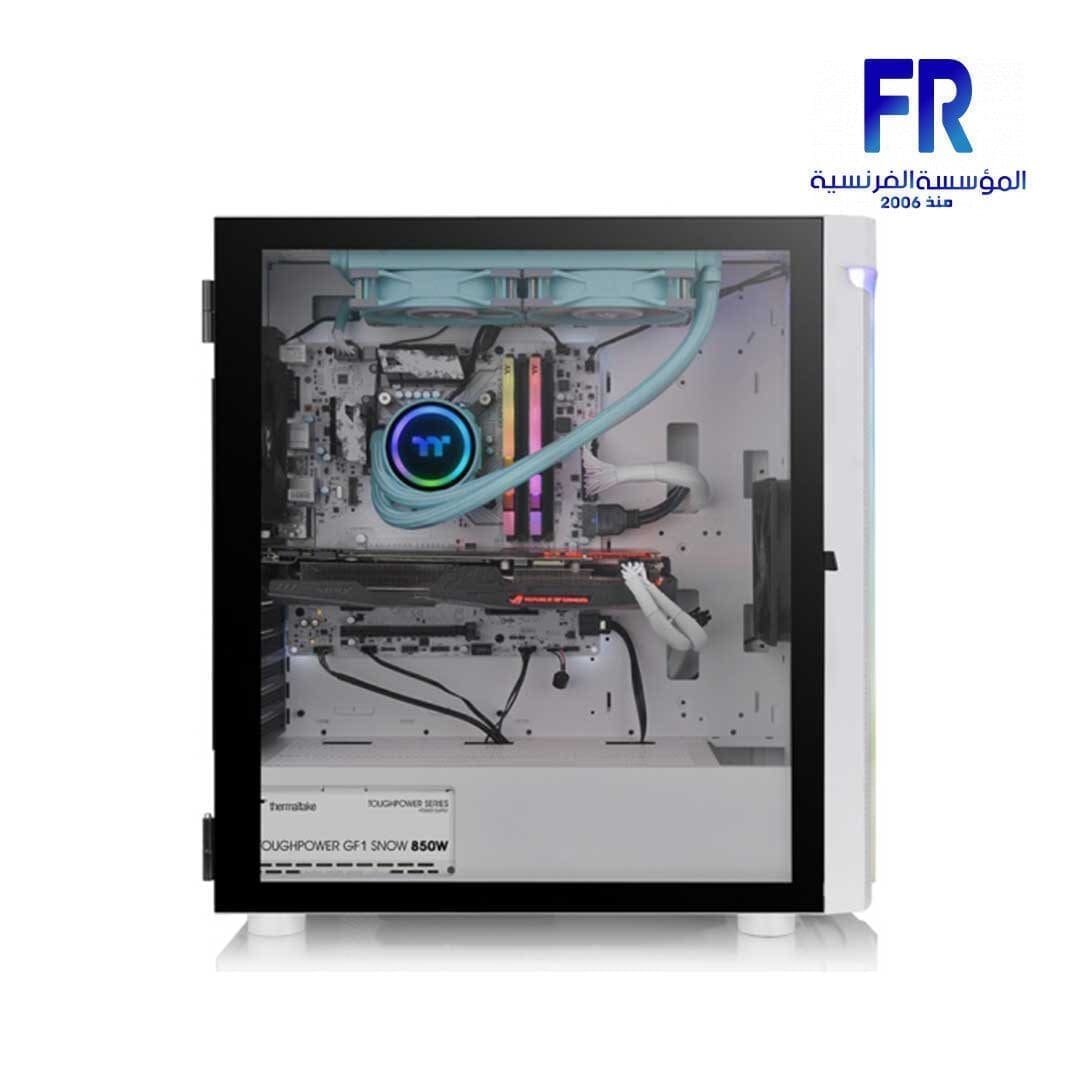

Hinged Tempered Glass Panel

The 4mm hinged tempered glass panel on the left side of the H590 TG Snow ARGB mid-tower chassis is built to be more durable, scratch resistant, and transparent for viewing the hardware.

Dust Filtration

There is one magnetic filter on the top of the chassis to provide a good dust protection.

THERMALTAKE H590 TG

Opportunities For High-End Expansion

Thermaltake H590 TG Snow ARGB mid-tower chassis has good expandability. It can support a CPU cooler with a maximum height of 160mm, VGA placement of up to 360mm in length, a power supply with a length of up to 180mm (with HDD Rack). Optimized for nice cooling capability, the case comes with two pre-installed fans at the front and at the rear; you may also choose to put three 140mm fans at the front and two 140mm fans on top. For radiator compatibility, it can support up to 360mm at the front and on top, giving more opportunities for outstanding cooling solution!

Dimensions

Fan Capacity

Radiator Capacity

CPU Cooler

Max height 160mm

Motherboard

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX)

PSU

Max length
180mm(with HDD cage)

VGA

Length limitation 360mm
(without radiator)

Handy I/O Ports

Two USB 3.0 ports, and one HD Audio and one RGB lighting control button are placed on the top panel to grant direct access when needed.

Radiator Support List

All-in-One Compatibility List
(Water 3.0 and Floe series)

	120mm	240mm	360mm	140mm	280mm	420mm
Front	●	●	●	●	●	–
Top	●	●	●	●	●	–
Rear	●	–	–	–	–	–

Fan Support List

Fan Compatibility List

	120mm	140mm	200mm
Front	3	3	–
Top	3	2	–
Rear	1	1	–

FAN SUPPORT :Front: 3 x 120mm, 2 x 120mm, 1 x 120mm
:3 x 140mm, 2 x 140mm, 1 x 140mm
:Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,
:2 x 140mm, 1 x 140mm
:Rear: 1 x 120mm

RADIATOR SUPPORT :Front: 1 x 360mm, 1 x 240mm, 1 x 120mm
:1 x 280mm, 1 x 140mm
:Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
:1 x 280mm, 1 x 140mm
:Rear: 1 x 120mm

CLEARANCE :CPU cooler height limitation: 160mm
:VGA length limitation: 360mm
:PSU length limitation: 180mm
