Thermaltake Smart RGB 700W 80 Plus Power Supply
3300 EGP
- Intel ATX 12V 2.3
- Non-Modular
- 80 PLUS Certified
- 100 – 240 V 50/60 Hz
- +3.3V@24A, +5V@17A, +12V@54A, [email protected], [email protected]
Thermaltake Smart RGB 700W 80 Plus Power Supply
Thermaltake, as the pioneer who incorporates RGB lights into PSU, has launched the Thermaltake Smart RGB Series, coming with a pre-installed RGB fan hub with 15 lighting modes to choose from and built-in memory.

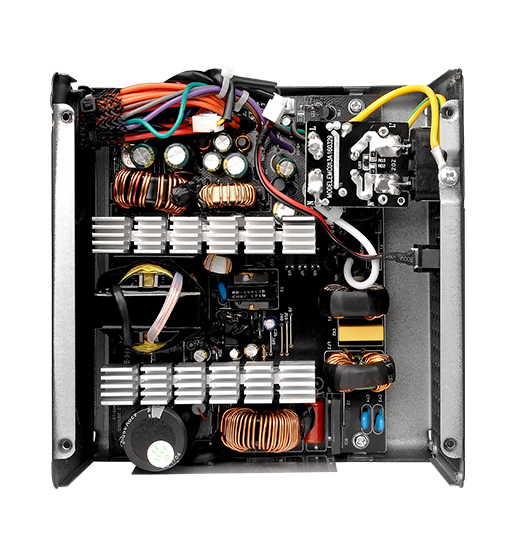

Featuring capacities ranging from 500W to 700W and 80 PLUS Standard certification, Smart RGB Series adopts the high quality components and silent design that always accommodate any mainstream build under any circumstance.
* All images are for reference only; actual specification and lighting effects are based on the real product.
One Button to Your Desired Color
THERMALTAKE SMART RGB
By pressing the RGB lighting button, the fan color can be switched among variants including Pulse Red/Green/Blue/Yellow/Purple/Light Blue/White, RGB Cycle, Solid Red/Green/Blue/Yellow/Purple/Light Blue/ White, and a LED Off mode. The fan is also constructed with a built-in memory function, saving the color applied and insuring the same color selection every time you boot your PC.
* All images are for reference only; actual specification and lighting effects are based on the real product.
10 LED Light Bulbs
THERMALTAKE SMART RGB 700W 80 PLUS POWER Supply
The Smart RGB Series adopts 10 LED light bulbs to enhance the brightness and spawn an advanced user experience in the world of illumination.
* All images are for reference only; actual specification and lighting effects are based on the real product.
Ultra Quiet 120mm Fan
THERMALTAKE SMART RGB
SMART RGB series adopt 120mm cooling fan with intelligent RPM control guarantees excellent cool performance and silent operation.
High Amperage Single +12V Rail
Smart RGB 700W White is equipped with a powerful single +12V rail, eliminating the limitations caused by voltage distributions, delivering the power your CPU and VGA demand in any situations. Providing the best compatibility, conversion efficiency and stable voltage output.

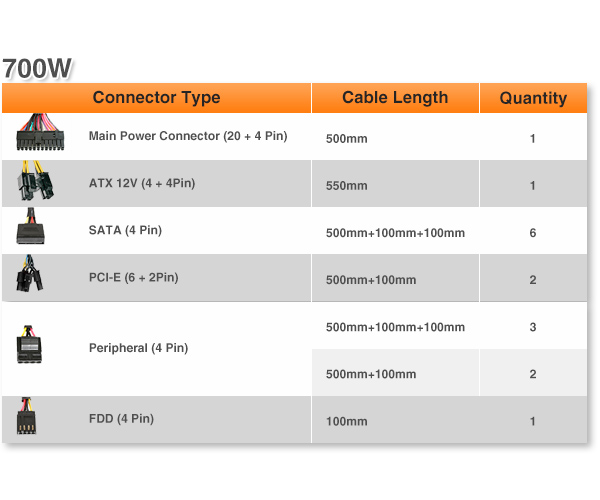

Multiple Connectors
Smart RGB offers cable selection for users while powering the system at an advantageous voltage. Further, the multiple connectors make cable installation an easy task.
THERMALTAKE SMART RGB
80 PLUS Certified and Kaby Lake Ready
Deliver up to 87% efficiency under real world load conditions to promise low power losses. Additionally, Smart RGB Series has been optimized to work with Intel’s latest, seventh-generation Kabylake processors to achieve maximum energy saving.
RGB Lighting Provides Best Aesthetics for All Chassis
Smart RGB Series is the best idea for users to go with when they are looking for an RGB PSU which permits remarkable functionality and aesthetics in all cases, especially Open Frame or Tower cases.
PS-SPR-0700NHSAWU-1
WATTS
700W
RGB FAN
Yes
FORM FACTOR
ATX
MODEL
SPR-700AH2NK-2
TYPE
Intel ATX 12V 2.3
MAX. OUTPUT CAPACITY
700W
COLOR
Black
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-500 msec
HOLD UP TIME
16msec (minimum) within 60% load
INPUT CURRENT
9A max
INPUT FREQUENCY RANGE
50 Hz – 60 Hz
INPUT VOLTAGE
230 Vac
OPERATING TEMPERATURE
5℃ to +40℃
OPERATING HUMIDITY
20% to 85%,non-condensing
STORAGE TEMPERATURE
-40 ℃ to +55 ℃
STORAGE HUMIDITY
10% to 95%, non-condensing
COOLING SYSTEM
120mm Fan: 1800 R.P.M. ± 10%
EFFICIENCY
82-86% efficiency @ 20-100% load
MTBF
100,000 hrs minimum
SAFETY APPROVAL
CE/CB/TUV/ EAC
