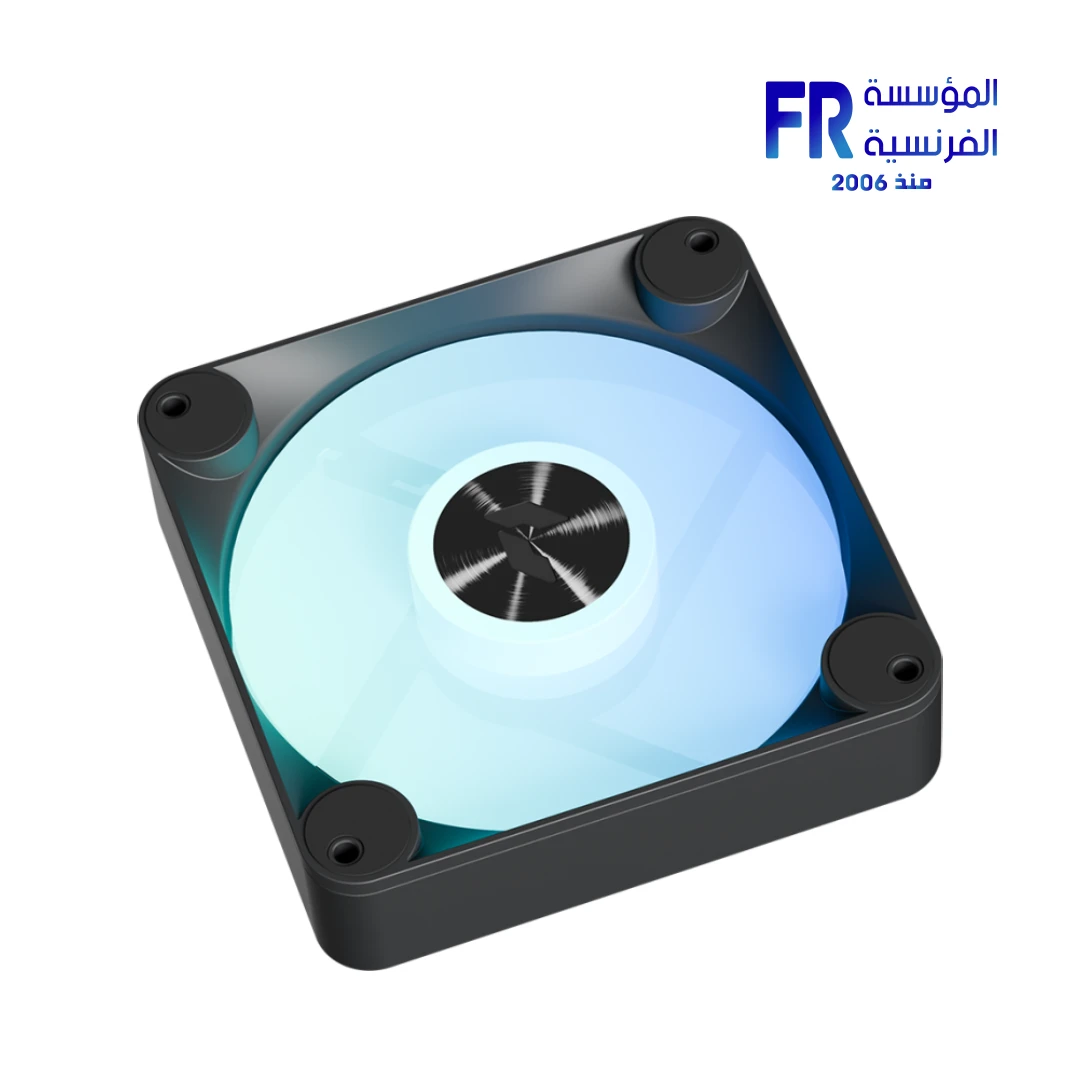

Apnx FP1-R 120mm 1600 RPM Hydraulic Bearing Reverse Blade PWM ARGB Black 3 Fans

Apnx FP1-R 120mm 1600 RPM Hydraulic Bearing Reverse Blade PWM ARGB Black 3 Fans

1299 EGP

Part Number: FP1-R 120-3 Pack BK
Type: 120mm Reverse Blade PWM ARGB Case Fans (3-Pack)
Frame Thickness: 30mm (delivers 30-50% better cooling vs. standard 25mm fans)
Performance: Up to 1600 RPM, 74.6 CFM airflow, 2.26 mmH₂O static pressure, 33.2 dBA max noise
Bearing: Hydraulic Bearing with 60,000 hours MTBF for quiet, durable operation
Lighting & Control: ARGB via 3-pin 5V header + PWM speed control via 4-pin connector
Warranty: 1 Year

In stock

Price Match Guarantee

SKU: 810189570450 Category: Case Fans Tags: gaming, REVERSE BLADE, R, 30mm Thick, ARGB, High Airflow, FP1-R 120-3 Pack BK, 1600RPM, BLACK, 3-pack, 810189570450, 120MM, quiet, FP1, 120, hydraulic bearing, BK, Pwm, 30mm, Apnx, FP1 Series, PC Cooling, PWM Argb, 120mm Case Fan Brand: Apnx

APNX FP1-R 120mm 1600 RPM Hydraulic Bearing Reverse Blade PWM ARGB Black 3 Fans

The APNX FP1-R 120mm Reverse Blade Fan facilitates enhanced cooling performance with a 30mm thick frame design that delivers 30-50% better airflow than standard 25mm fans. Specifically engineered for professionals who demand superior thermal management and customizable RGB aesthetics in intake-optimized configurations, it bridges the gap between complexity and reliable performance.

30mm

Thickness

1600

RPM

86.9

CFM

Fans Pack

Why the APNX FP1-R is the Elite Choice for Professionals

30mm Performance Architecture

The increased 30mm frame thickness accommodates larger fan blades that deliver 30-50% better cooling performance compared to standard 25mm fans. Consequently, this design achieves an impressive 86.9 CFM airflow at up to 1600 RPM while maintaining efficient heat dissipation for high-performance components.

Reverse Blade Intake Optimization

The reverse blade configuration is specifically designed for intake applications where the aesthetic side of the fan faces inward. Furthermore, this allows professionals to maintain clean airflow dynamics while showcasing the elegant ARGB lighting from the optimal viewing angle in custom PC builds.

Comprehensive Technical Specifications

Feature	Detailed Specification
Model Name	APNX FP1-R 120mm 1600 RPM Hydraulic Bearing Reverse Blade PWM ARGB Black 3 Fans
Model Number	FP1-R 120-3 Pack BK
Fan Dimensions	120 × 120 × 30 mm (30mm thick frame)
Fan Speed	PWM 500-1600 RPM ±10%
Air Flow	74.6 CFM (120mm) / 86.9 CFM (140mm variant)
Air Pressure	2.26 mmH₂O (120mm) / 1.67 mmH₂O (140mm variant)
Noise Level	33.2 dBA (120mm) / 32.9 dBA (140mm variant)
Bearing Type	Hydraulic Bearing
MTBF	60,000 hours
Connector Type	PWM 4-pin + ARGB 5V 3-pin
Rated Voltage	12V DC
Rated Current	0.4A
Power Consumption	4.8W per fan
Fan Starting Voltage	5V
Blade Design	Reverse blade configuration optimized for intake applications
Lighting	ARGB with on/off control capability
Mounting	Ultra thick shock-absorbing pads included for secure installation
Color Options	Black or White (this pack: Black)
Package Contents	3× FP1-R 120mm fans, mounting hardware, shock-absorbing pads
Warranty	1 Year Limited Warranty

FAQ

What is the advantage of the 30mm thickness over standard 25mm fans?

The 30mm frame thickness accommodates larger fan blades that move significantly more air per revolution. Consequently, this design delivers 30-50% better cooling performance compared to standard 25mm fans while maintaining similar noise levels. However, ensure your case or radiator has sufficient clearance for the additional 5mm thickness before installation.

When should I use reverse blade fans instead of standard fans?

Reverse blade fans are ideal for intake applications where you want the aesthetic side (with ARGB lighting) to face inward toward your components. Standard fans show their motor hub when used for intake, whereas reverse blade fans display the full blade design and lighting. This is particularly useful for bottom intake, side intake, or front intake positions in showcase builds.
