Asus Dual GeForce RTX 4070 Evo OC 12GB GDDR6 Graphic Card

Asus Dual GeForce RTX 4070 Evo OC 12GB GDDR6 Graphic Card

---

Asus Dual GeForce RTX 4070 Evo OC 12GB GDDR6 Graphic Card SPECIFICATIONS:

---

Overview

The ASUS DUAL-RTX4070-O12GD6-EVO is a high-performance graphics card powered by the NVIDIA® GeForce RTX™ 4070 GPU. Designed for gamers, creators, and professionals, this card delivers exceptional AI performance, ray tracing capabilities, and efficient cooling with its dual-fan design. With 12GB of GDDR6 memory and a robust cooling solution, it is an excellent choice for 1440p gaming and demanding workloads like video editing and 3D rendering.

---

Key Features

• GPU Engine : NVIDIA® GeForce RTX™ 4070
• AI Performance : Up to 475 TOPS (Tera Operations Per Second).
• Memory : 12GB GDDR6 with a 192-bit memory interface .
• Engine Clock :
  • OC Mode: 2550 MHz (Boost)
  • Default Mode: 2520 MHz (Boost)
• CUDA Cores : 5888 for enhanced parallel processing.
• Maximum Resolution : Supports up to 7680 x 4320 (8K) digital resolution.

---

Technical Specifications

• Bus Standard : PCI Express 4.0
• OpenGL Support : OpenGL® 4.6
• HDCP Support : Yes (2.3)

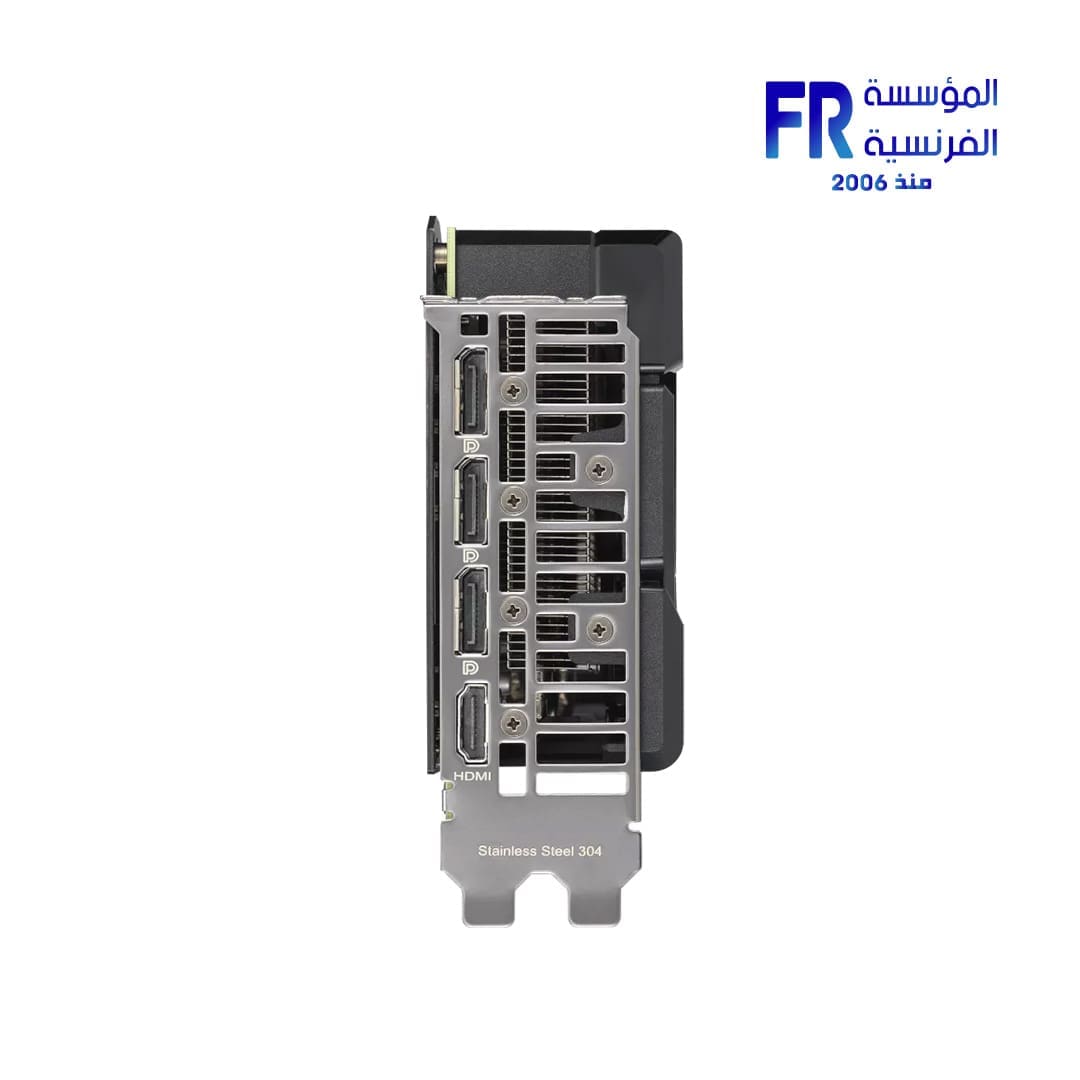

• Display Outputs :
  • 1 x Native HDMI 2.1a
  • 3 x Native DisplayPort 1.4a
• Maximum Display Support : 4 displays simultaneously .
• NVLink/Crossfire Support : No
• Power Connectors : 1 x 8-pin PCIe power connector .
• Recommended PSU : 650W or higher.

---

Dimensions

• Physical Size :
  • 227.2 x 123.24 x 49.6 mm
  • 8.94 x 4.85 x 1.95 inches
• Slot Occupancy : 2.5 slots .
• SFF Ready : Compatible with Small Form Factor (SFF) systems.

---

Included Accessories

• Speedsetup Manual : Quick setup guide for easy installation.
• Thank You Card : A note of appreciation from ASUS.

---

Software Support

• ASUS GPU Tweak III : Advanced utility for fine-tuning performance, monitoring temperatures, and customizing fan curves.
• GeForce Drivers : Includes support for both Game Ready Driver (optimized for gaming) and Studio Driver (tailored for creative applications).
  • Note : All software must be downloaded from the official ASUS support site.

---

Performance Highlights

• AI Acceleration : Leverages NVIDIA’s advanced AI technology with 475 TOPS of performance for tasks like DLSS (Deep Learning Super Sampling) and real-time ray tracing.
• CUDA Cores : The 5888 CUDA cores provide exceptional compute power for gaming, rendering, and AI workloads.
• High-Speed Memory : 12GB GDDR6 ensures smooth performance in memory-intensive applications like 3D modeling, video editing, and high-resolution gaming.

---

Use Cases

• Gaming : Delivers smooth 1440p gaming with ray tracing and DLSS support for immersive visuals.
• Content Creation : Ideal for video editors, graphic designers, and 3D artists who need reliable performance and large memory capacity.
• Small Form Factor Builds : Compact and SFF-ready design makes it suitable for mini-ITX builds without compromising on performance.

---

Installation Tips

1. Power Supply Check : Ensure your PSU has at least 650W capacity and includes the required 8-pin PCIe power connector .
2. Clearance Verification : Confirm that your case has sufficient space to accommodate the 2.5-slot design and 227.2 mm length .
3. Driver Installation : Download and install the latest GeForce Game Ready Driver or Studio Driver from the ASUS support site for optimal performance.
4. Cooling Optimization : Use ASUS GPU Tweak III to adjust fan curves and monitor temperatures for long-term stability.

---

Important Notes

• NVLink Support : This model does not support NVLink or SLI configurations.
• Multi-Monitor Setup : Supports up to 4 displays simultaneously via HDMI and DisplayPort outputs.
• SFF Compatibility : While SFF-ready, ensure your case meets the required dimensions and airflow specifications for proper operation.

---

Safety and Disclaimer

• Warning : Mishandling during installation may result in hardware damage. Always follow the provided instructions carefully.
• Disclaimer : ASUS is not responsible for damage caused by improper installation, overclocking, or inadequate system cooling.

---
