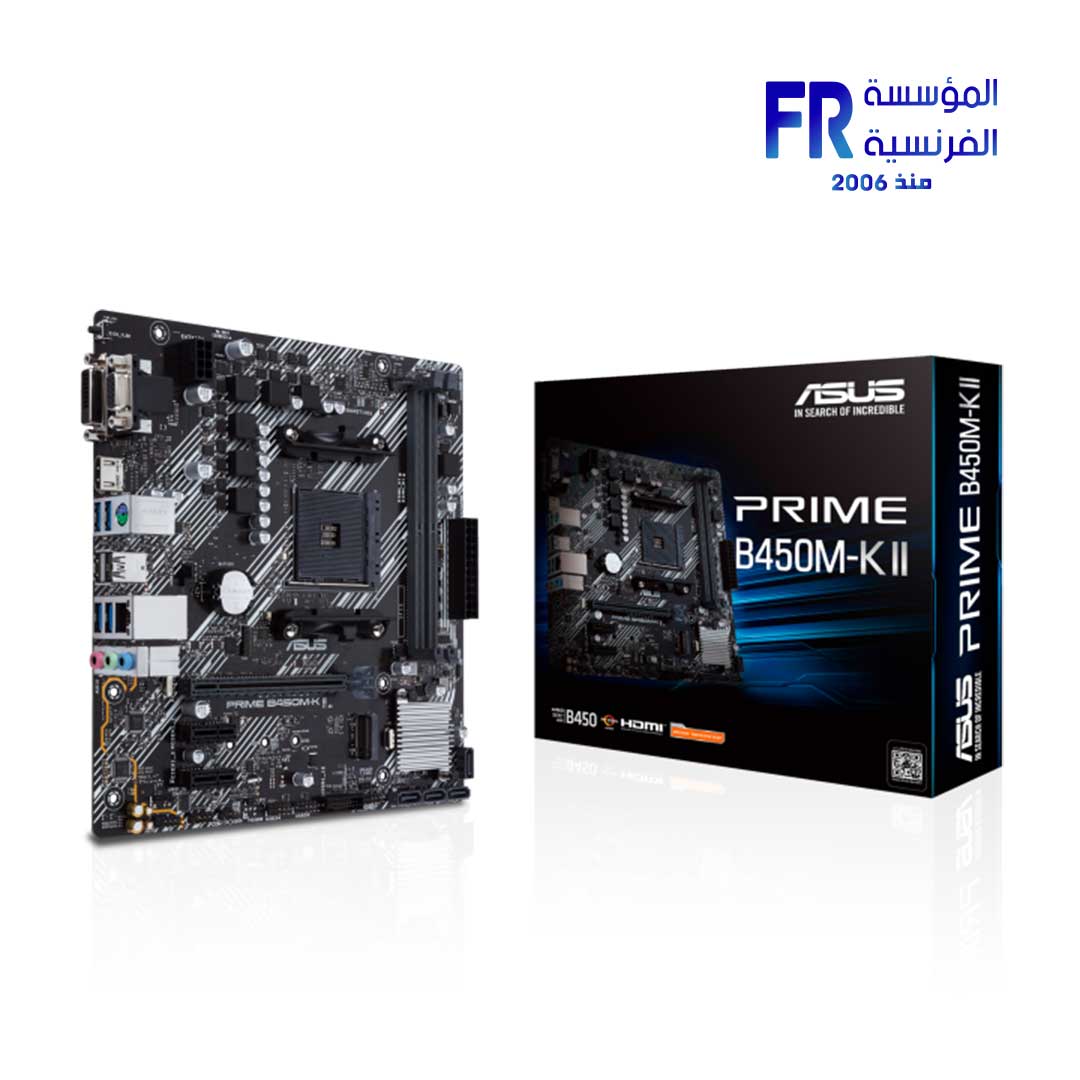

Asus Prime B450M K II DDR4 Motherboard

• Model

  PRIME B450M-K II

• CPU

  AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
  * Refer to www.asus.com for CPU support list

• Chipset

  AMD B450

• Memory

  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  2 x DIMM, Max. 64GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.

• Graphic

  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
  1  x D-Sub
  1  x DVI-D
  1  x HDMI™ port
  *Graphics specifications may vary between CPU types.

• Expansion Slots

  3rd/2nd/1st Gen AMD Ryzen™ Processors
  1 x PCIe 3.0 x16 (x16 mode)
  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x8 mode)
  AMD Athlon™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x4 mode)
  AMD B450 chipset
  2 x PCIe 2.0 x1

• Storage

  Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  Athlon™ with Radeon™ Vega Graphics Processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
  AMD B450 chipset :
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10

• LAN

  Realtek® RTL8111H
  ASUS LANGuard

• Audio

  Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *
  – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
  – LED-illuminated design
  – Audio Shielding
  – Dedicated audio PCB layers
  – Premium Japanese audio capacitors
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

• USB Ports

  Rear USB Port ( Total 6  )
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6  )
  2 x USB 3.2 Gen 1 port(s)
  4 x USB 2.0 port(s)

• Software Features

  ASUS Exclusive Software
  Armoury Crate
  AI Suite 3
  – Performance and Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  Fan Xpert
  PC Cleaner
  – EZ update
  – System Information
  ASUS CPU-Z
  AI Charger
  ASUS EZ Installer
  DAEMON Tools
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode

• ASUS Special Features

  ASUS 5X PROTECTION III
  – ASUS DIGI+ VRM
  – ASUS LANGuard
  – ASUS Overvoltage Protection
  – ASUS SafeSlot Core
  – ASUS Stainless-Steel Back I/O
  ASUS Q-Design
  – ASUS Q-DIMM
  – ASUS Q-Slot
  ASUS Thermal Solution
  – Aluminum heatsink design
  ASUS EZ DIY
  – BIOS FlashBack™ button
  – BIOS FlashBack™ LED
  ASUS Lighting Control

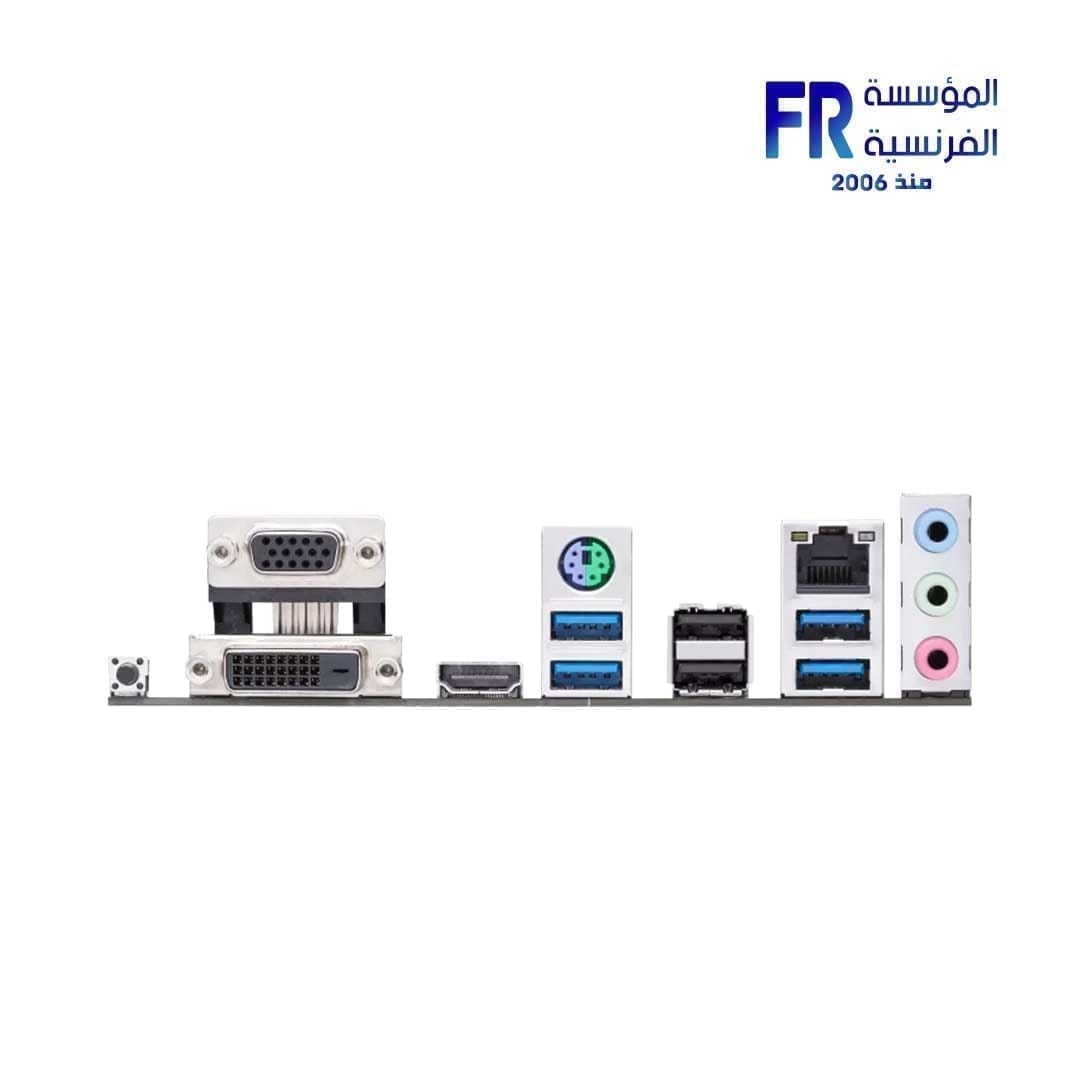

• Back I/O Ports

  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.2 Gen 1 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)
  1 x BIOS FlashBack^™ Button(s)

• Internal I/O Ports

  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x SPI TPM header
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x COM port header
  1 x Speaker connector

• Accessories

  User´s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Anchor
  1 x Supporting DVD

• BIOS

  256 Mb Flash ROM, UEFI AMI BIOS

• Operating System

  Windows® 10 64-bit
  Windows® 7 64-bit *

• Form Factor

  mATX Form Factor
  8.9  inch x 8.7  inch ( 22.6  cm x 22.1  cm )

• Note

  *To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
