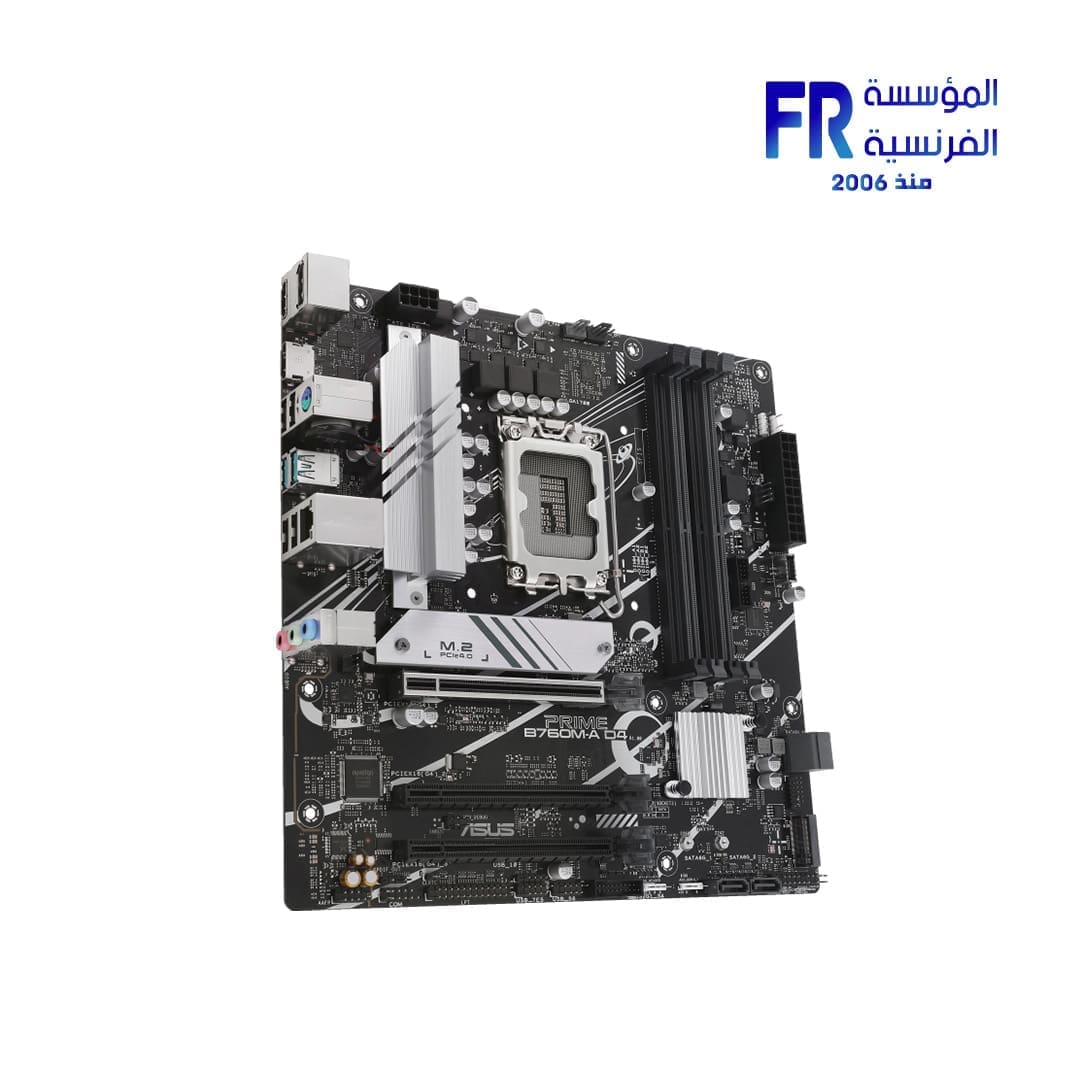

Asus Prime B760M A D4 Csm Motherboard

Asus Prime B760M A D4 Csm Motherboard

---

Asus Prime B760M A D4 Csm Motherboard specifications:

---

Model:

• PRIME B760M-A D4-CSM

---

CPU:

• Socket: Intel® LGA1700
• Supported Processors:
  • Intel® Core™ 14th, 13th, and 12th Gen
  • Pentium® Gold and Celeron® Processors
• Technologies Supported:
  • Intel® Turbo Boost Technology 2.0
  • Intel® Turbo Boost Max Technology 3.0 (depends on CPU type)

---

Chipset:

• Intel® B760 Chipset

---

Memory:

• DIMM Slots: 4 x DIMM
• Max Capacity: 128GB
• Memory Type: DDR4
• Supported Speeds (OC):
  • 5333/5066/5000/4800/4600/4400/4266/4000/3733/3600/3466/3400/3333 MHz
• Native Speeds:
  • 3200/3000/2933/2800/2666/2400/2133 MHz
• Architecture: Dual Channel Memory
• Features:
  • Intel® Extreme Memory Profile (XMP)
  • OptiMem II

---

Graphics:

• Ports:
  • 1 x DisplayPort (supports 4K@60Hz, DisplayPort 1.4)
  • 2 x HDMI® ports (support 4K@60Hz, HDMI® 2.1)
• Note: Graphics specifications vary depending on the CPU type.

---

Expansion Slots:

• PCIe Slots (Intel® Core™ Processors):
  • 1 x PCIe 4.0 x16 slot
• PCIe Slots (Intel® B760 Chipset):
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x16 slot (supports x1 mode)

---

Storage:

• Total Storage Ports:
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• M.2 Slots:
  • M.2_1: Supports PCIe 4.0 x4 mode (2242/2260/2280)
  • M.2_2: Supports PCIe 4.0 x4 mode (2242/2260/2280)
• RAID Support:
  • Intel® Rapid Storage Technology supports RAID 0/1/5/10

---

Ethernet:

• Controller: Realtek 2.5Gb Ethernet

---

USB:

• Rear USB Ports (6 Total):
  • 2 x USB 3.2 Gen 2 Type-A
  • 4 x USB 2.0 Type-A
• Front USB Ports (10 Total):
  • 2 x USB 3.2 Gen 1 headers (supports 4 additional USB 3.2 Gen 1 ports)
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)
  • 1 x USB 2.0 header (supports 1 additional USB 2.0 port)

---

Audio:

• Codec: Realtek 7.1 Surround Sound High Definition Audio
• Features:
  • Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Up to 24-Bit/192 kHz playback
• Hardware Features:
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers

---

Back Panel I/O Ports:

• USB Ports:
  • 2 x USB 3.2 Gen 2 Type-A
  • 4 x USB 2.0 Type-A
• Video Ports:
  • 1 x DisplayPort
  • 2 x HDMI® ports
• Other Ports:
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port

---

Internal I/O Connectors:

• Fan Headers:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 2 x 4-pin Chassis Fan headers
• Power Connectors:
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
• Storage Connectors:
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis Intrusion function

---

Special Features:

• ASUS 5X PROTECTION III:
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • Stainless-Steel Back I/O
• ASUS Q-Design:
  • Q-DIMM
  • Q-LED Core
  • Q-Slot
• ASUS Thermal Solution:
  • M.2 Heatsink
  • VRM Heatsink Design
• ASUS EZ DIY:
  • ProCool
• Aura Sync:
  • Aura RGB header
  • Addressable Gen 2 headers

---

Software Features:

• ASUS Exclusive Software:
  • Armoury Crate (includes Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving)
  • AI Suite 3 (includes Digi+ VRM, PC Cleaner)
  • ASUS CPU-Z
  • Norton Deluxe (60 Days Free Trial)
  • WinRAR
• UEFI BIOS Features:
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

---

BIOS:

• Flash ROM: 128 Mb
• Type: UEFI AMI BIOS

---

Manageability:

• Features:
  • WOL by PME
  • PXE

---

Accessories:

• Cables:
  • 2 x SATA 6Gb/s cables
• Miscellaneous:
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 1 x Screw package for M.2 SSD
• Documentation:
  • 1 x ACC Express Activation Key Card
  • 1 x User Guide

---

Operating System:

• Supported OS:
  • Windows® 11
  • Windows® 10 64-bit

---

Form Factor:

• Type: mATX
• Dimensions:
  • 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

---

• Intel^® LGA 1700 Socket: Ready for 13^th and 12^th Gen Intel^® processors
• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C^®
• Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
