ASUS ProArt PA602 Wood Edition Modern Black Metal Panel E-ATX Full Tower Case

✅ Authorized ASUS Partner in Egypt | Official 1-Year Warranty | Expert PC Building Consultation Available

⚡ Engineering Highlights at a Glance:

• FSC-Certified Walnut Wood Front: Six-stage thermowood process protects the wood from insects, humidity, and heat while adding a glossy finish.
• Metal Side Panel: Prioritizes cooling and durability over tempered glass; also supports wood handles rated for up to 30 kg.

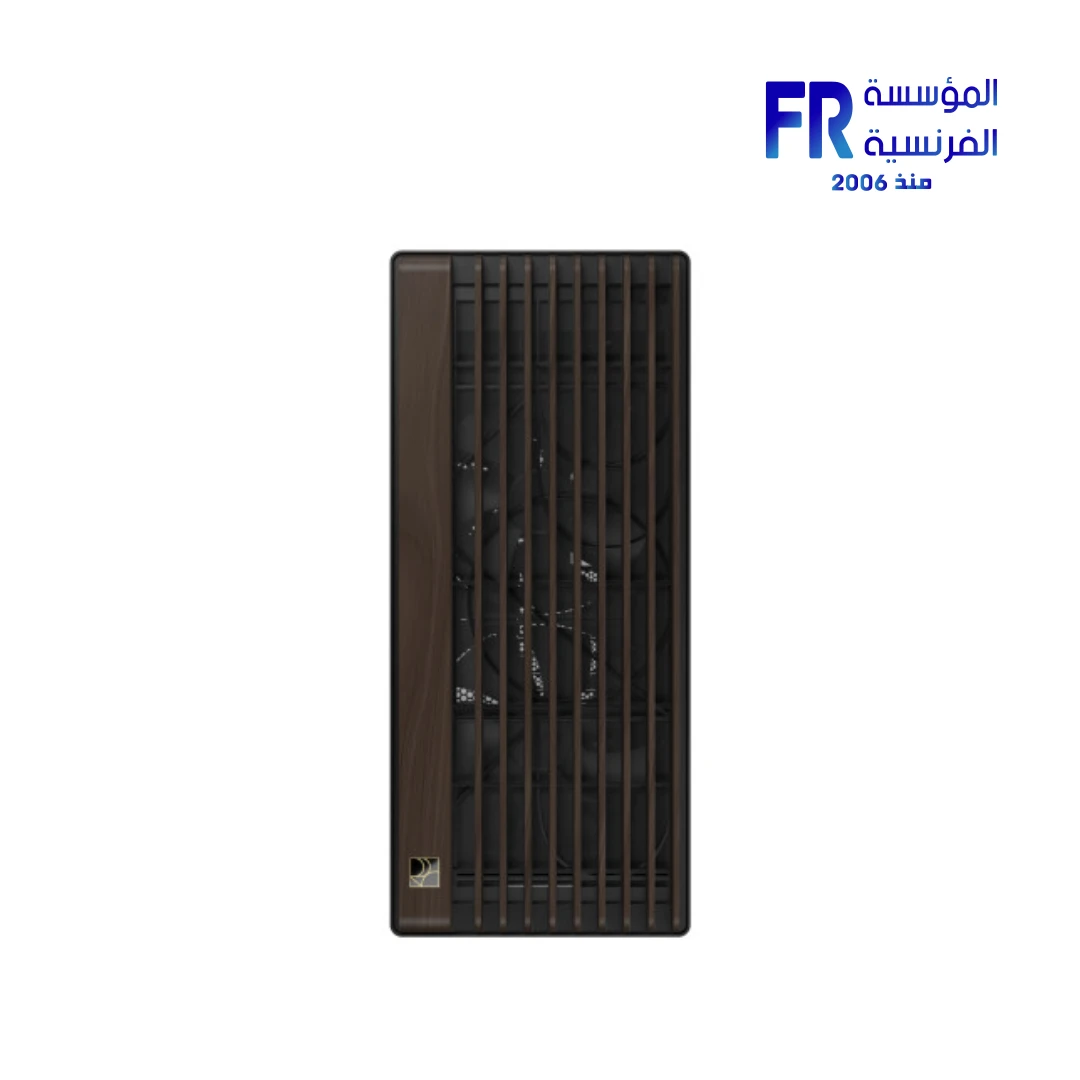

• High-Porosity Front Grille: Open front panel lets air move freely; dual air deflectors centralize cool air for GPU and CPU cooler intake.
• Thicker Pre-installed PWM Fans: Two 200 x 38mm front fans plus one 140 x 28mm rear fan deliver high airflow with low noise.
• 420mm Top Radiator Support: Fits 120/140/240/280/360/420mm radiators for AIO or custom liquid cooling loops.
• Creator-Friendly Features: Tool-free GPU slot clamp, automatic dust detection, built-in wheels, one-stop PWM fan hub, and power lock latch.

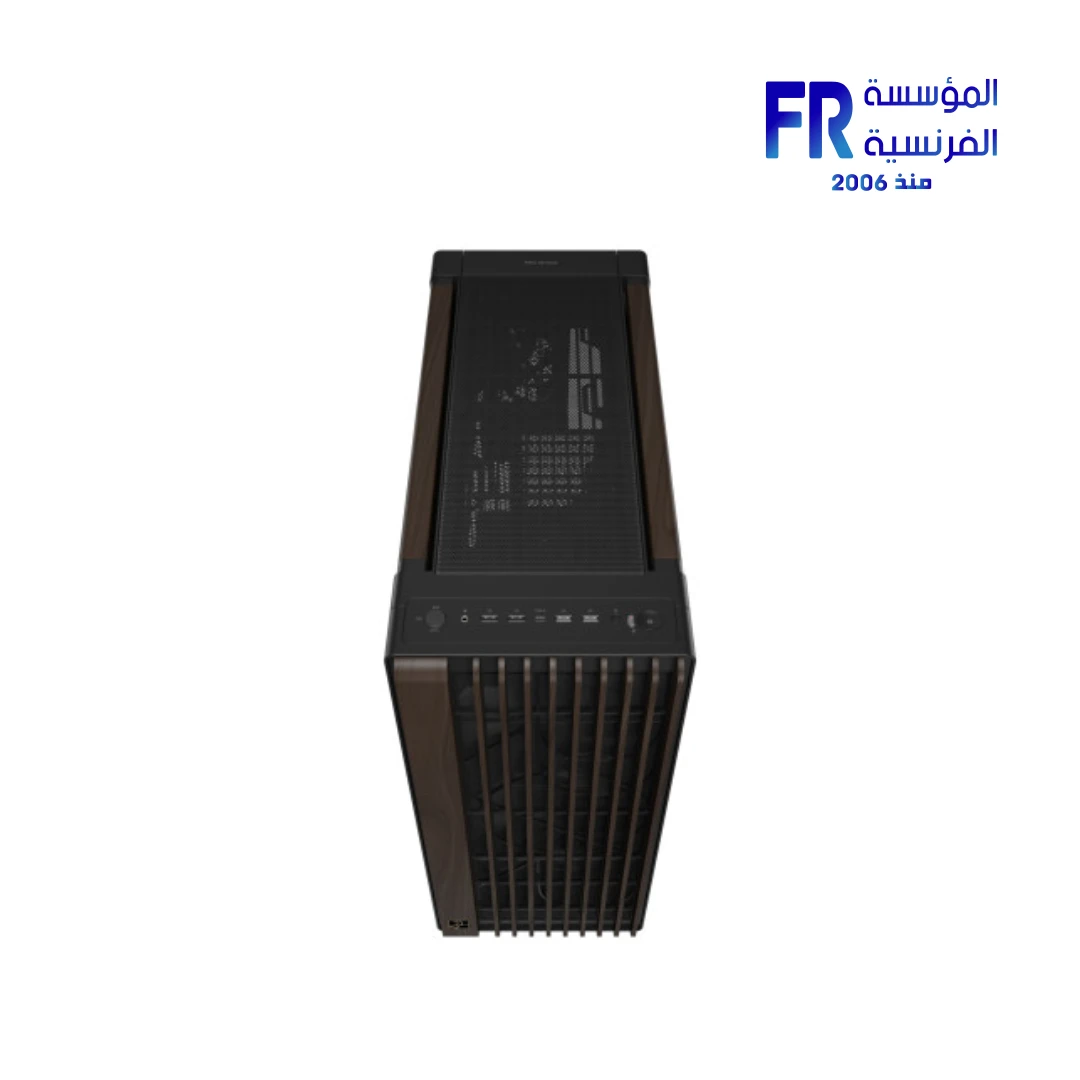

• Modern Front I/O: USB 3.2 Gen 2×2 Type-C (20Gbps), two USB 3.2 Gen 1, two USB 2.0, fan control button, and reset button.

Desk and Floor Space Requirements

The case measures 593 x 560 x 245mm and weighs 15.8 kg empty. Therefore, check that your desk or floor area can take the full 560mm height before you buy. On a desk, the case takes up a lot of depth. On the floor, keep the bottom dust filters easy to reach for cleaning. Because the case has two built-in wheels, you can roll it on hard floors instead of lifting it. The front I/O sits on the top edge, so leave vertical space for cables and USB access.

Cooling and Radiator Configuration

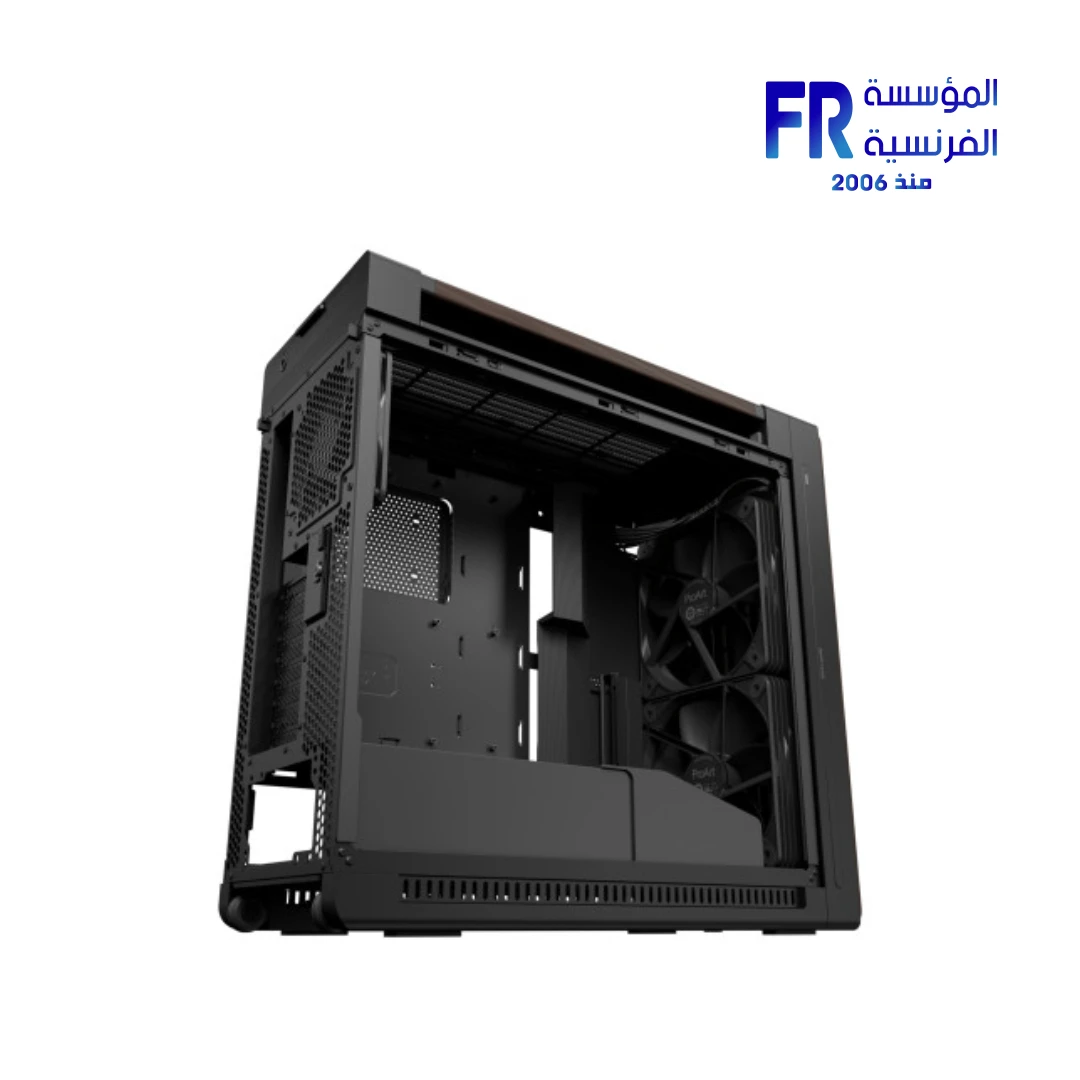

Top radiator support runs from 120 to 420mm, so 360mm and 420mm AIOs fit in most builds. However, check your radiator’s thickness and fan layout against the case’s top clearance, especially with tall VRM heatsinks on E-ATX boards. Front cooling is limited to the two pre-installed 200mm fans; other sizes need adapters, since 200 x 38mm is the native format. Rear exhaust takes one 120mm or 140mm fan. Also, the fan control button on the front I/O lets you switch fan profiles without opening the BIOS, and the integrated PWM fan hub simplifies wiring multiple fans.

Storage, Cable Management, and Wood Care

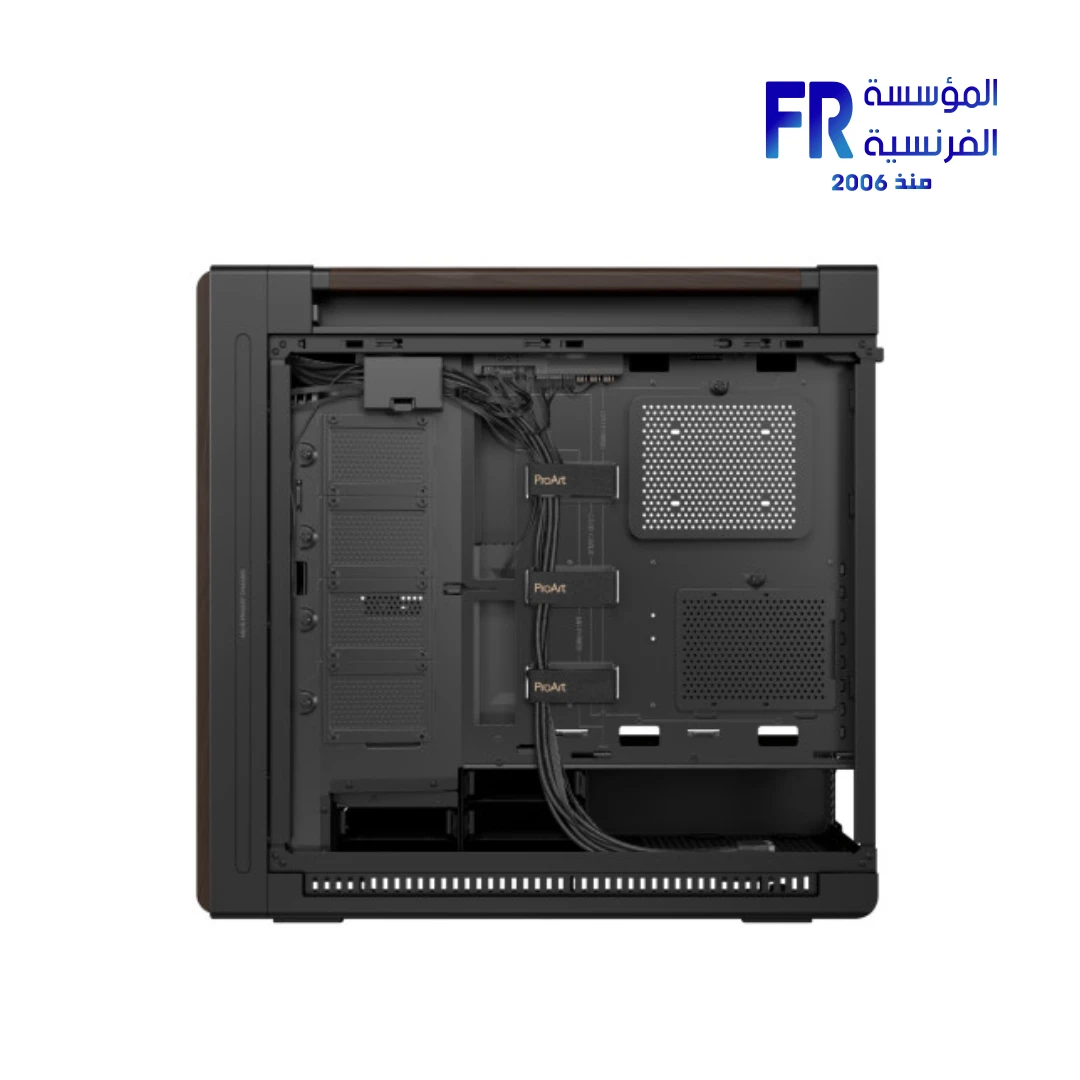

The case holds up to four 3.5-inch HDDs or eight 2.5-inch SSDs, so you can mix hard drives and SSDs to fit your storage needs. Meanwhile, 30mm of cable space behind the motherboard tray takes thick PSU cables and fan hubs. The tool-free design makes panel removal and drive installs easy, and the removable dust filters on the front, top, and bottom make cleaning quick. For the wood front, wipe with a dry or slightly damp cloth only; avoid solvents or abrasive cleaners because they can dull the six-stage coating. Also, note that natural wood varies in texture, so each unit has a slightly distinct finish.

Plan your parts around the case’s clearance: GPUs up to 440mm horizontally or 125mm vertically, CPU air coolers up to 185mm, and PSUs up to 190mm. For liquid cooling, a 360mm or 420mm AIO fits on the top, while front cooling uses the two pre-installed 200mm fans.

Install the PSU first and route the main 24-pin and CPU 8-pin cables before you mount the motherboard. That way, you can use the 30mm cable space behind the tray without fighting tight corners. Because the case has an integrated PWM fan hub, connect all case fans to the hub and route a single PWM cable to the motherboard.

For airflow, keep the front intake fans on a positive-pressure curve with the fan control button. Add top exhaust or a top radiator only if your GPU and CPU workloads need it. Also, position the dual air deflectors to direct cool air toward the GPU and CPU cooler intake.

Clean the front, top, and bottom dust filters every few months so airflow stays steady. Also, check your motherboard’s front-panel USB-C header before you count on the 20Gbps Type-C port. Because the case weighs 15.8 kg empty, use the built-in wheels to move it on hard floors instead of lifting it, and pick its final spot before you build.
