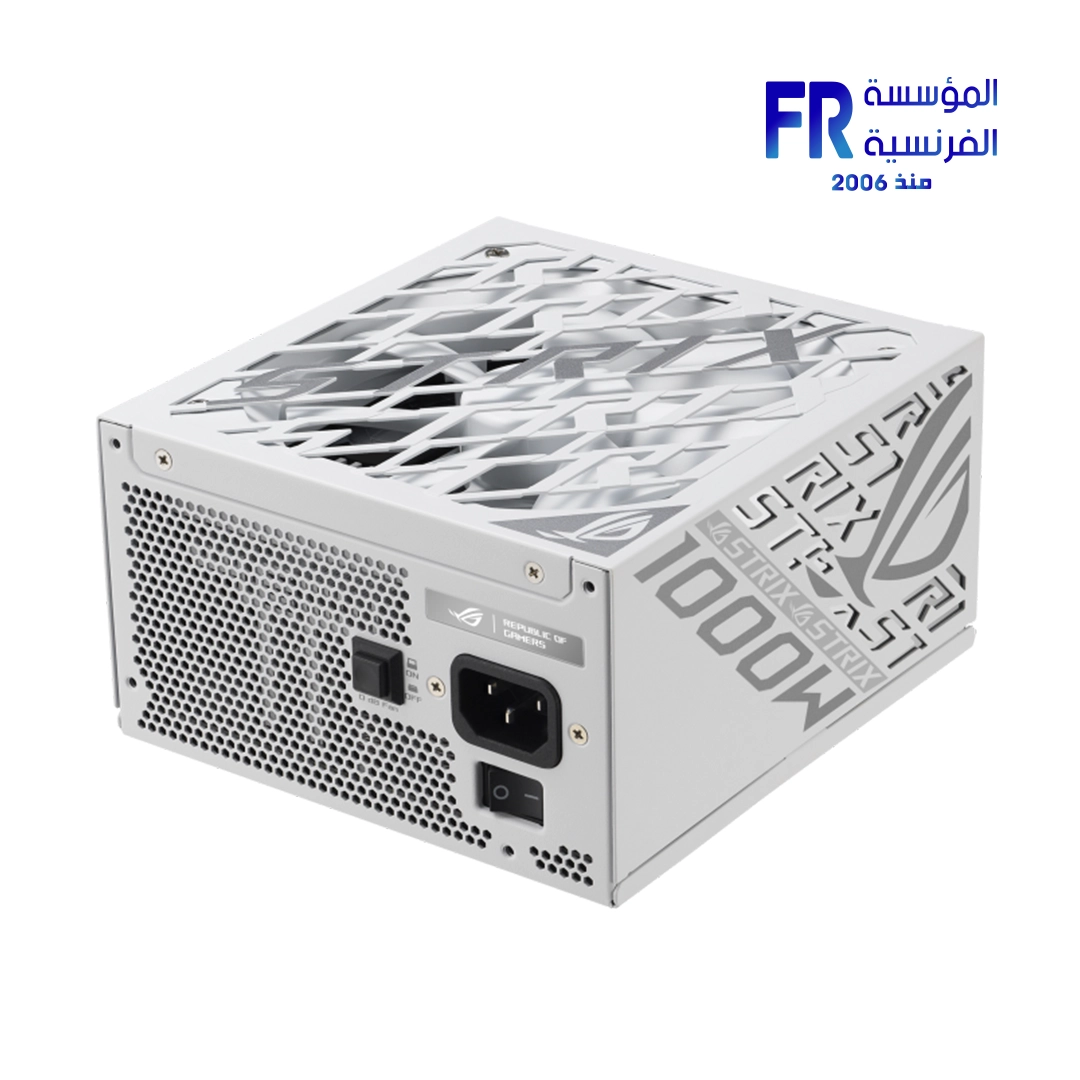

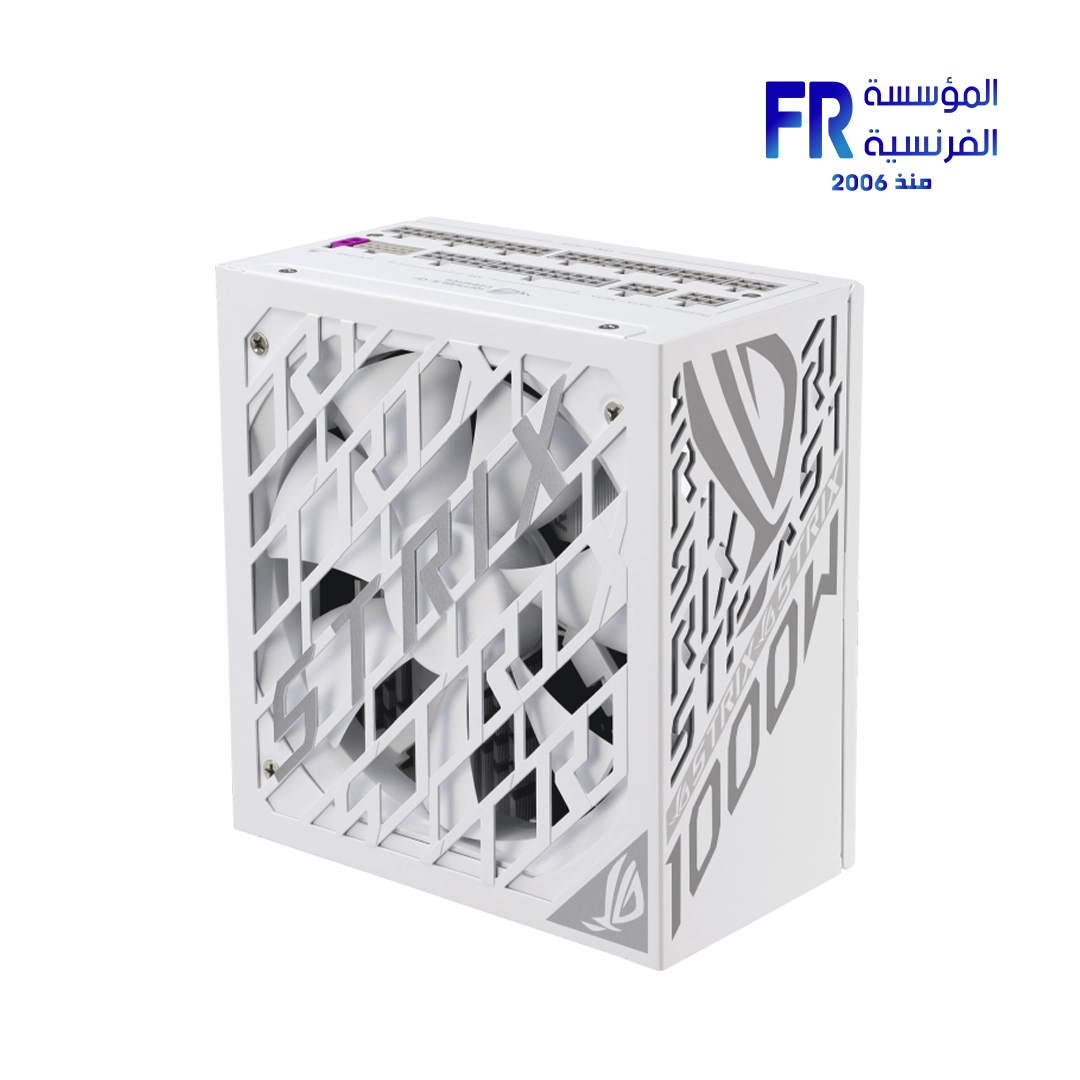

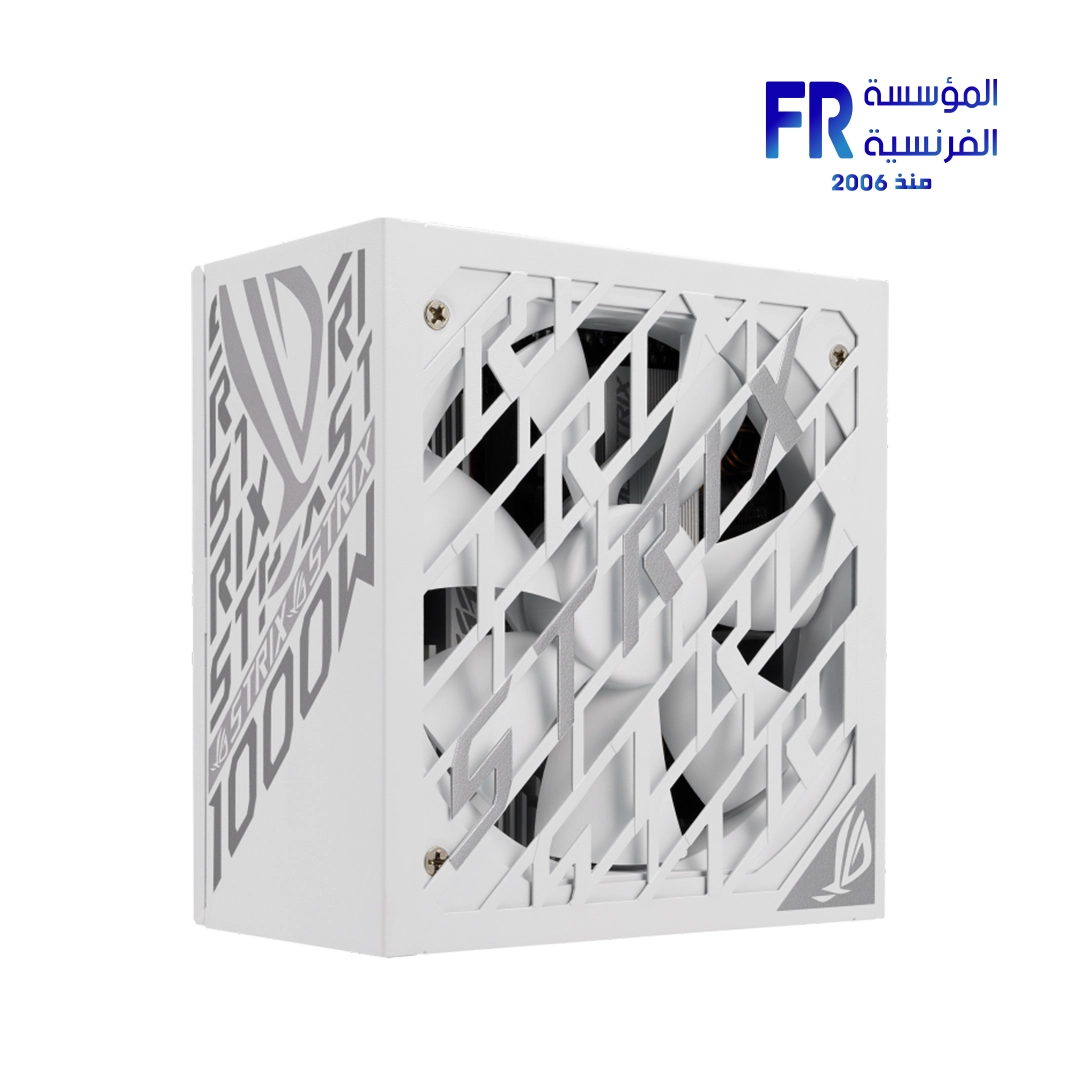

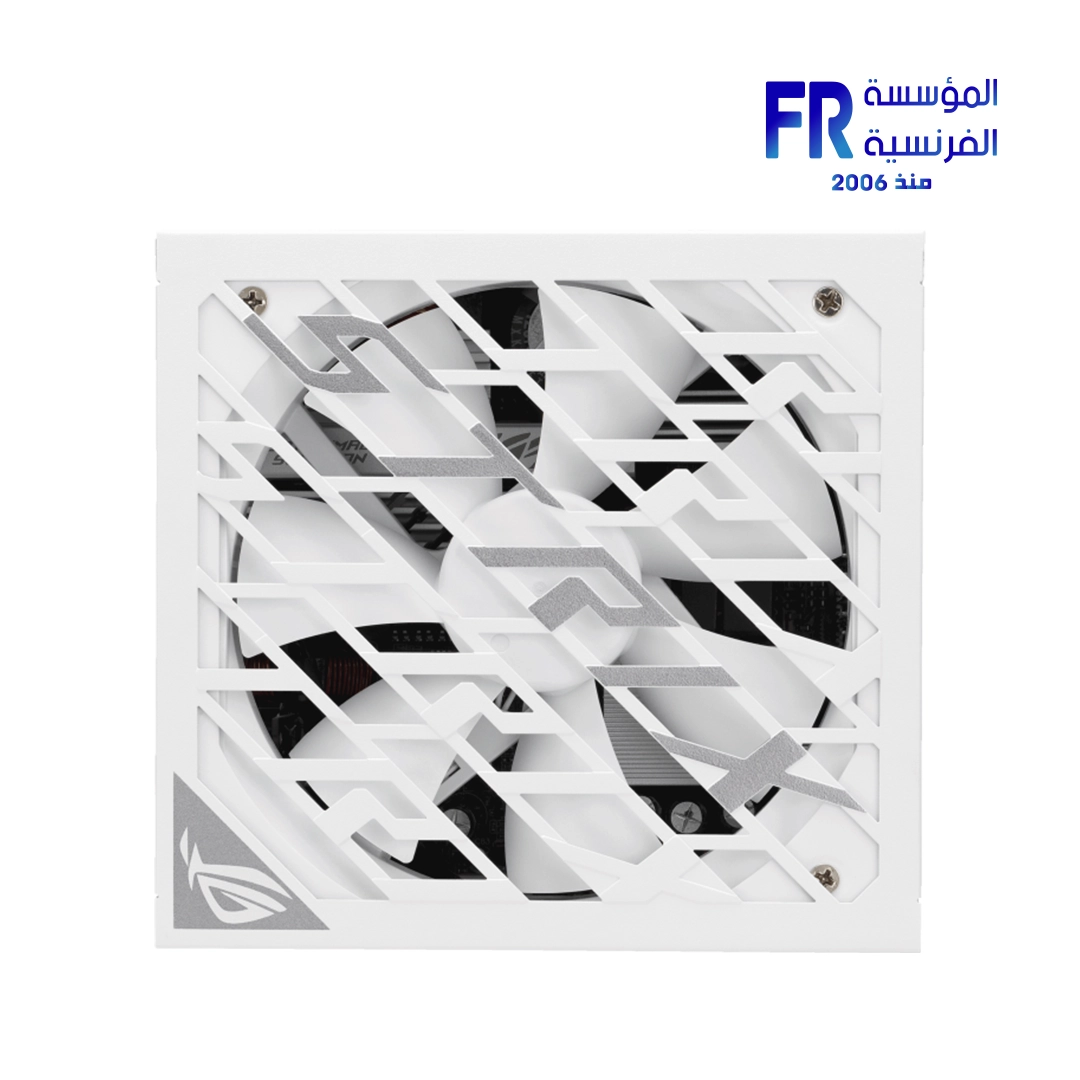

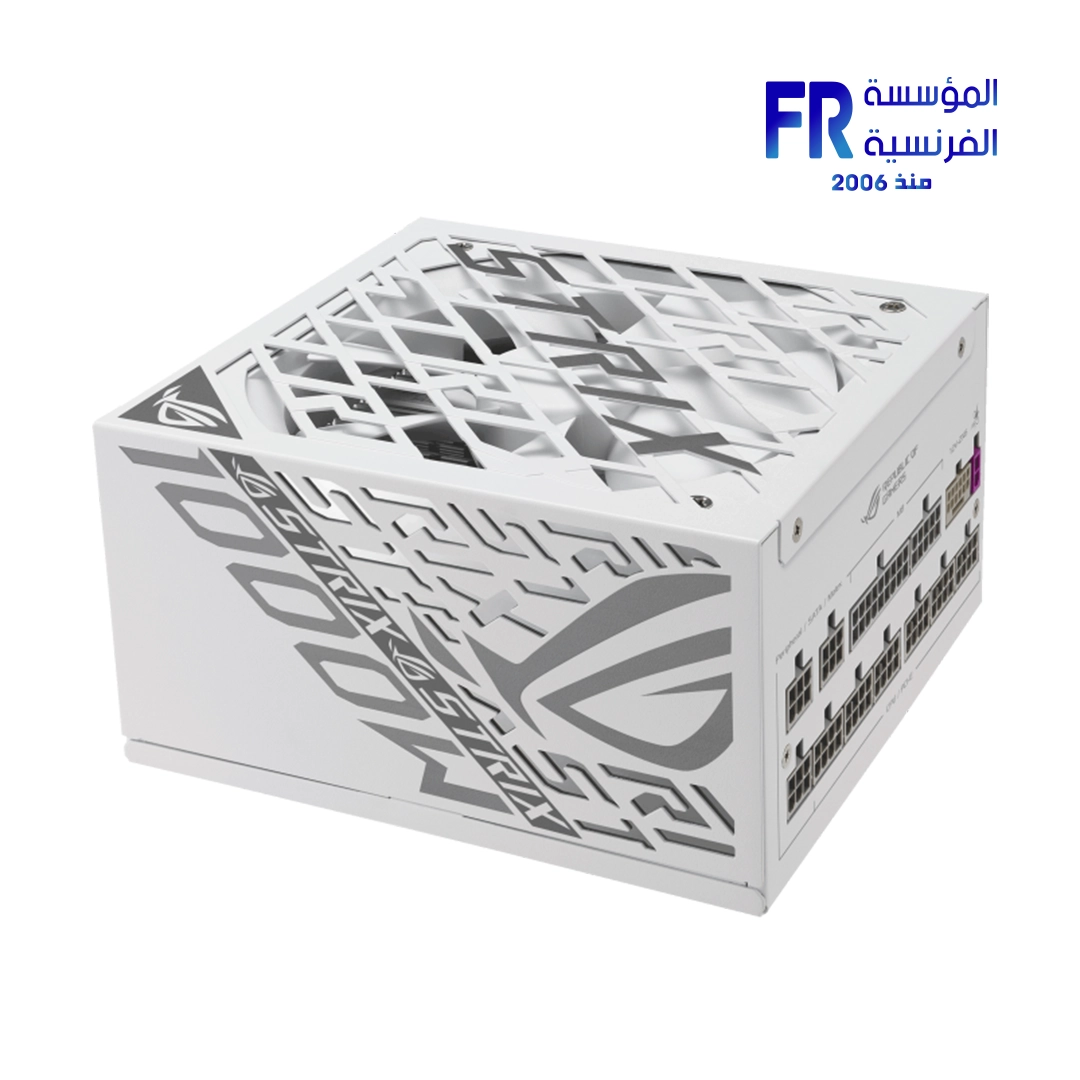

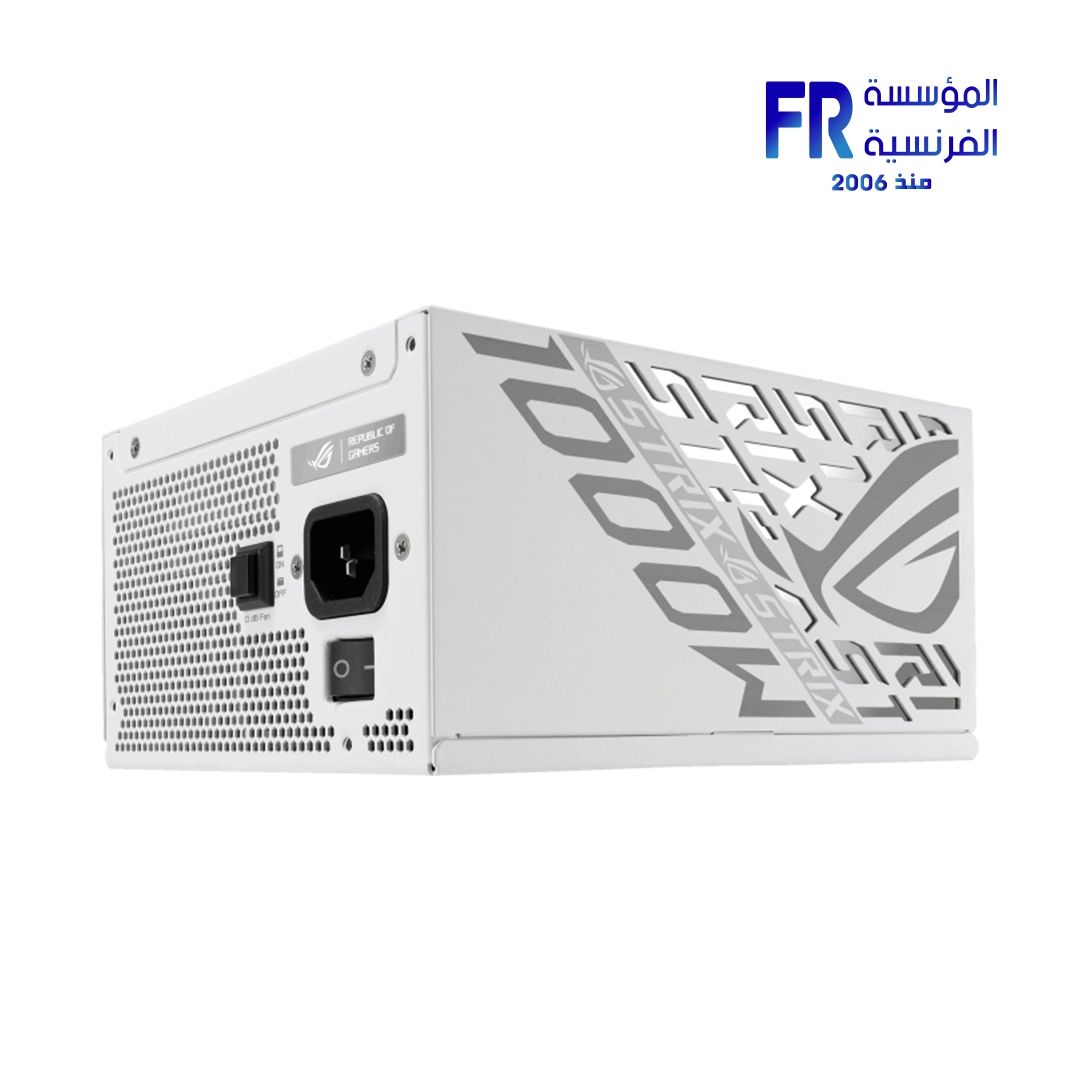

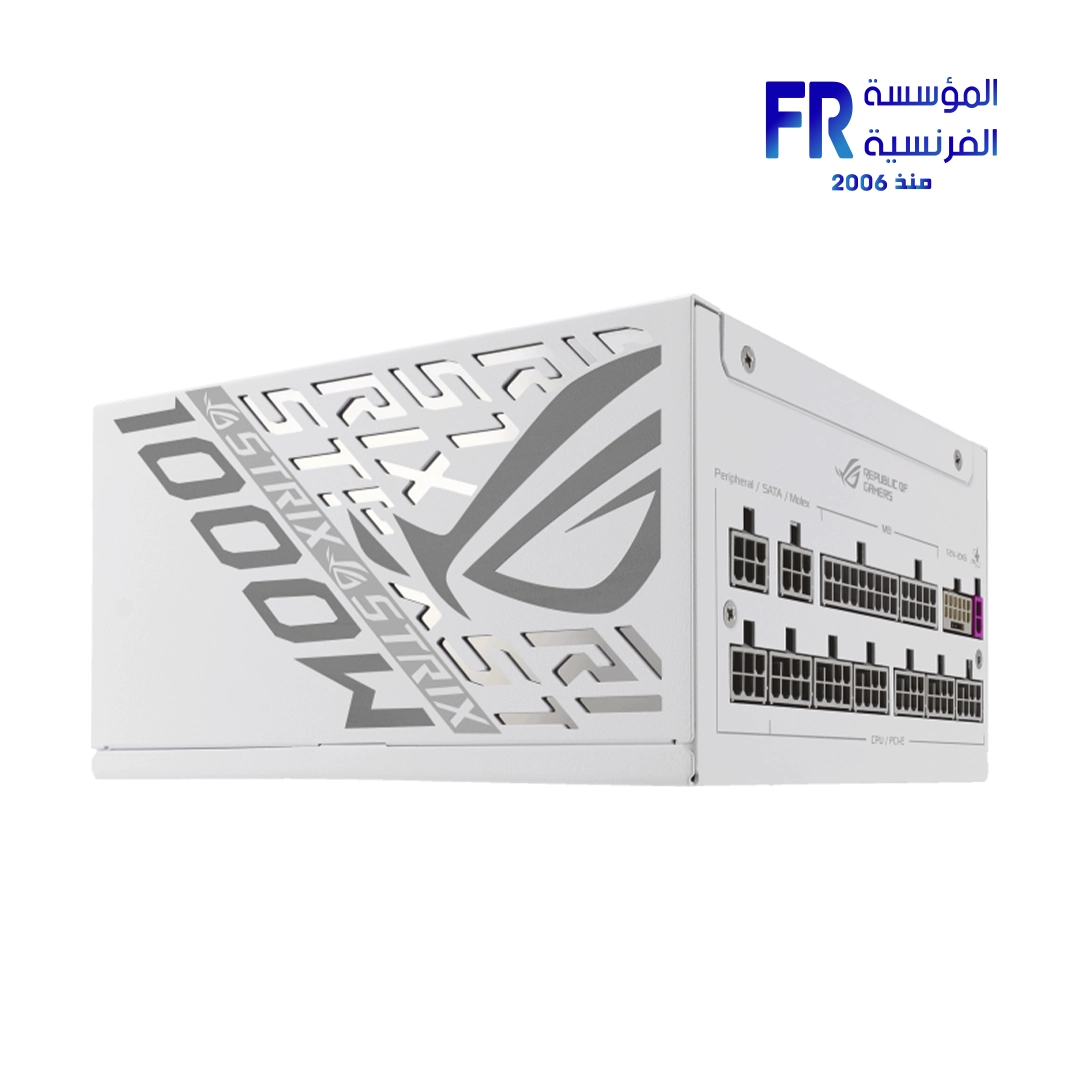

Asus ROG Strix 1000W Platinum White Edition Full Modular Power Supply

The Asus ROG Strix 1000W Platinum White Edition Full Modular Power Supply is a cool and quiet PSU. It delivers stable power, engineered for efficiency with GaN MOSFET and a “GPU-FIRST” intelligent voltage stabilizer in striking style. This PSU offers top-tier performance and unwavering stability, specifically designed for demanding gaming rigs.

Next-Gen Efficiency and Stable Power Delivery:

Innovative GaN MOSFET Technology:

The ROG Strix Platinum White Edition PSU boasts innovative GaN MOSFETs. These deliver superior power efficiency by up to 30%, resulting in lower energy waste. Furthermore, the smaller size of GaN MOSFETs allows for a more organized internal layout within the PSU. This optimized design, in turn, provides space for larger heatsinks and enhanced airflow, consequently improving heat dissipation within the PSU.

“GPU-FIRST” Intelligent Voltage Stabilizer:

Activate the “GPU-FIRST” voltage sensing by connecting the IVS cable. This innovative feature enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios. If you prefer conventional CPU-focused voltage sensing, simply disconnect the IVS cable. With this advanced technology, you can experience smooth and consistent gameplay, ensuring your graphics card receives optimal power.

Superior Cooling and Comprehensive Protection:

Advanced Cooling Design:

Large ROG heatsinks cover critical components, delivering lower temperatures and reduced noise compared to reference designs. Dual ball fan bearings can last up to twice as long as sleeve bearing designs. This ensures long-lasting, reliable cooling with minimal noise. Furthermore, 0dB technology allows you to enjoy light gaming in relative silence, as the fan shuts off entirely when the PSU load is 40% or below. A dedicated 0dB Fan Button provides manual control over this feature.

Robust Certifications and Protections:

The ROG Strix 1000W Platinum White Edition is 80 PLUS Platinum certified. It utilizes low-ESR Japanese capacitors and premium components for industry-leading power efficiency, guaranteeing 89% efficiency at 100% load and 92% efficiency at 50% load. This increased efficiency results in less heat and reduced fan noise. It also holds Cybenetics Lambda A+ Certification, indicating low noise levels (below 20 dB). Comprehensive industrial-grade protections, including OPP, OVP, UVP, SCP, OCP, and OTP, actively safeguard your hardware from potential electrical damage.

Future-Ready Connectivity and Enhanced Durability:

ATX 3.1 and PCIe 5.1 Compliance:

This PSU is fully compliant with the ATX 3.1 standard, which ushers in tighter voltage and current regulation for next-gen hardware. It also features a native 12V-2×6 connector for next-gen graphics card power, making it PCIe 5.1 Ready. A 16-pin PCIe cable, capable of piping up to 600W of power to PCIe Gen 5.1 graphics cards, is bundled with the PSU, preparing your build for the future.

Modular Cables and DIY-Friendly Design:

The fully modular design allows for effortless cable management, reducing clutter within your PC chassis and improving airflow. Etched cables, made from a pliable premium material, are easily flexible during installation and operate at temperatures 50°C lower than the safety limit when routed. These cables meet rigorous UL1581 flame test and UL758 certification standards, ensuring a smooth PC DIY experience and exceptional safety. A DIY-friendly CPU Power Connector simplifies identification and ensures a secure connection. Asus backs this PSU with a 10-year warranty, reflecting confidence in its reliability.

Explore compatible Power Supply Units or check Asus ROG Products for other options. Find full details on the official Asus ROG Strix 1000W Platinum White Edition product page.

Specifications:

• Model: ROG Strix 1000W Platinum White Edition
• Intel Form Factor: ATX12V
• PFC Type: Active PFC
• ATX Standard: ATX 3.1
• Dimensions: 160 x 150 x 86 mm
• Efficiency: 80Plus Platinum
• MTBF: >120,000 hrs @ 25°C
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• DC Output Voltage: +3.3V, +5V, +12V, -12V, +5Vsb
• Maximum Load: +3.3V: 25A, +5V: 25A, +12V: 83.3A, -12V: 0.3A, +5Vsb: 3A
• Combined Load: +3.3V/+5V: 130W, +12V: 1000W, -12V: 3.6W, +5Vsb: 15W
• Total Output: 1000W
• Cable Connectors:
  • MB 24/20-pin x 1
  • CPU 4+4-pin x 2
  • PCI-E 16-pin x 1 (both PSU & component side)
  • PCI-E 6+2-pin x 4
  • SATA x 6
  • PERIPHERAL x 3
• Package Contents:
  • Power Cord x 1
  • Motherboard Power Cable x 1 (610mm)
  • CPU Cable x 2 (1000mm)
  • PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)
  • PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)
  • SATA 1-to-3 Cable x 2 (400+120+120mm)
  • Peripheral 1-to-3 Cable x 1 (400+150+150mm)
  • ROG Strix DIY sticker x 1
  • User Manual x 1
• Weight: 1.81 kg (single PSU)
• Cybenetics Noise Level Certification: A+
• 0dB Technology: Supported (fan shuts off entirely when PSU load is 40% or below)
• 0dB Fan Button: Yes (toggle fan behavior based on system load)
• Model Number/SKU: 90YE00W4-B0NA00
• EAN/UPC: 4711387835517
