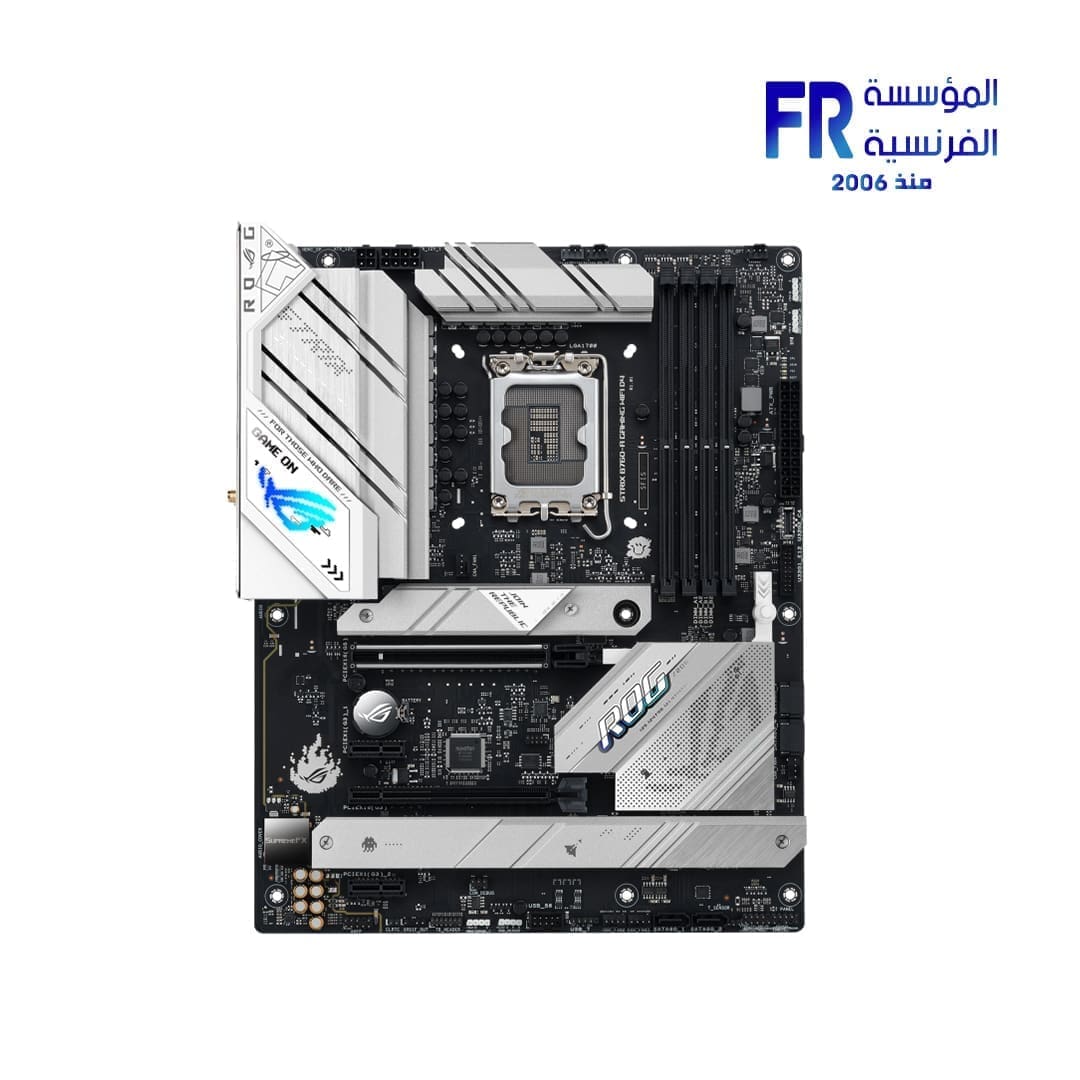

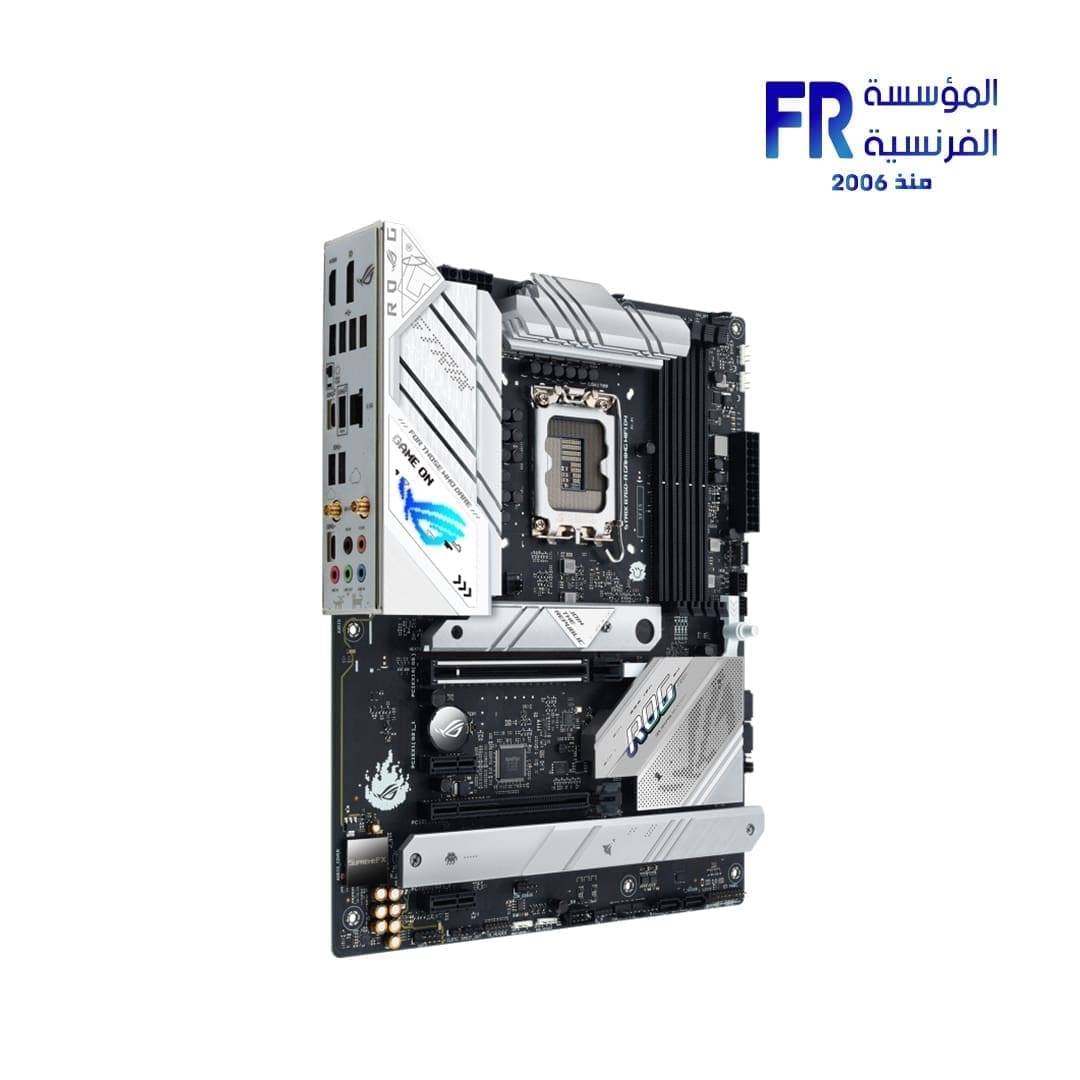

Asus Rog Strix B760 A Gaming Wifi DDR4 Motherboard

Asus Rog Strix B760 A Gaming Wifi DDR4 Motherboard

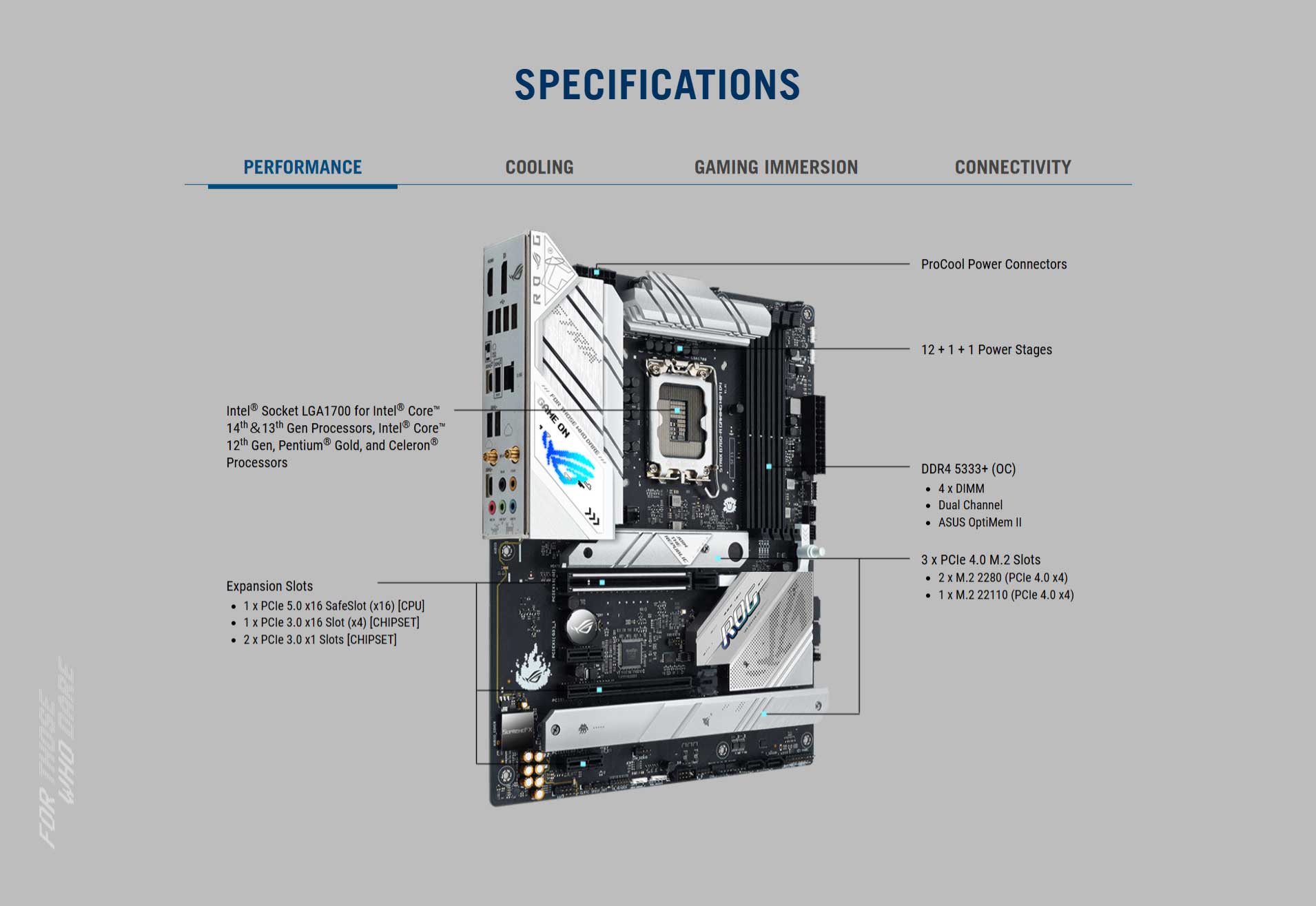

Asus Rog Strix B760 A Gaming Wifi DDR4 Motherboard SPECIFICATIONS:

• News & Updates:

  • 2024/08/12: New BIOS with Intel microcode (0x129) for improved stability with Intel Core 13th & 14th Gen desktop processors. Visit the support site for the latest BIOS updates.

• CPU:

  • Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (depends on CPU type)

• Chipset:

  • Intel® B760 Chipset

• Memory:

  • 4 x DIMM, Max. 128GB, DDR4 (5333 MHz OC to 2133 MHz)
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP), OptiMem II

• Graphics:

  • 1 x DisplayPort (Supports max. 4K@60Hz with DisplayPort 1.4)
  • 1 x HDMI® port (Supports 4K@60Hz with HDMI 2.1)

• Expansion Slots:

  • 1 x PCIe 5.0 x16 slot (for Intel® Core™ Processors 14th & 13th Gen)
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)
  • 2 x PCIe 3.0 x1 slots (shared bandwidth with PCIe x16)

• Storage:

  • 3 x M.2 slots (PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports (Supports Intel® Rapid Storage Technology for RAID)

• Ethernet:

  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard, TUF LANGuard

• Wireless & Bluetooth:

  • Wi-Fi 6E (2×2 Wi-Fi 6E, 802.11 a/b/g/n/ac/ax, 2.4/5/6GHz)
  • Bluetooth® v5.3

• USB:

  • Rear USB (Total 9 ports):
    • 1 x USB 3.2 Gen 2×2 (USB Type-C®)
    • 1 x USB 3.2 Gen 2 (Type-A)
    • 3 x USB 3.2 Gen 1 (2 x Type-A, 1 x USB Type-C®)
    • 4 x USB 2.0 (Type-A)
  • Front USB (Total 6 ports):
    • 1 x USB 3.2 Gen 2 connector (USB Type-C®)
    • 1 x USB 3.2 Gen 1 header (2 additional USB 3.2 Gen 1 ports)
    • 1 x USB 2.0 header (supports 3 additional USB 2.0 ports)

• Audio:

  • ROG SupremeFX 7.1 Surround Sound, ALC4080
  • 120 dB SNR stereo output, 113 dB SNR recording input
  • Supports 32-Bit/384 kHz playback

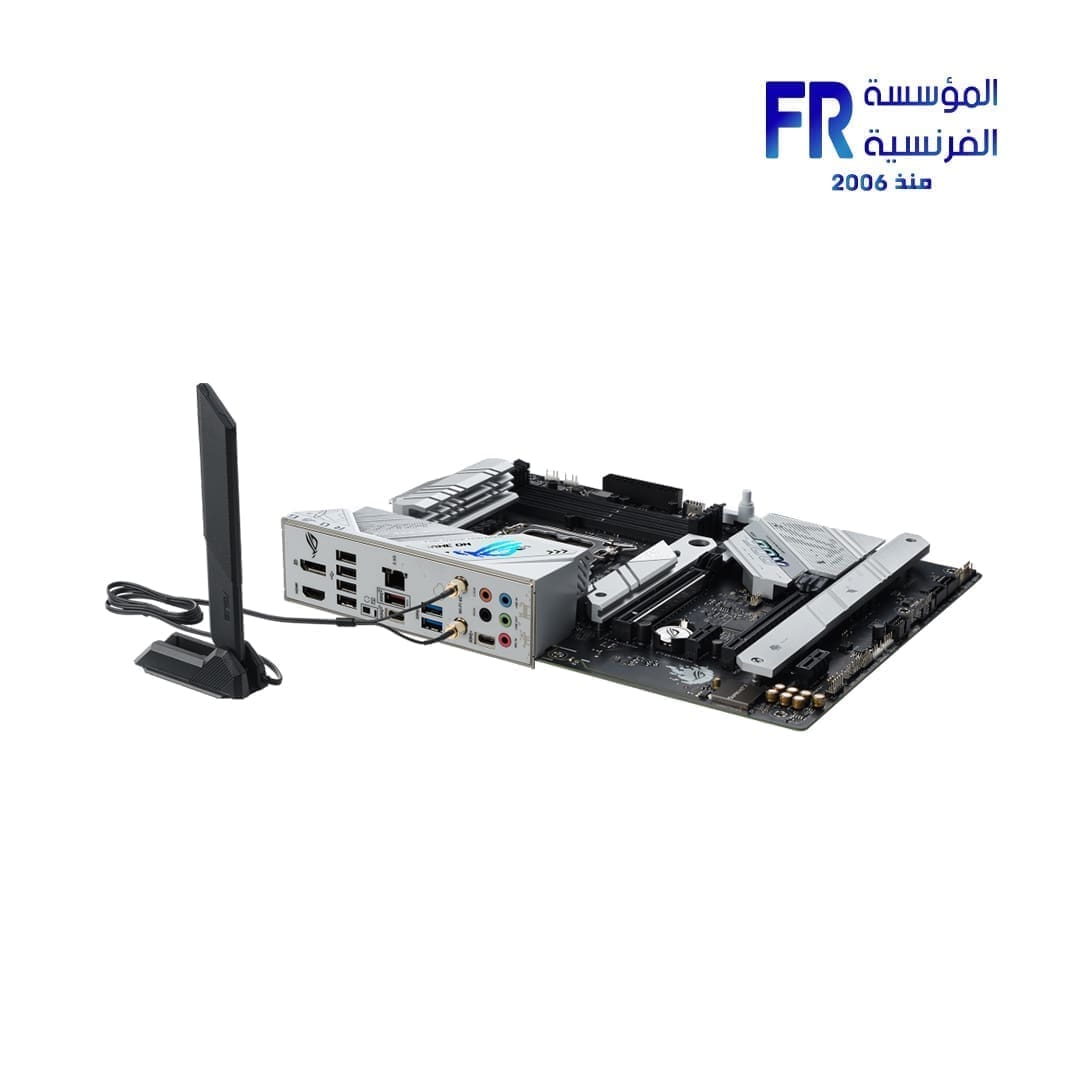

• Back Panel I/O Ports:

  • 1 x USB 3.2 Gen 2×2 (USB Type-C®)
  • 1 x USB 3.2 Gen 2 (Type-A)
  • 3 x USB 3.2 Gen 1 (2 x Type-A, 1 x USB Type-C®)
  • 4 x USB 2.0 (Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Intel® 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x BIOS FlashBack™ button

• Internal I/O Connectors:

  • Fan and Cooling: 1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers
  • Power: 1 x 24-pin Main Power, 1 x 8-pin +12V, 1 x 4-pin +12V
  • Storage: 3 x M.2 slots, 4 x SATA 6Gb/s ports
  • USB: 1 x USB 3.2 Gen 2 connector (USB Type-C®), 1 x USB 3.2 Gen 1 header, 1 x USB 2.0 header

• Special Features:

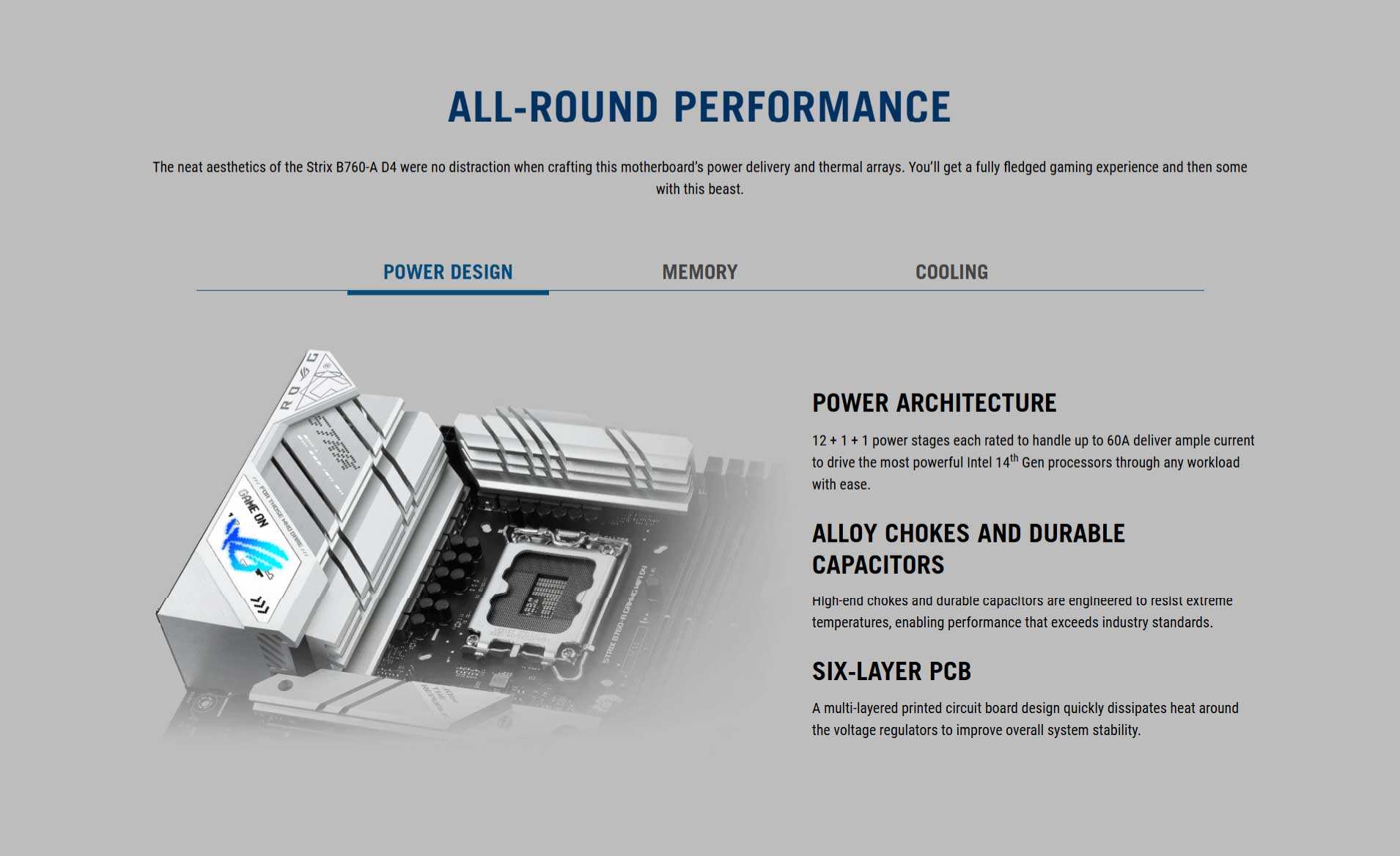

  • Extreme Engine Digi+ with 5K Black Metallic Capacitors
  • ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, etc.)
  • ASUS Thermal Solution (VRM heatsink design)
  • BIOS FlashBack™ button and LED
  • Aura Sync RGB support (Aura RGB header, Addressable Gen 2 headers)

• Software Features:

  • ROG Exclusive Software: GameFirst VI, Sonic Studio III, DTS® Sound Unbound
  • ASUS Exclusive Software: Armoury Crate, AI Suite 3, MyAsus, Norton 360 for Gamers

• BIOS:

  • 256 Mb Flash ROM, UEFI AMI BIOS

• Operating System:

  • Windows® 11, Windows® 10 (64-bit)

• Form Factor:

  • ATX Form Factor (12 x 9.6 inches / 30.5 cm x 24.4 cm)

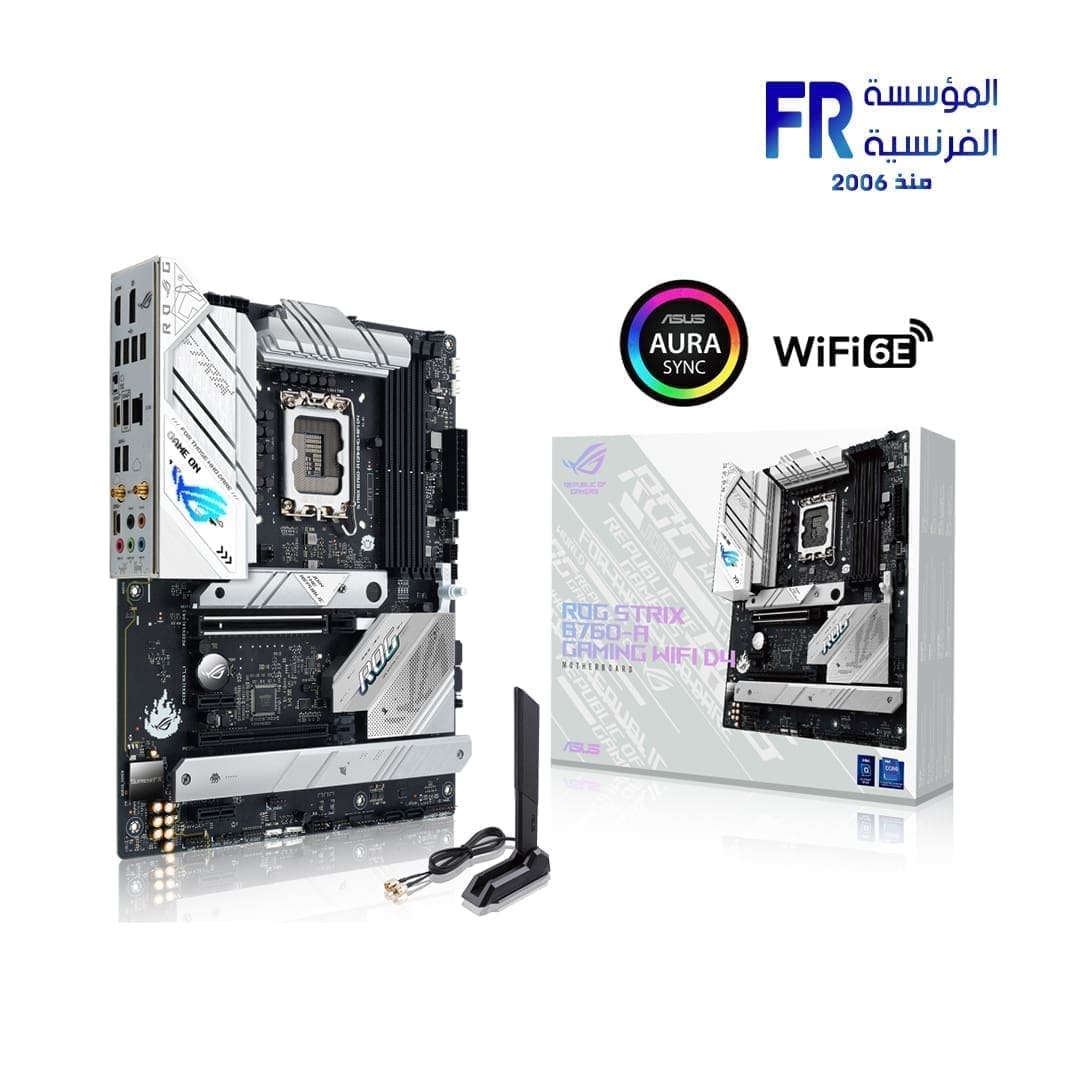

• Accessories:

  • Cables: 2 x SATA 6Gb/s cables
  • Additional Cooling Kit: 1 x Thermal pad for M.2
  • Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 1 x Cable ties package, 1 x M.2 Q-Latch package
  • Documentation: 1 x User guide
