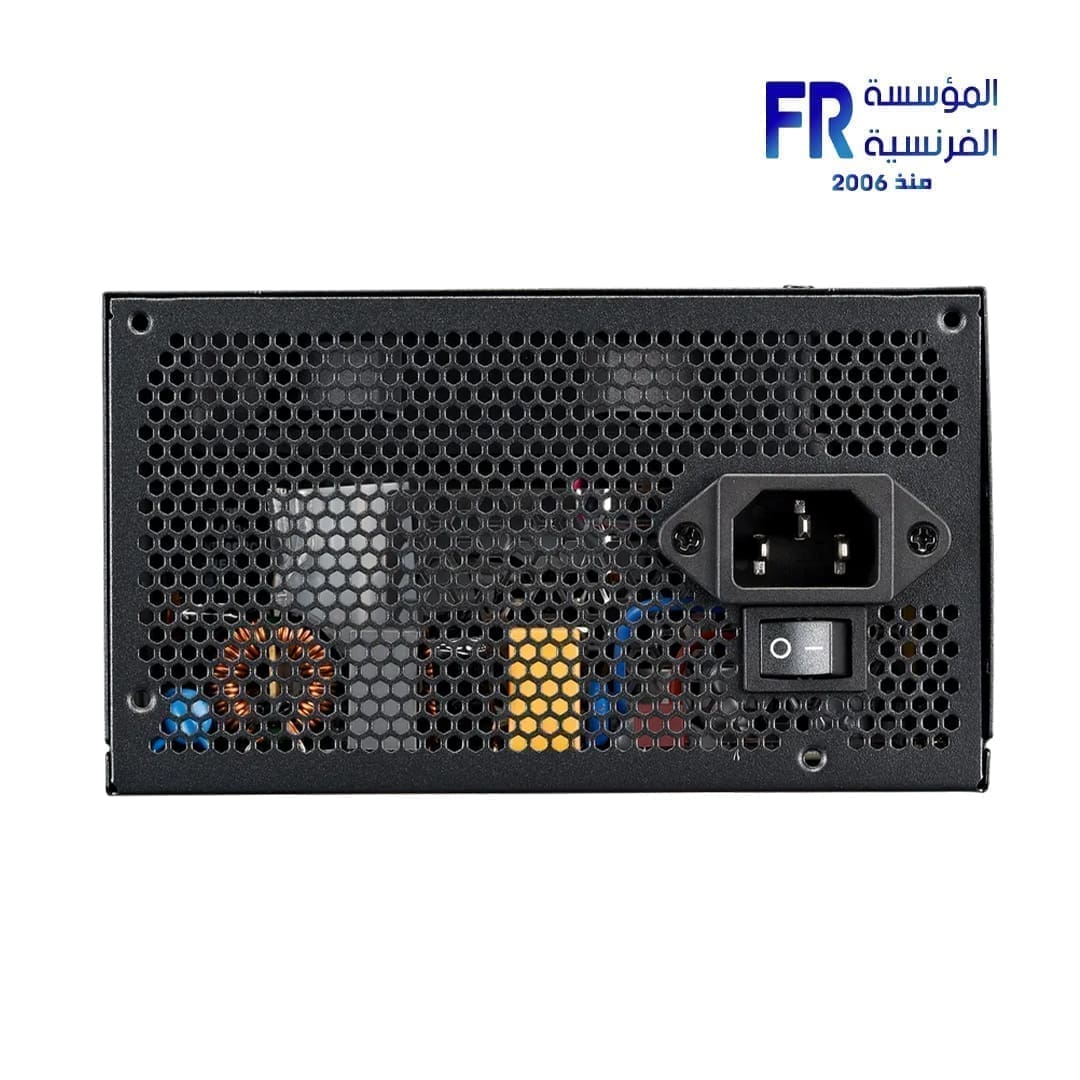

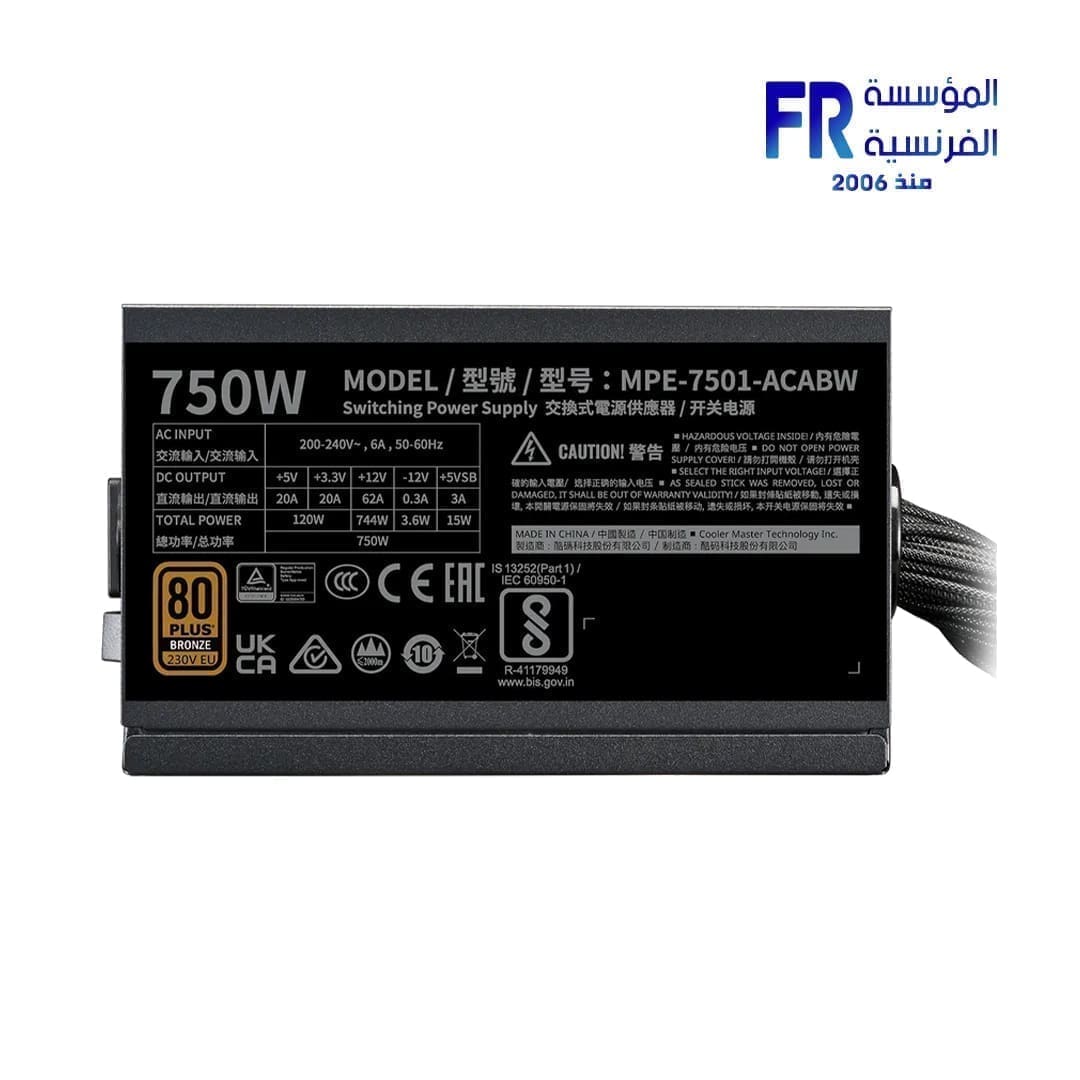

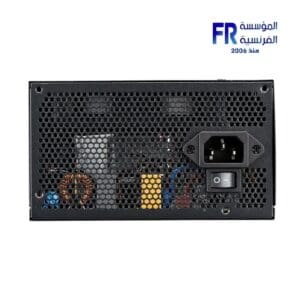

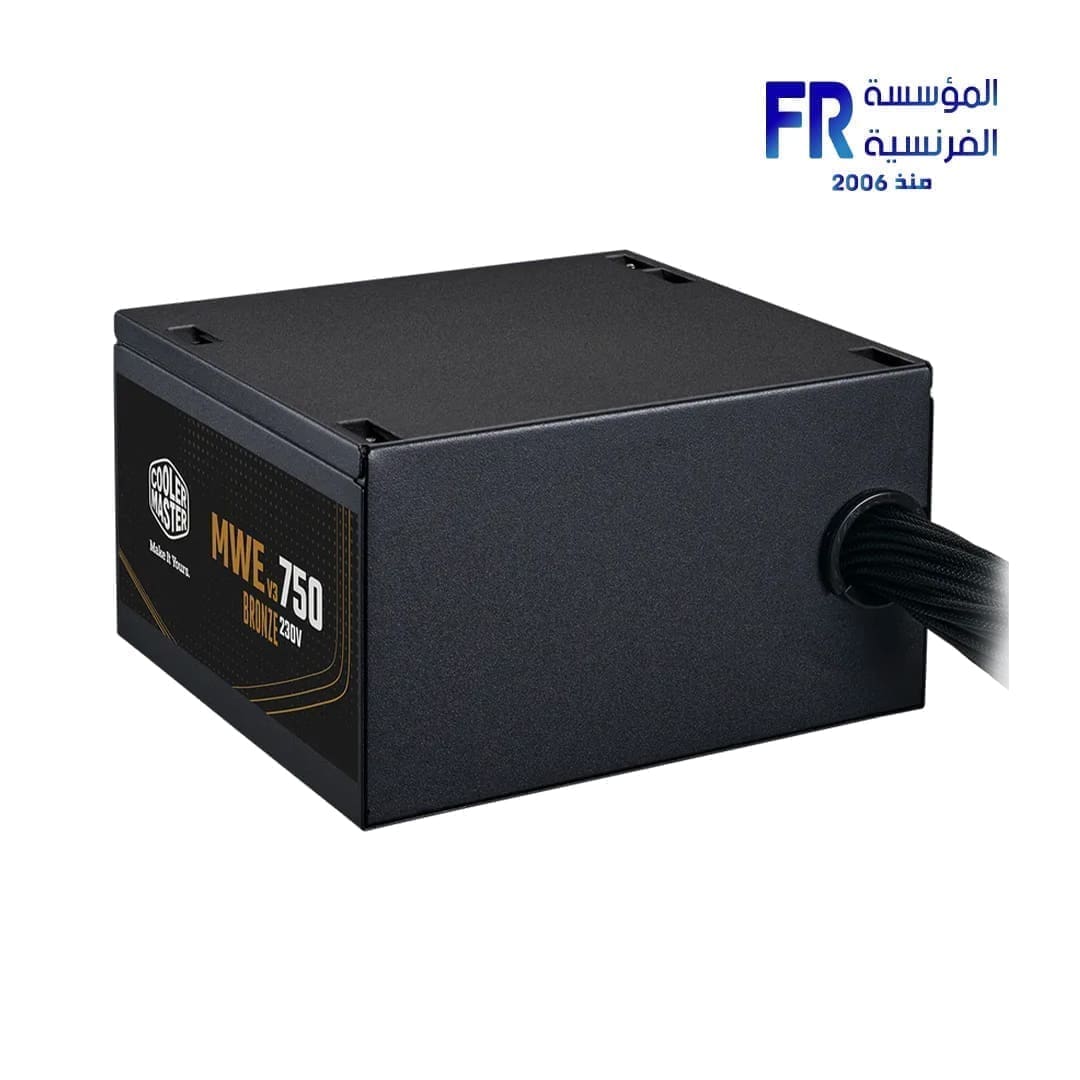

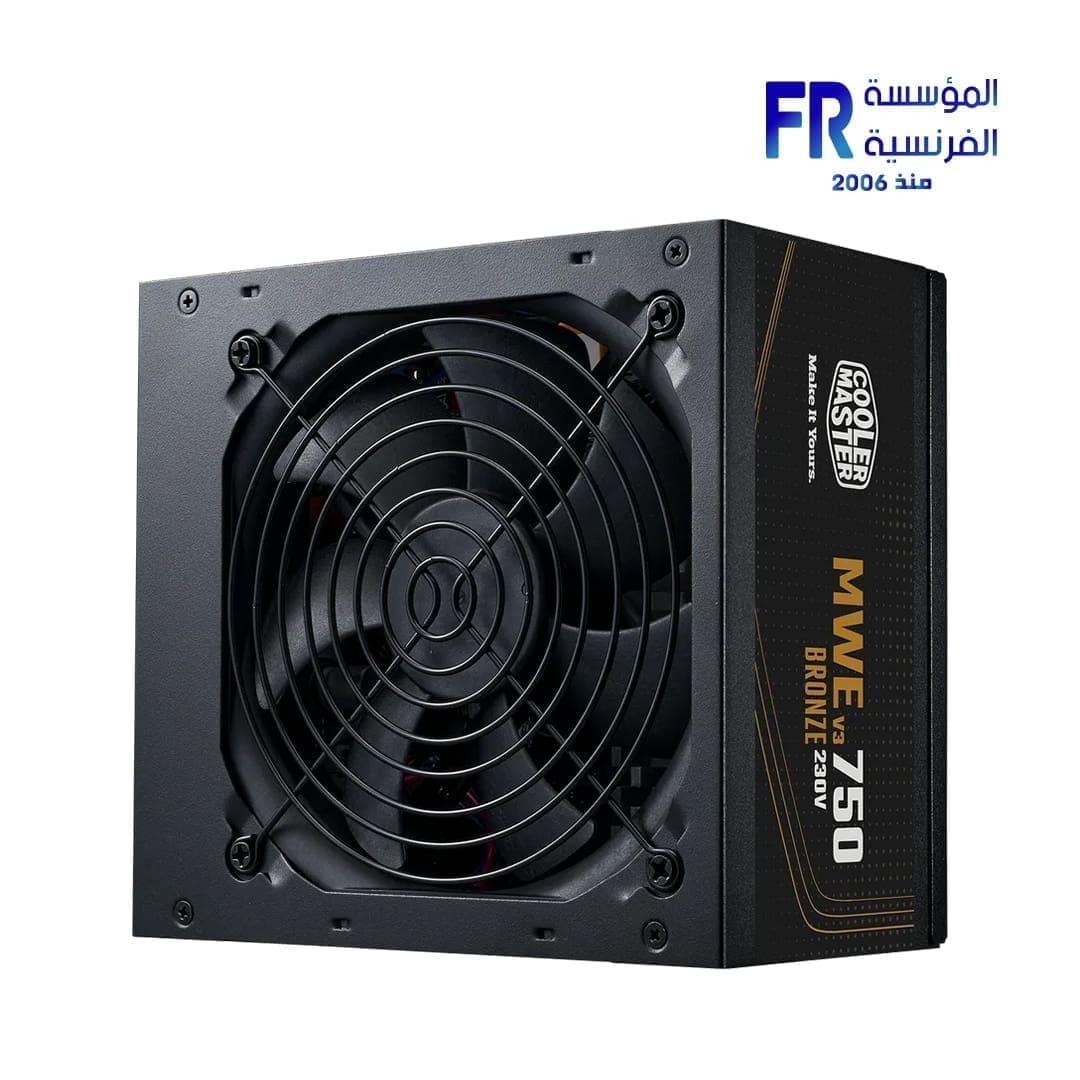

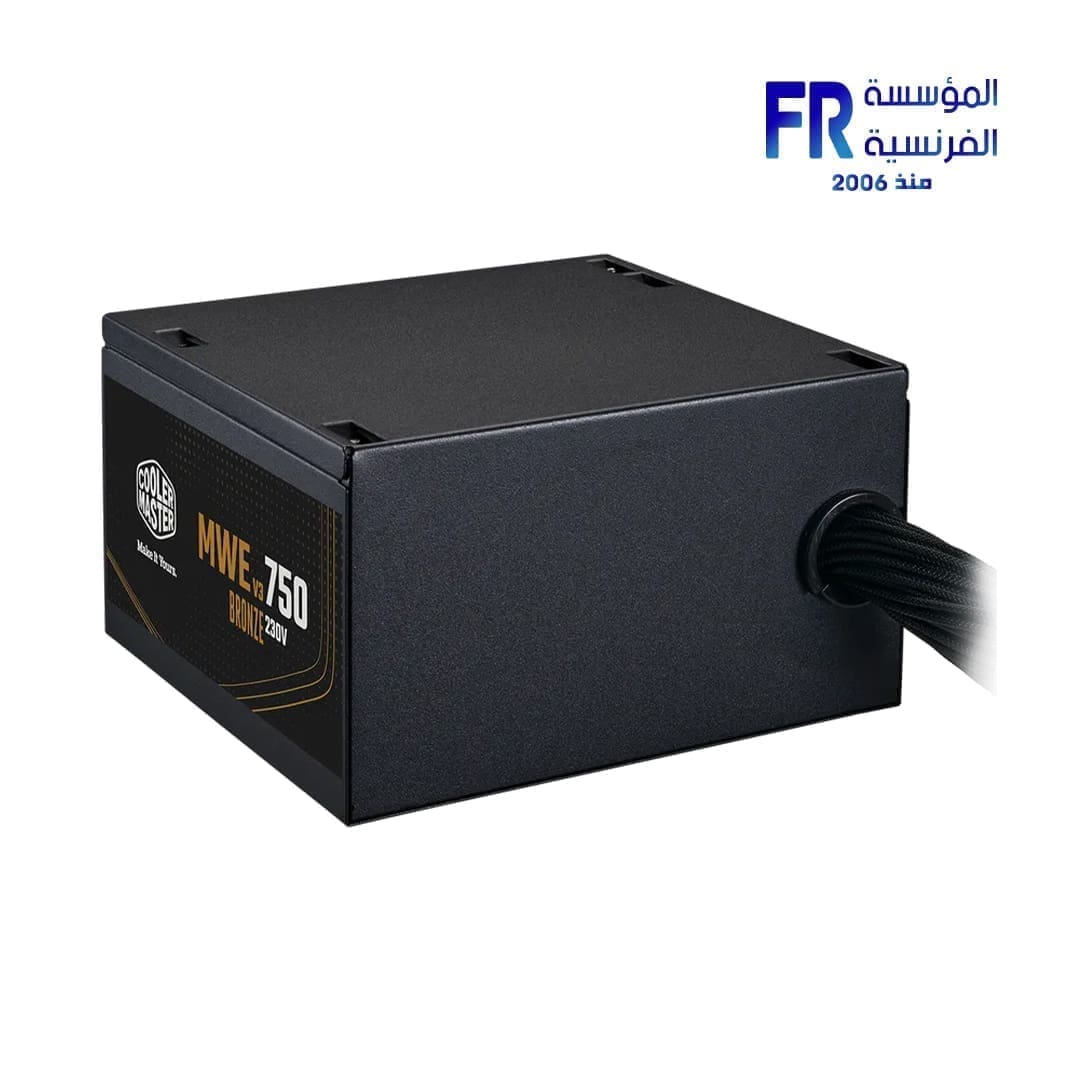

Cooler Master MWE 750 Bronze V3 230V ATX 3.1 750W 80 Plus Bronze Power Supply

Cooler Master MWE 750 Bronze V3 230V ATX 3.1 750W 80 Plus Bronze Power Supply

Cooler Master MWE 750 Bronze V3 230V ATX 3.1 750W 80 Plus Bronze Power Supply

Specifications:

• Model: MPE-7501-ACABW-3B
• ATX Version: ATX
• ATX 12V Ver.: 3.1
• PFC: Active PFC
• Input Voltage: 200-240V
• Input Current: 6A
• Input Frequency: 50-60Hz
• Dimensions (L x W x H): 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
• Fan Size: 120mm
• Fan Bearing: HDB
• Efficiency: >88% @ Typical Load
• 80 PLUS Rating: 80 PLUS Bronze EU 230V
• ErP 2014 Lot 3: Yes
• Operating Temperature: 0-40°C
• Power Good Signal: 100 – 150 ms
• Hold Up Time: >16ms
• MTBF: >100,000 Hours
• Protections: UVP / OVP / OPP / OTP / SCP
• Regulatory: TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.)
• ATX 24 Pin Connectors: 1
• EPS 8 Pin / 4+4 Pin Connectors: 2
• SATA Connectors: 6
• Peripheral 4 Pin Connectors: 3
• PCI-e 6+2 Pin Connectors: 4
• Series: MWE Bronze Series
• Category: 500 to 750W
• Modular: Non-Modular
• 80 Plus Efficiency: Bronze
• Form Factor: ATX
• Watts: 750W

Power Evolved

Cooler Master presents the MWE Bronze V3 230V, the upgraded version of the MWE Bronze featuring ATX 3.1 support, high temperature resilience, a smart DC-to-DC + LLC circuit design, a quiet HDB fan, 80 Plus Bronze efficiency, an embossed cable.

ATX 3.1 Support
