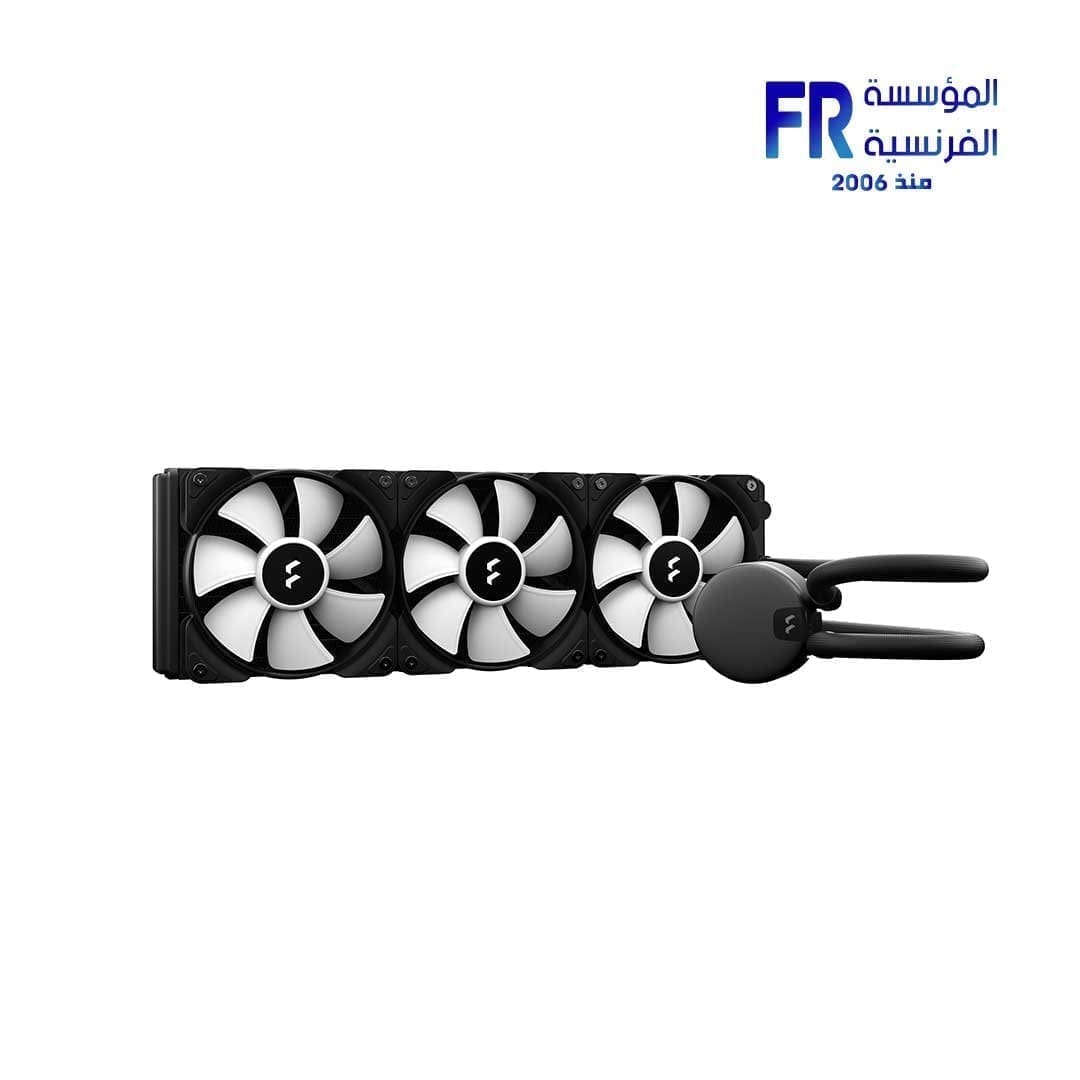

Fractal Design Lumen S36 RGB Liquid Cpu Cooler
7450 EGP
• Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
• Six ARGB LEDs are yours to command via your motherboard or controller
• The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
• Compatible with LGA 1700 and AM5
المتوفر في المخزون 1 فقط
| MODEL | |
|---|---|
| COOLING CATEGORY | |
| Radiator Size | |
| Tubing Length | |
| Fan Size | |
| TUBE Material | |
| Fan Quantity | |
| Material | |
| Fan Speed | |
| Fan Noise Level | |
| Fan Airflow | |
| Fan Voltage | |
| Bearing Type | |
| CPU SOCKET | AM4, AM5, FCLGA1200, FCLGA1700, LGA 1151, LGA 1155, LGA 1700, AM2, AM3, FCLGA1151, LGA 1200 |
| Software | |
| Color | |
| Part Number | |
| Warranty |
Fractal Design Lumen S36 RGB Liquid Cpu Cooler
General specifications
Sockets supported (Intel) LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
Sockets supported (AMD) AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
* Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
Cold plate material Copper
Thermal paste Pre-applied
Tube length 400mm
Tube material Low-permeability rubber with braided nylon sleeve
Fittings, block side
Articulating 90-degree Elbow
Fittings, radiator side Barbed fitting
Block height 43mm
Block measurements (with fittings) 79 x 67 mm
Block diameter (main block body) 67 mm
Fan specifications
Fan type
Aspect 12 RGB PWM
Rotational speed 500–2000 RPM
Fan bearing Rifle bearings
Fan PWM control Yes
Fan acoustical noise <10–33.2 dBA
Fan maximum air flow 13-56 CFM
Fan maximum static pressure 0.230–2.34 mm H2O
Fan input voltage 12V
Fan maximum input current 0.37A
Fan MTTF 90,000 hours
Pump specifications
Rotational speed 4000 ± 10% RPM
Bearing type Ceramic
PWM control No
Acoustical noise (full speed) 22 dBA
Maximum pressure 1.8 mm H2O/ 17.6 kPa / 2.5 PSI
Input voltage 12V DC
Input current (without fans) 0.34 A
MTTF 50 000 hours
Fractal Design Lumen S36 RGB Liquid Cpu Cooler
Radiator specifications
Radiator dimensions 392 x 120 x 27 mm
Radiator housing material Aluminum
Radiator fin material Aluminum
Radiator fan screw threads 6-32
Other
Package contents
CPU Cooler Assembly, 3x Aspect 12 RGB fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable
Package dimensions 448 x 205 x 137 mm
Package weight 2.20kg
EAN 7340172705956
UPC 843276105952
JAN 4537694317634
Product Code FD-W-L1-S3612
The right way up
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Low-permeability rubber tubes with braided nylon sleeves
From subtle to stunning
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller
Color-coordinate your cooling
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Forget the thermal paste
- Thermal paste is pre-applied to ensure a proper and pain-free installation
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
