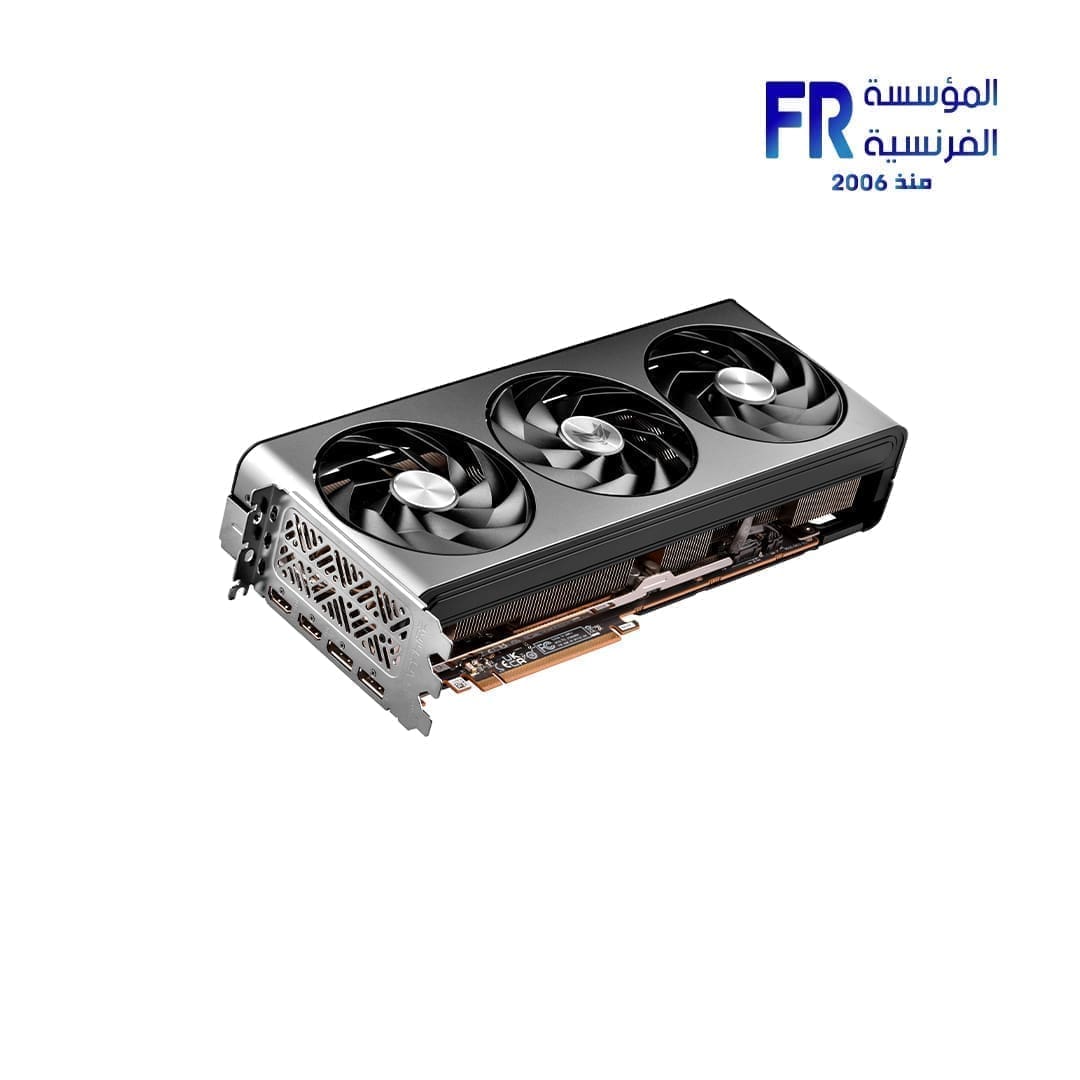

Sapphire Nitro + Radeon RX 7800 XT Gaming OC 16GB GDDR6 Graphic Card

Sapphire Nitro + Radeon RX 7800 XT Gaming OC 16GB GDDR6 Graphic Card - Image 2

Sapphire Nitro + Radeon RX 7800 XT Gaming OC 16GB GDDR6 Graphic Card

29500 EGP

GPU: Boost Clock: Up to 2565 MHz
GPU: Game Clock: Up to 2254 MHz
Memory: 16GB/256 bit DDR6. 19.5 Gbps Effective
Stream Processors: 3840
RDNA™ 3 Architecture
Ray Accelerator: 60

Out Of Stock.

Price Match Guarantee

SKU: 840777089736 Categories: GRAPHICS CARD, AMD Graphics Card Tags: Video Card, Radeon RX 7800 XT, PC Graphics Card, Overclocked, Graphics Card, Ray Tracing, Sapphire Nitro+ Radeon RX 7800 XT Gaming OC 16GB GDDR6 Graphic Card, 16GB GDDR6, AMD GPU, SAPPHIRE, PC Gaming, Radeon RX 7000 Series, Gpu, Nitro+, Mid-Range GPU, Gaming GPU, 1440p Gaming Brand: Sapphire

Sapphire Nitro + Radeon RX 7800 XT Gaming OC 16GB GDDR6 Graphic Card

Sapphire Nitro + Radeon RX 7800 XT Gaming OC 16GB GDDR6 Graphic Card

GPU Specifications

GPU: AMD Radeon™ RX 7800 XT Graphics Card
Process: 5nm
Architecture: AMD RDNA™ 3 Architecture
Clock Speeds:
- Boost Clock: Up to 2565 MHz
- Game Clock: Up to 2254 MHz
Stream Processors: 3840
Compute Units: 60 CU (with RT+AI Accelerators)
Infinity Cache: 64MB
Ray Accelerators: 60
Memory:
- Size: 16GB GDDR6
- Bus Width: 256-bit
- Clock Speed: 19.5Gbps Effective
Display Outputs:
- Maximum 4 Displays
- HDMI™: 7680×4320
- DisplayPort 2.1: 7680×4320
Interface: PCI-Express 4.0 x16

Sapphire Features

Dual BIOS
TriXX Software Switch
Premium Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
Tri-X Cooling Technology
- High TG Copper PCB
- Optimized Composite Heatpipe
- Intelligent Fan Control
- Precision Fan Control
Metal Backplate with ARGB
ARGB Light Bar
Two-Ball Bearing Fans
Angular Velocity Fan Blade
Assistive System Fan Control
Cold Rolled Steel Frame
Dedicated VRM Cooling
Wave Fin Design
V Shape Fin Design for GPU Cooling
TriXX Supported:
- Fan Check
- Fan Quick Connect
- TriXX Boost
- NITRO Glow
- External RGB LED MB Synchronization

AMD Features

AMD RDNA™ 3 Architecture
60 AMD RDNA™ 3 Compute Units
64MB AMD Infinity Cache™ Technology
DisplayPort™ 2.1 Support
AMD Radiance Display™ Engine
16GB GDDR6 on 256-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ Super Resolution technology
Microsoft® DirectX® 12 Ultimate Support
Microsoft® DirectStorage Support
Vulkan® Optimized
AMD Smart Technologies
AMD Software: Adrenalin Edition™
- AMD Noise Suppression
- AMD Privacy View
- AMD Radeon™ Super Resolution technology
- AMD Link
- AMD FreeSync™ Technology

System Requirements

Minimum 700 Watt Power Supply
2 x 8-pin Power Connector
PCI Express® based PC with one X16 lane graphics slot
Minimum 8GB of system memory (16GB recommended)

Software BIOS Switch

Switch from performance mode to silent mode or back using our TriXX software for a quick and easy switch between your dual BIOS modes.

WAVE Fin Design & V-Shape Fin Design for GPU cooling

The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.

The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.

Cold Rolled Steel Frame

Experience a superior and beautifully crafted frame on the NITRO+ AMD Radeon™ RX 7800 XT Graphics Card with a Cold Rolled Steel Frame that fortifies the shroud structure and durability while encasing the sides of the PCB for a strong encasement alongside the All Metal Backplate.

GRAPHICS CARD

MODEL	RX 7800 XT Gaming OC 16GB
CHIPSET MANUFACTURERS	AMD
VGA SERIES	RX 7800 XT
VGA MEMORY SIZE	16GB
Technology	GDDR6
CORE CLOCKS	2565 MHz
Cuda Core	3840
Memory Bus	256 bit
Card Bus	PCI-E 4.0 x 16
Vga Cooling	3 Fans
Recommended PSU	700W
Power Connectors	2 x 8 pin
DirectX	12 Ultimate
I/O Ports	2x HDMI, 2x DisplayPort
Color	Black
Part Number	S88-7E475-001SA
Warranty	3 Years
