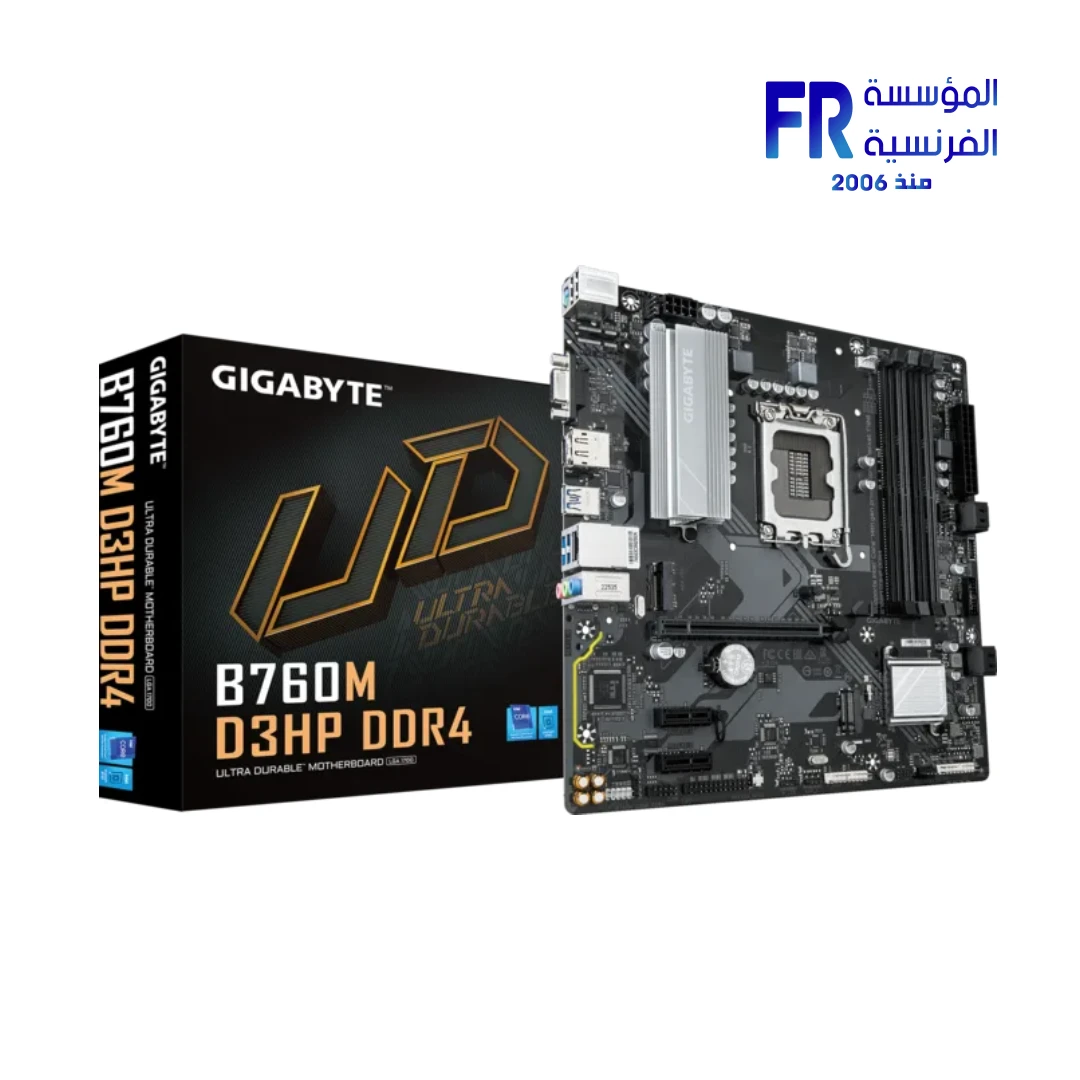

Gigabyte B760M D3HP DDR4 Socket LGA1700 DDR4 Micro ATX Motherboard
5399 EGP
- Part Number: 9MB76M3P4-00-G10
- Form Factor & Socket: Micro ATX (24.4 x 24.4 cm) | Intel LGA1700 Socket | Intel B760 Express Chipset
- CPU Support: 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors
- Memory: 4x DDR4 DIMM Sockets | Up to 128 GB Capacity (32 GB per DIMM) | Dual Channel | Up to 5333(OC) MT/s | Intel XMP Support
- Expansion & Storage: 1x PCIe 4.0 x16 Slot (CPU) | 2x PCIe 3.0 x1 Slots (Chipset) | 2x M.2 Connectors (1x PCIe 4.0 x4/x2 from CPU, 1x PCIe 4.0 x4/x2 from Chipset) | 4x SATA 6Gb/s Connectors | RAID 0/1/5/10 Support
- Networking: Realtek GbE LAN Chip (1 Gbps / 100 Mbps / 10 Mbps)
- Rear I/O & Graphics: 1x D-Sub (VGA) | 1x HDMI 2.1 | 1x DisplayPort 1.2 | 3x USB 3.2 Gen 1 Type-A | 2x USB 2.0 | 1x PS/2 | 1x RJ-45 | 3x Audio Jacks
- Internal I/O: 1x USB Type-C Header (USB 3.2 Gen 1) | 1x USB 3.2 Gen 1 Header | 2x USB 2.0 Headers | 1x Addressable LED Strip Header | 1x RGB LED Strip Header | Q-Flash Plus Button | S/PDIF Out Header | Serial & Parallel Port Headers
- Audio: Realtek High Definition Audio (2/4/5.1/7.1-channel)
- OS Support: Windows 11 / Windows 10 (64-bit)
- Warranty: 3 years
In stock
Price Match Guarantee
GIGABYTE B760M D3HP DDR4
Socket LGA1700 · DDR4 · Micro ATX
Intel B760 · Core 14th/13th/12th Gen · DDR4 up to 128GB · PCIe 4.0 x16 · 2× M.2 · GbE LAN · Front USB-C · Q-Flash Plus.
DDR4 · 128GB
PCIe 4.0 x16
2× M.2
Micro ATX
Intel 14th Gen ready. DDR4 value. Micro ATX compact.

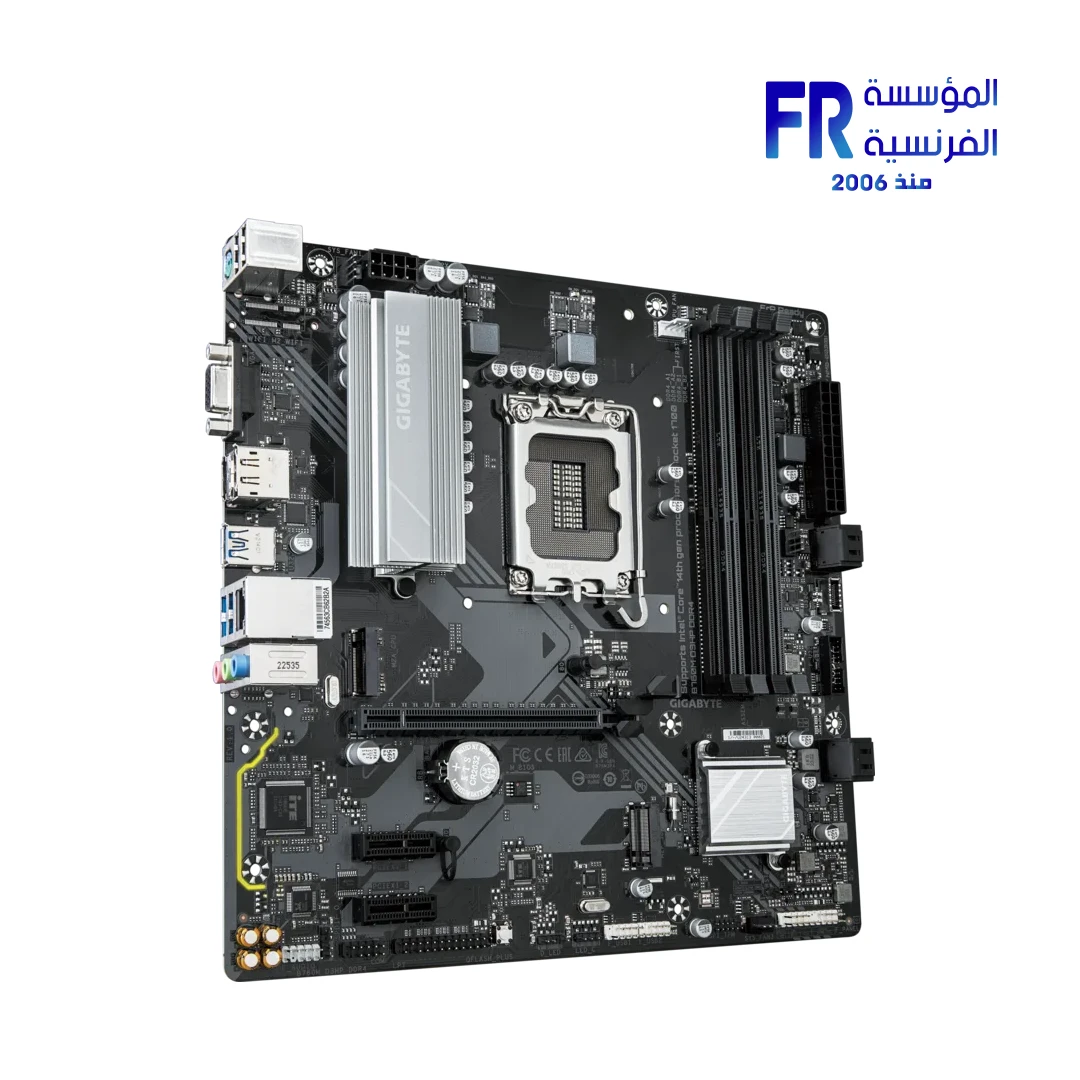

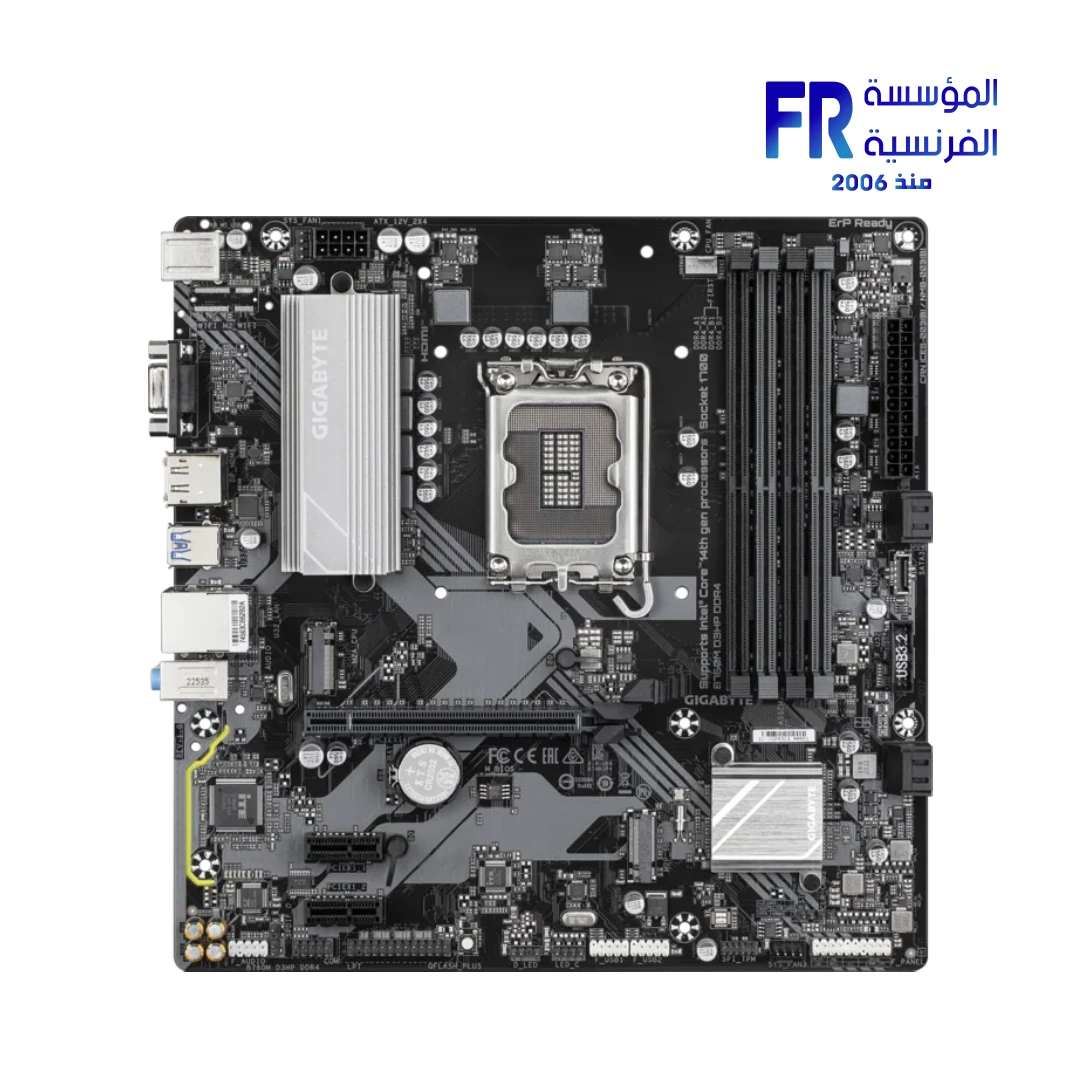

The Gigabyte B760M D3HP DDR4 is a Micro ATX motherboard on the Intel LGA1700 platform, built around the Intel B760 chipset with a 4+1+1 Hybrid Digital VRM design . Moreover, it supports Intel Core 14th, 13th, and 12th Gen processors out of the box — no BIOS update required for 14th Gen compatibility .
Additionally, the board supports up to 128 GB of DDR4 memory across 4 DIMM slots with XMP profiles up to DDR4 5333 (OC) . Furthermore, storage is handled by two M.2 PCIe 4.0 x4 connectors and 4× SATA 6Gb/s with RAID support . Consequently, connectivity includes Realtek GbE LAN, front USB-C 5Gb/s, and HDMI 2.1 + DisplayPort 1.2 for triple-display capability . Meanwhile, Q-Flash Plus enables BIOS updates without a CPU, memory, or graphics card installed .
LGA1700 · Intel B760
DDR4 · up to 128GB
PCIe 4.0 x16
GbE LAN
3 Years
14th Gen Ready Out of the Box
Built on the Intel LGA1700 platform with the Intel B760 chipset and a 4+1+1 Hybrid Digital VRM, the B760M D3HP DDR4 supports Intel Core 14th, 13th, and 12th Gen processors . Consequently, verified users confirm the board is ready for 14th Gen CPUs without needing a BIOS update — a significant convenience for builders .
Essential LGA1700 Foundation
DDR4 up to 128GB
4 DIMM slots with XMP support up to DDR4 5333 (OC).
PCIe 4.0 x16
Primary graphics slot supporting PCIe 4.0 x16 bandwidth.
2× M.2 PCIe 4.0
Two M.2 Socket 3 connectors supporting PCIe 4.0 x4 SSDs.
Front USB-C
USB 3.2 Gen 1 Type-C header for modern front-panel connectivity.
GbE LAN
Realtek Gigabit Ethernet for reliable wired networking.
Q-Flash Plus
BIOS update without CPU, memory or GPU installed.
DDR4 XMP up to 5333 (OC)
Four DDR4 DIMM slots support up to 128 GB (32 GB per DIMM) and memory speeds from DDR4 2133 up to DDR4 5333 (OC) with XMP profiles . However, for best results, install memory in matched pairs to enable Dual Channel mode, which doubles memory bandwidth . Similarly, the board includes two M.2 PCIe 4.0 x4 connectors and 4× SATA 6Gb/s with RAID 0/1/5/10 support for SATA devices .
USB-C · HDMI 2.1 · DisplayPort

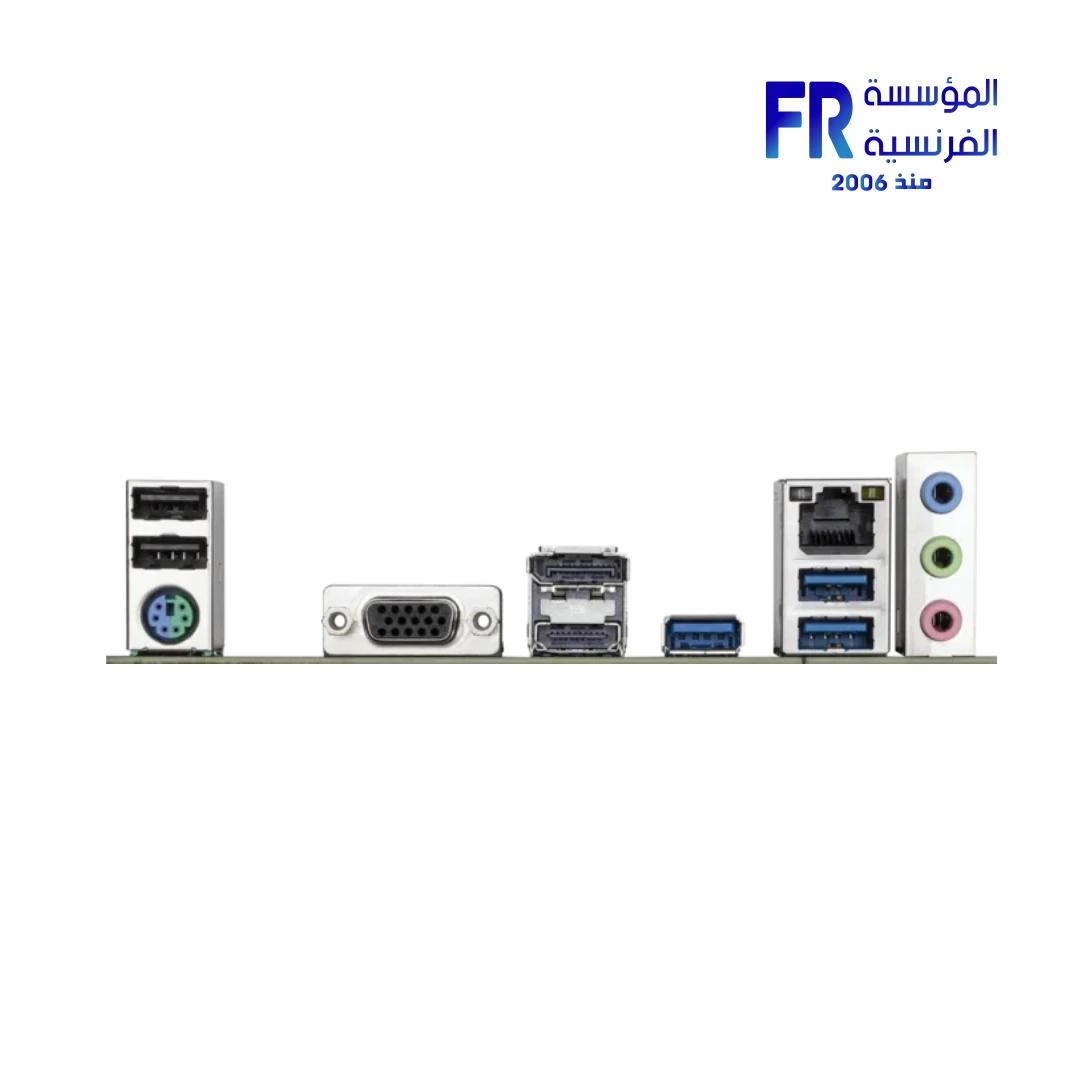

The back panel includes USB 3.2 Gen 1 ports, USB 2.0 ports, HDMI 2.1 and DisplayPort 1.2 video outputs, a PS/2 port, D-Sub, RJ-45 LAN, and 3 audio jacks . Furthermore, the board supports up to triple-display configurations simultaneously . Additionally, internally you get a USB Type-C header, USB 3.2 Gen 1 and USB 2.0 headers, two M.2 slots, 4× SATA 6Gb/s, and multiple fan headers including CPU and system fan connectors .
Memory Installation & GPU Compatibility
For optimal performance, install DDR4 memory in matched pairs using the A2 and B2 slots to enable Dual Channel mode . Similarly, when using a single module, install it in DDR4_A2 first. Additionally, while the board supports modern GPUs without issues, verified users note that very old graphics cards (2014 and older) may not display without BIOS considerations — the VGA LED may remain lit with certain legacy cards . As a result, if you encounter this, check for a BIOS update or use a newer GPU for initial setup.
Micro ATX · 24.4 × 24.4 cm
The Micro ATX form factor (244 × 244 mm) fits a wide range of compact cases without sacrificing essential expansion . Moreover, the board includes Smart Fan 6 with multiple temperature sensors and hybrid fan headers supporting both PWM and DC fans with FAN STOP capability . Additionally, Q-Flash Plus simplifies BIOS updates by allowing you to update firmware without a CPU, memory, or graphics card installed .
Windows 11 / 10 · Intel 14th Gen Ready
The B760M D3HP DDR4 supports Windows 11 64-bit and Windows 10 64-bit . Moreover, it is compatible with Intel Core 14th, 13th, and 12th Gen processors on the LGA1700 socket . Furthermore, Gigabyte Control Center (GCC) provides a unified interface for driver updates, RGB Fusion lighting control, and system monitoring. Meanwhile, Norton Internet Security (OEM) is included as bundled software .
What’s in the Box
Micro ATX · 24.4 × 24.4 cm
Standard Gigabyte accessory kit
Rear panel cover
Documentation & driver disc
Technical Specifications
Frequently Asked Questions
Build on LGA1700 with Confidence
LGA1700 · B760 · DDR4 up to 128GB · PCIe 4.0 x16 · 2× M.2 · GbE LAN · Front USB-C · Q-Flash Plus — backed by a 3-year warranty.
✓ 3-Year Warranty
✓ LGA1700 + DDR4 + USB-C
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| CPU Socket | |
| Motherboard Chipset | |
| Motherboard Type | |
| CPU SERIES | |
| Technology | |
| Memory Speed | |
| Max Memory Size | |
| Memory Slot | |
| PCI-E X16 | |
| PCI-E GEN | PCIe 4.0 |
| PCI-E Slots (M.2) | |
| SATAIII | |
| Communication module | |
| Part Number | |
| Warranty |
