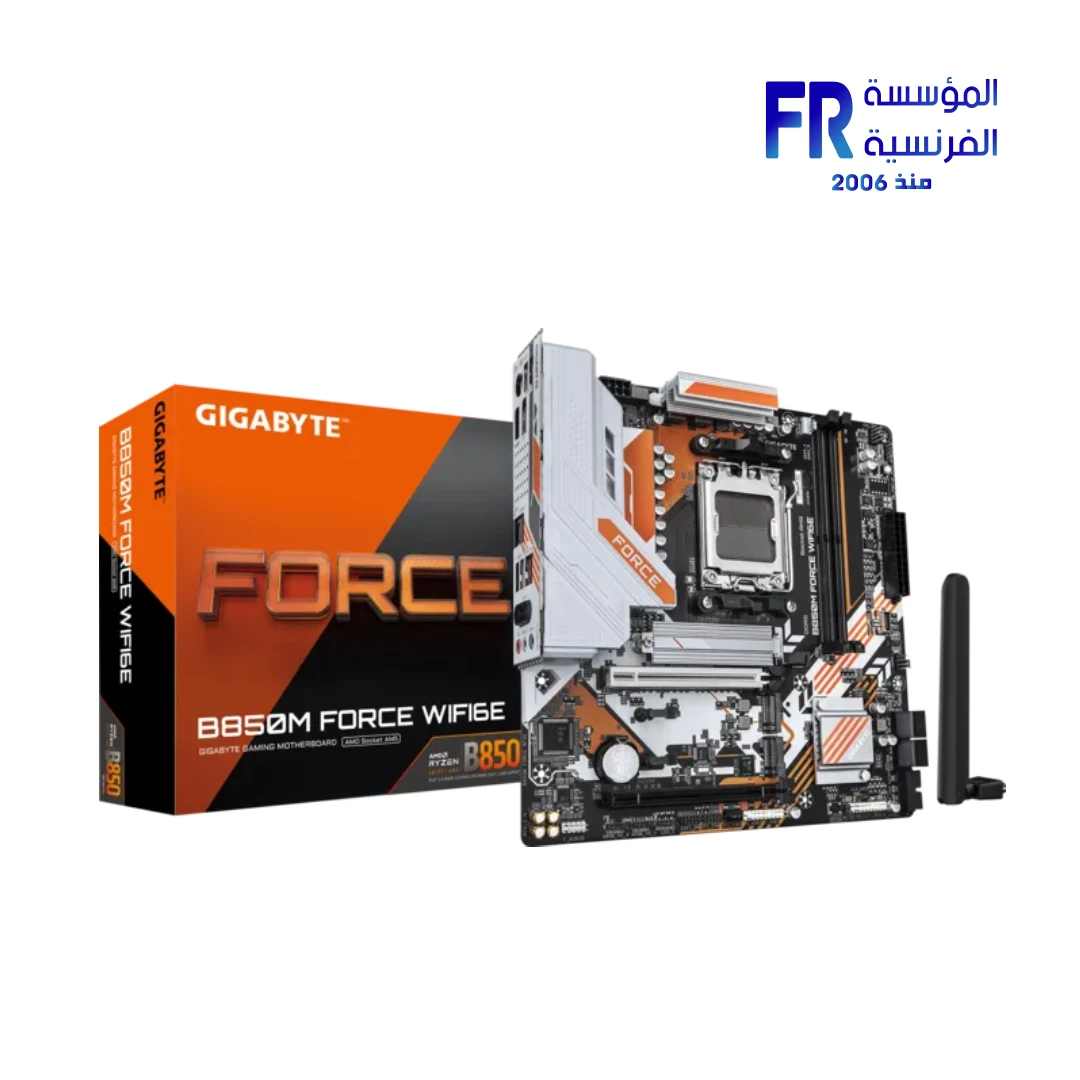

Gigabyte B850M FORCE WIFI6E Socket AM5 DDR5 Micro ATX Motherboard

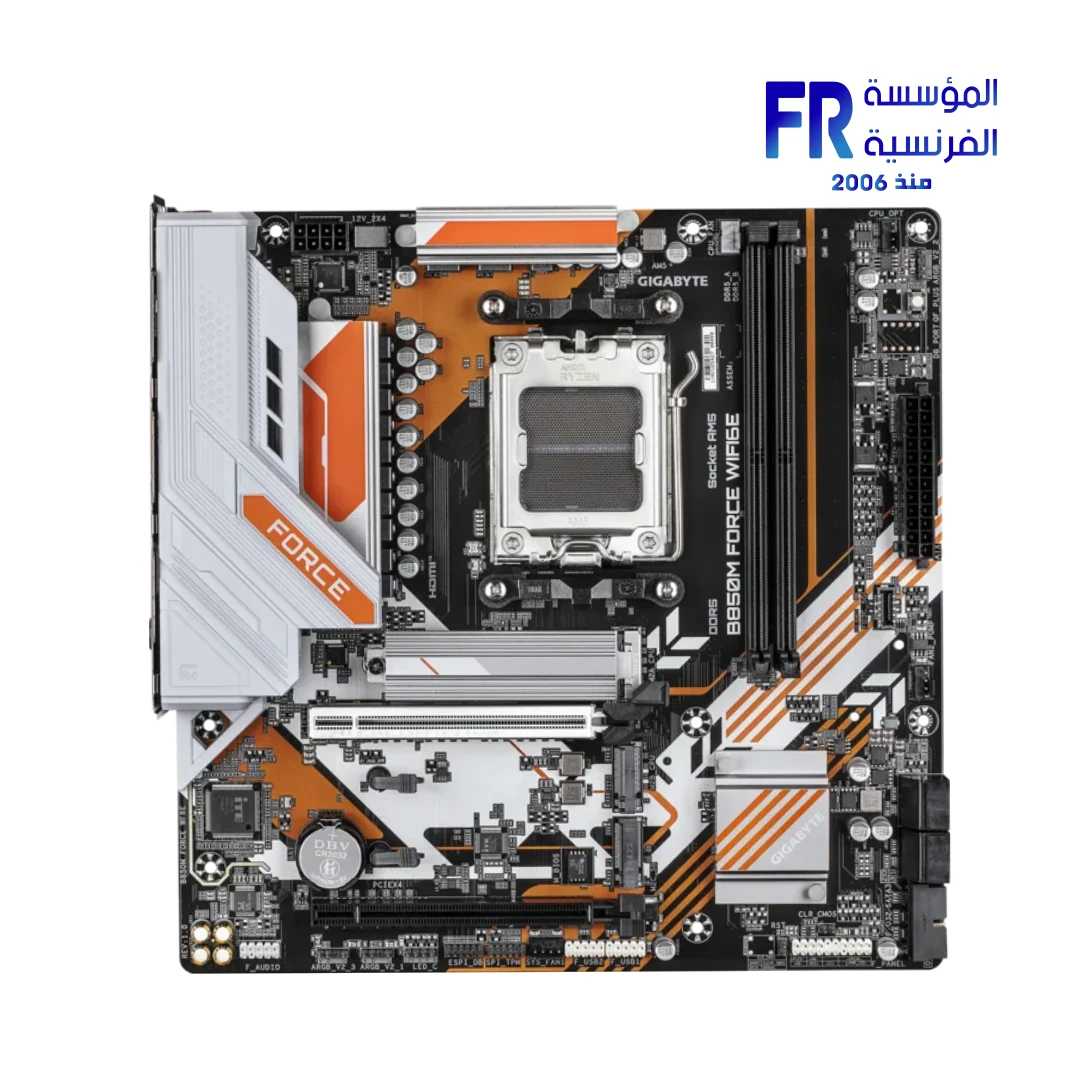

Gigabyte B850M FORCE WIFI6E Socket AM5 DDR5 Micro ATX Motherboard - Image 2

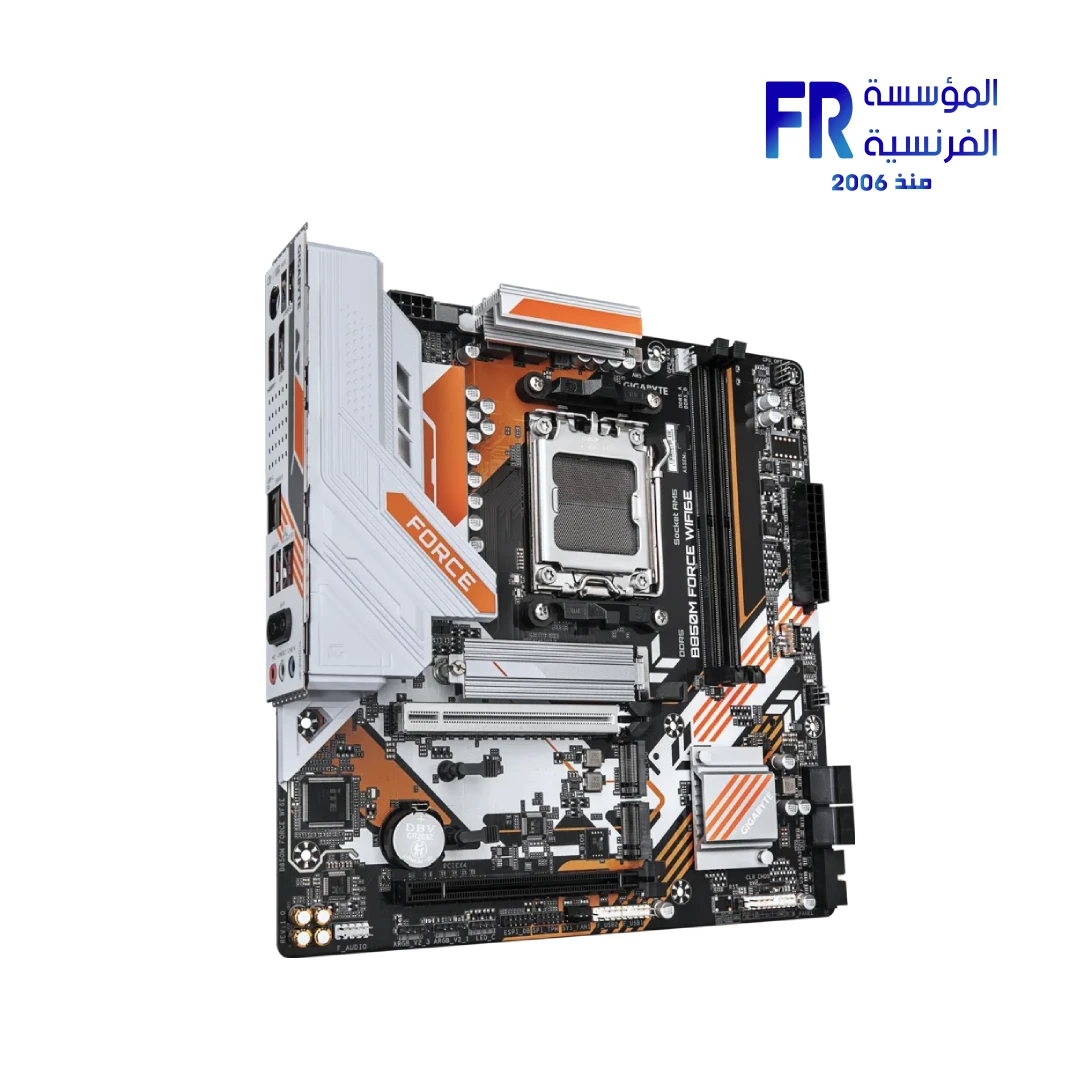

Gigabyte B850M FORCE WIFI6E Socket AM5 DDR5 Micro ATX Motherboard - Image 3

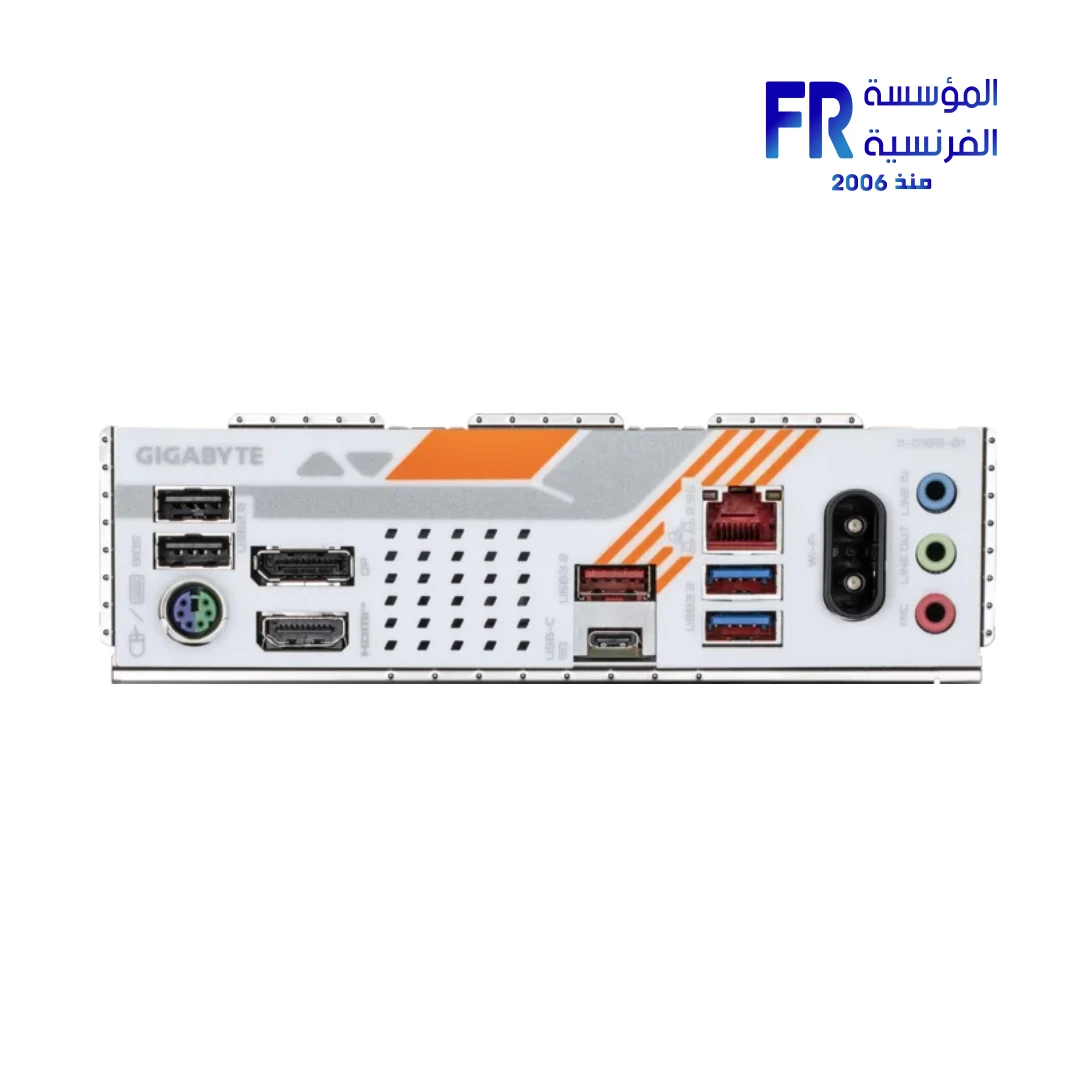

Gigabyte B850M FORCE WIFI6E Socket AM5 DDR5 Micro ATX Motherboard - Image 4

Gigabyte B850M FORCE WIFI6E Socket AM5 DDR5 Micro ATX Motherboard

7999 EGP

Part Number: 9MB85MF6-00-G12
Form Factor & Socket: Micro ATX (24.4 x 24.4 cm) | AMD Socket AM5 | AMD B850 Chipset | Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Memory: 2x DDR5 DIMM Sockets | Up to 128 GB Capacity | Dual Channel | Up to 9600(OC) MT/s | AMD EXPO™ & XMP Support
Expansion & Storage: 1x PCIe 5.0 x16 Slot (CPU) | 1x PCIe 4.0 x16 (x4 mode) Slot (Chipset) | 3x M.2 Connectors (1x PCIe 5.0 x4, 2x PCIe 4.0) | 4x SATA 6Gb/s Connectors | RAID 0/1/5/10 Support
Networking & Connectivity: MediaTek Wi-Fi 6E (2.4/5/6 GHz) | Bluetooth 5.3 | Realtek 2.5GbE LAN
Rear I/O & Graphics: 1x HDMI 2.1 | 1x DisplayPort 1.4 | 1x USB 3.2 Gen 2 Type-A | 1x USB 3.2 Gen 1 Type-C | 2x USB 3.2 Gen 1 Type-A | 2x USB 2.0 | 1x RJ-45 | 2x Antenna Connectors | 3x Audio Jacks | 1x PS/2 | Q-Flash Plus Button
Key Features: Realtek 7.1-Channel High Definition Audio | 3x Addressable RGB Gen2 Headers | 1x RGB LED Header | GIGABYTE Control Center (GCC) Support | Q-Flash & Smart Backup
OS Support: Windows 11 / Windows 10 (64-bit)
Warranty: 3 years

Only 1 left in stock

Price Match Guarantee

Description

GIGABYTE · B850 Series

GIGABYTE B850M FORCE WIFI6E
Socket AM5 · DDR5 · Micro ATX

AMD B850 · Ryzen 9000/8000/7000 · DDR5 up to 128GB · PCIe 5.0 x16 · 3× M.2 · Wi-Fi 6E + BT 5.3 · Realtek 2.5GbE · USB Type-C.

Gigabyte B850M FORCE WIFI6E Socket AM5 Micro ATX motherboard with DDR5 support

Socket AM5
DDR5 · 128GB
PCIe 5.0 x16
Wi-Fi 6E + BT 5.3
Micro ATX

Why B850M FORCE WIFI6E

AM5 ready. DDR5 fast. Micro ATX compact.

The Gigabyte B850M FORCE WIFI6E is a Micro ATX motherboard on the AMD Socket AM5 platform, built around the AMD B850 chipset with an 8+2+2 phase digital VRM design. It supports Ryzen 9000 / 8000 / 7000 series processors, up to 128 GB of DDR5 memory with AMD EXPO and XMP overclocking profiles, and carries a PCIe 5.0 x16 primary graphics slot on Ryzen 9000/7000 CPUs.

Three M.2 connectors (one PCIe 5.0 x4) and 4× SATA 6Gb/s handle storage, with RAID 0/1/5/10 for NVMe and RAID 0/1/10 for SATA. Networking is covered by Realtek 2.5GbE LAN plus MediaTek Wi-Fi 6E and Bluetooth 5.3. USB includes Type-C 3.2 Gen 1, USB 3.2 Gen 2 Type-A and USB 2.0 headers. Video outputs cover HDMI 2.1 (4K60) and DisplayPort 1.4 (4K144).

Socket / Chipset
AM5 · AMD B850

Memory
DDR5 · up to 128GB

Primary PCIe
PCIe 5.0 x16

Networking
2.5GbE · Wi-Fi 6E · BT 5.3

Warranty
3 Years

AM5 Platform

Ryzen 9000 / 8000 / 7000 Ready

Built on the AMD Socket AM5 platform with the AMD B850 chipset and an 8+2+2 phase digital VRM, the B850M FORCE WIFI6E supports AMD Ryzen 9000, 8000 and 7000 series processors. That gives you a clear upgrade path from a mid-range Ryzen 7000 build all the way to a current-generation 9000 series CPU without changing the motherboard.

Platform & Features

Modern AM5 Foundation

DDR5 up to 128GB

2 DIMM slots with DDR5 9600(OC) down to 4400 MT/s support. AMD EXPO & XMP profiles.

PCIe 5.0 x16

Primary graphics slot on Ryzen 9000/7000 CPUs. PCIe 4.0 x8/x4 on 8000 series.

3× M.2 Connectors

One PCIe 5.0 x4 from CPU, one PCIe 4.0 x4 from CPU, one PCIe 4.0 x2 from chipset.

Wi-Fi 6E + BT 5.3

MediaTek MT7902 with 2.4/5/6 GHz and 160MHz wireless support (1T1R).

2.5GbE LAN

Realtek 2.5GbE for high-speed wired networking.

Q-Flash Plus

BIOS update without CPU, memory or GPU installed.

Memory & Overclocking

DDR5 9600(OC) with EXPO & XMP

Two DDR5 DIMM slots support up to 128 GB (64GB per DIMM) and memory speeds from DDR5 4400 up to DDR5 9600 (OC) across a wide range of AMD EXPO and XMP profiles. Non-ECC un-buffered DIMMs are supported in 1Rx8, 2Rx8 and 1Rx16 configurations, backed by Gigabyte’s memory support list.

Connectivity & Storage

USB Type-C. Triple M.2. 2.5GbE.

The back panel includes USB Type-C 3.2 Gen 1, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 ports, USB 2.0, HDMI 2.1 and DisplayPort 1.4 video outputs, an RJ-45 LAN port, two antenna connectors and three audio jacks. Internally you get a USB Type-C header, USB 3.2 Gen 1 and USB 2.0 headers, three M.2 slots, 4× SATA 6Gb/s and multiple fan/pump headers including water-cooling support.

Build Insight

Enable EXPO for Full Memory Speed

After installing DDR5 memory, enter the BIOS and enable the EXPO profile to run your kit at its rated speed (up to DDR5 9600 OC). Without EXPO enabled, memory defaults to JEDEC speeds (typically 4800 MT/s), leaving significant performance on the table. The B850M FORCE WIFI6E also supports Q-Flash Plus — if you need to update the BIOS before installing a CPU, insert a USB drive with the BIOS file and press the Q-Flash Plus button on the rear panel. No CPU, memory, or GPU required.

Compact Form Factor

Micro ATX · 24.4 × 24.4 cm

The Micro ATX form factor (244 × 244 mm) fits a wide range of compact cases without sacrificing essential expansion. Two full-length PCIe x16 slots (one PCIe 5.0, one PCIe 4.0 x4) and three M.2 connectors provide ample room for a graphics card, NVMe storage, and future add-in cards. Smart Fan 6 provides precise fan control with multiple temperature and speed points, plus a Fan Stop mode for silent operation at low loads.

Ecosystem & Compatibility

Windows 11 / 10 · AM4 Cooler Compatible

The B850M FORCE WIFI6E supports Windows 11 64-bit and Windows 10 64-bit. AMD’s AM5 socket retains compatibility with many AM4 CPU coolers, allowing you to reuse existing cooling hardware where mounting brackets are compatible. Gigabyte Control Center (GCC) provides a unified interface for driver updates, RGB Fusion lighting control, and system monitoring. Norton Internet Security (OEM) is included as bundled software.

Unboxed

What’s in the Box

1× B850M FORCE WIFI6E Board
Micro ATX · 24.4 × 24.4 cm

2× SATA Cables
Standard Gigabyte accessory kit

2× M.2 Pads
For M.2 SSD installation

Wi-Fi Antenna
For Wi-Fi 6E / Bluetooth

Front Panel Connector
Q-Connector for easy front panel wiring

User Manual · Warranty Card
Documentation & driver disc

Specs

Technical Specifications

Model	GIGABYTE B850M FORCE WIFI6E
CPU Support	AMD Socket AM5 — Ryzen 9000 / 8000 / 7000 Series
Chipset	AMD B850
VRM	8+2+2 Phases Digital PWM
Memory	2× DDR5 DIMM · up to 128GB (64GB per DIMM) · DDR5 9600(OC) down to 4400 MT/s · EXPO & XMP · Non-ECC Un-buffered 1Rx8/2Rx8/1Rx16
Onboard Graphics	1× HDMI (max 4096×2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) · 1× DisplayPort (max 3840×2160@144Hz, DP 1.4)
Audio	Realtek Audio CODEC · HD Audio · 2/4/5.1/7.1-channel
LAN	Realtek 2.5GbE (2.5 / 1 / 0.1 Gbps)
Wireless	MediaTek Wi-Fi 6E MT7902 · 2.4/5/6 GHz · 802.11 a/b/g/n/ac/ax · 11ax 160MHz · Bluetooth 5.3 (1T1R)
Expansion Slots	1× PCIe x16 (CPU): PCIe 5.0 x16 on Ryzen 9000/7000; PCIe 4.0 x8 on 8000-Phoenix 1; PCIe 4.0 x4 on 8000-Phoenix 2 · 1× PCIe x16 (chipset): PCIe 4.0 x4
Storage	3× M.2 Socket 3 (2280) — CPU M2A (PCIe 5.0 x4/x2 on 9000/7000), CPU M2B (PCIe 4.0 x4/x2), Chipset M2C (PCIe 4.0 x2) · 4× SATA 6Gb/s
RAID	NVMe: RAID 0/1/5/10 (RAID 5 only on Ryzen 9000) · SATA: RAID 0/1/10
USB (CPU)	1× USB Type-C 3.2 Gen 1 (rear) · 1× USB 3.2 Gen 2 Type-A (rear) · 1× USB 2.0/1.1 (rear)
USB (Chipset)	1× USB Type-C 3.2 Gen 1 (internal header) · 4× USB 3.2 Gen 1 (2 rear + 2 internal) · 5× USB 2.0/1.1 (1 rear + 4 internal)
Internal I/O	24-pin ATX · 8-pin ATX 12V · 1× CPU fan · 1× CPU fan/water cooling pump · 1× system fan · 1× system fan/water cooling pump · 3× ARGB Gen2 · 1× RGB · 3× M.2 · 4× SATA · front panel · front audio · USB Type-C header · USB 3.2 Gen 1 header · 2× USB 2.0 headers · TPM header · reset jumper · Clear CMOS jumper · Q-Flash Plus button
Back Panel	1× HDMI · 1× DisplayPort · 1× PS/2 · 1× USB Type-C 3.2 Gen 1 · 2× USB 3.2 Gen 1 · 1× USB 3.2 Gen 2 Type-A (red) · 2× USB 2.0/1.1 · 1× RJ-45 · 2× antenna connectors · 3× audio jacks
H/W Monitoring	Voltage, temperature, fan speed, water cooling flow rate detection · fan fail warning · fan speed control
BIOS	1× 256 Mbit flash · Licensed AMI UEFI BIOS · PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC) · Q-Flash · Q-Flash Plus · Smart Backup
Bundled Software	Norton Internet Security (OEM version)
Operating System	Windows 11 64-bit · Windows 10 64-bit
Form Factor	Micro ATX · 24.4 × 24.4 cm
Warranty	3 Years

Questions

Frequently Asked Questions

Which CPUs does this motherboard support?

It supports AMD Ryzen 9000, 8000 and 7000 series processors on the Socket AM5 platform, with the AMD B850 chipset. Check Gigabyte’s website for the latest CPU support list.

How much and how fast can the memory be?

The board has 2 DDR5 DIMM slots supporting up to 128 GB (64 GB per DIMM) with speeds up to DDR5 9600 (OC) on supported Ryzen CPUs. It supports AMD EXPO and Intel XMP memory profiles.

What PCIe version does the main graphics slot use?

The primary PCIEX16 slot runs at PCIe 5.0 x16 with Ryzen 9000/7000 CPUs, PCIe 4.0 x8 with Ryzen 8000-Phoenix 1, and PCIe 4.0 x4 with Ryzen 8000-Phoenix 2. A secondary chipset PCIe x16 slot runs at PCIe 4.0 x4.

How many M.2 and SATA drives can I install?

There are three M.2 Socket 3 (2280) connectors and four SATA 6Gb/s ports. M.2 and SATA support RAID 0/1/5/10 (RAID 5 only on Ryzen 9000 CPUs).

What networking options are included?

The board includes Realtek 2.5GbE LAN plus a MediaTek Wi-Fi 6E MT7902 module covering 2.4/5/6 GHz wireless bands with Bluetooth 5.3.

What warranty is included?

The GIGABYTE B850M FORCE WIFI6E is covered by a 3-year warranty against manufacturing defects. Please contact your local retailer for warranty support.

Alfrensia · Genuine Stock

Build on AM5 with Confidence

AM5 · B850 · DDR5 up to 128GB · PCIe 5.0 x16 · 3× M.2 · Wi-Fi 6E + BT 5.3 · 2.5GbE · USB Type-C — backed by a 3-year warranty.

✓ Genuine GIGABYTE
✓ 3-Year Warranty
✓ AM5 + DDR5 + Wi-Fi 6E

SPECIFICATIONS

MOTHERBOARD

MODEL	B850M FORCE WIFI6E
CHIPSET MANUFACTURERS	AMD
CPU Socket	AM5
Motherboard Chipset	B850M
Motherboard Type	m-ATX
CPU SERIES	AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors
Technology	DDR5
Memory Speed	9600 MHz
Max Memory Size	128 GB
Memory Slot	2
PCI-E X16	2
PCI-E GEN	PCIe 5.0
PCI-E Slots (M.2)	3
SATAIII	4x SATA 6.0 Gb/s
Communication module	Bluetooth 5.3, Wi-Fi 6E
Part Number	9MB85MF6-00-G12
Warranty	3 Years
