What are the core clock speeds for the RTX 5060 Ti OC Edition?

The card features an OC mode Boost Clock of 2632MHz, while the Default Boost Clock is 2602MHz, offering superior speed and performance.

Does this ASUS Dual card support the new DisplayPort 2.1 standard?

Yes, the card is equipped with three native DisplayPort 2.1b outputs, enabling support for up to four ultra-high-resolution displays.

What is the GPU's memory speed and interface width?

The memory operates at an extremely fast 28 Gbps via a 128-bit interface, ensuring high data throughput for modern games.

Filter

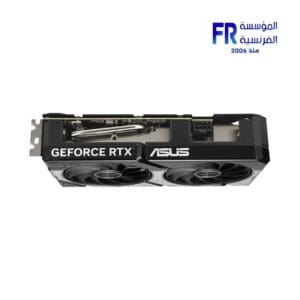

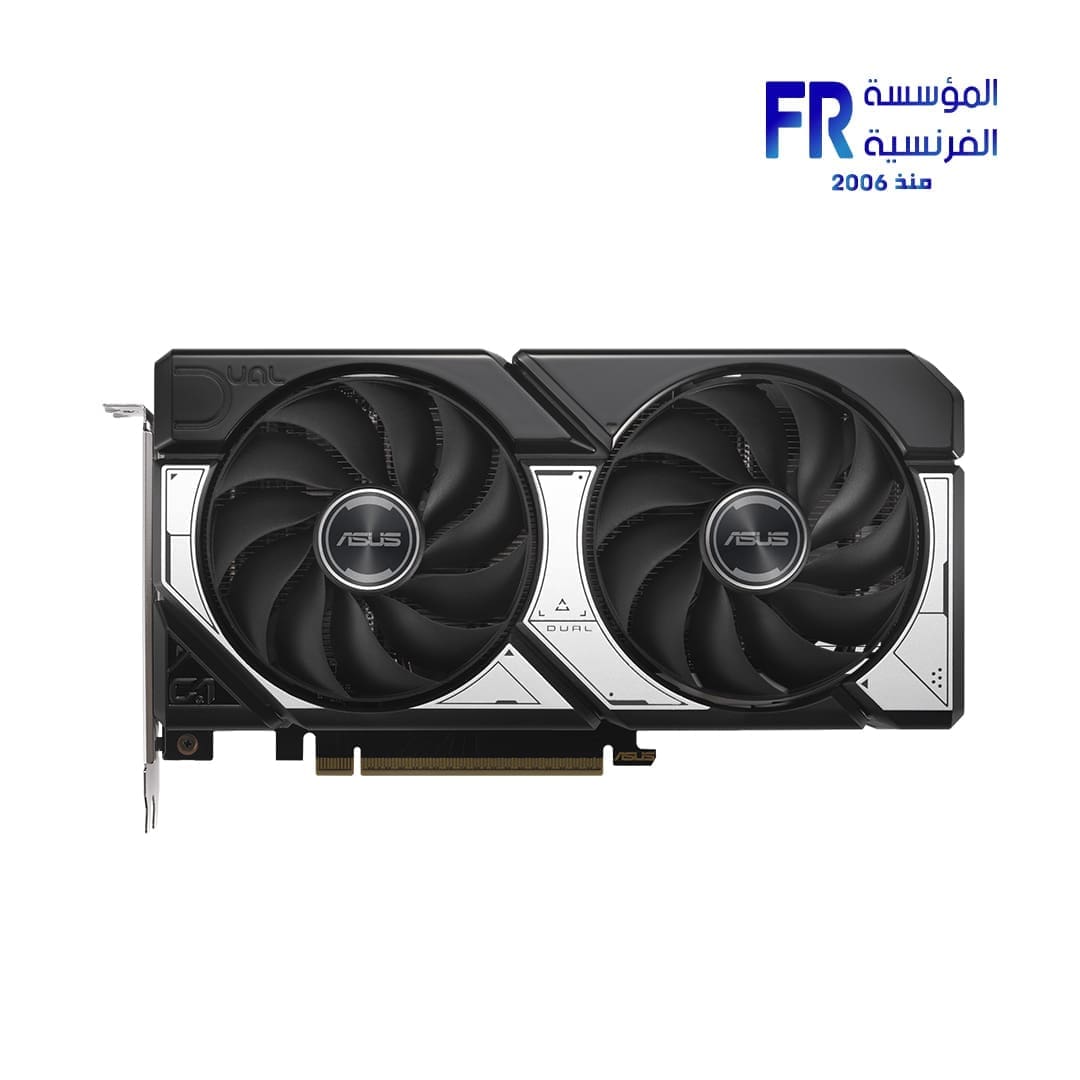

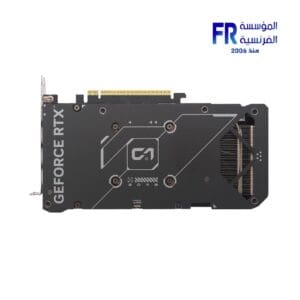

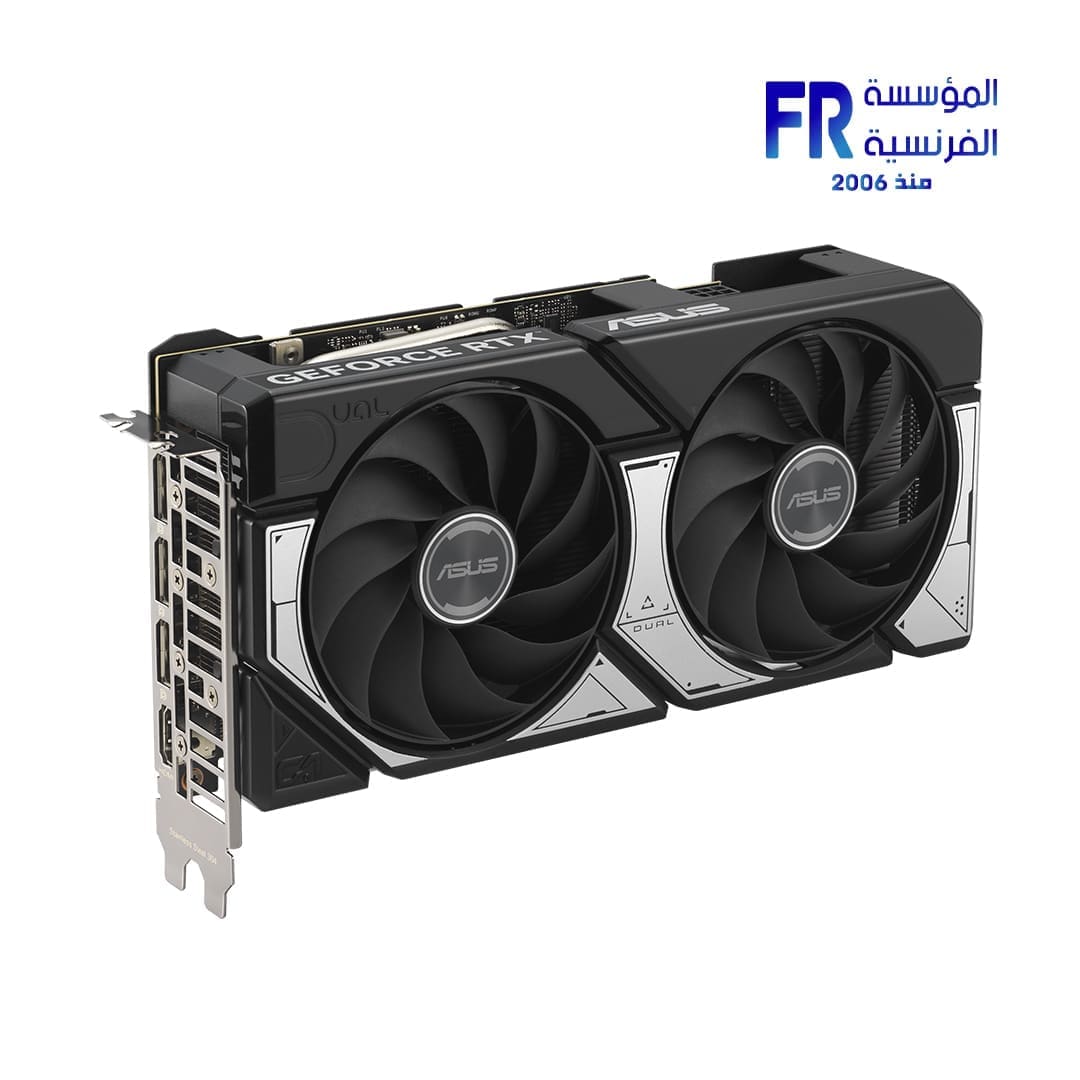

Asus GeForce RTX 5060 Ti Dual 8GB GDDR7 OC Edition Graphic Card

Asus GeForce RTX 5060 Ti Dual 8GB GDDR7 OC Edition Graphic Card

23999 EGP

Part Number: 90YV0MP2-M0NA00
Graphic Engine: NVIDIA® GeForce RTX™ 5060 Ti
Video Memory: 8GB GDDR7 / 128-bit
Engine Clock (OC): Up to 2632 MHz
Performance: 4608 CUDA Cores / 759 TOPs AI Performance

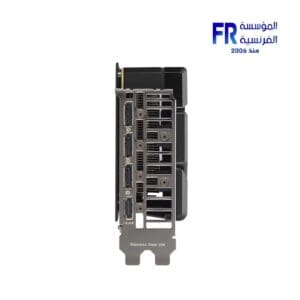

Interface Ports: 1x HDMI 2.1b, 3x DisplayPort 2.1b (PCIe 5.0 Bus)
Warranty: 3 Years

In stock

Price Match Guarantee

Asus GeForce RTX 5060 Ti Dual 8GB GDDR7 OC Edition Graphic Card

The NVIDIA GeForce RTX 50 Series ushers in a new era of gaming and AI. The ASUS GeForce RTX 5060 Ti Dual delivers superior performance and cooling in a compact 2.5 slot form factor.

8GB

GDDR7 Memory

4608

CUDA Cores

759 TOPs

AI Performance

2.5 Slot

Compact Form Factor

ASUS RTX 5060 Ti Dual Cooling and Power

Future-Ready PCIe 5.0 Architecture

This graphics card leverages a PCI Express 5.0 bus interface, offering maximum bandwidth for the high-speed 8GB GDDR7 memory. Consequently, this architecture ensures high data transfer rates, reducing bottlenecks and enhancing performance in demanding games and creative applications.

Optimized Display Output for 8K Resolution

The ASUS Dual design supports up to four concurrent displays, catering to multi-monitor setups and professional workstations. Furthermore, with support for 7680 x 4320 resolution, this card is prepared for the next generation of high-fidelity monitors.

ASUS Dual GeForce RTX 5060 Ti Specifications

Specification	Detail
SKU	90YV0MP2-M0NA00
Model Name	DUAL-RTX5060TI-O8G
UPC/EAN	197105994294
Graphic Engine	NVIDIA® GeForce RTX™ 5060 Ti
Video Memory	8GB GDDR7
Engine Clock (Boost/Default)	2632 MHz (OC) / 2602 MHz (Default)
CUDA Cores / AI Performance	4608 / 759 TOPs
Memory Speed / Interface	28 Gbps / 128-bit
Interface Ports	1x HDMI 2.1b, 3x DisplayPort 2.1b
Power Connectors	1x 8-pin
Recommended PSU	550W
Slot Size	2.5 Slot
Dimensions	229 x 120 x 50mm
Warranty	3 Years

💡 Pro Tip:

Since the ASUS GeForce RTX 5060 Ti Dual has a compact 2.5 slot design, it is ideal for smaller chassis. Be sure to download the ASUS GPU Tweak III software to manage your OC profile and monitor core temperatures efficiently.

Important Notice: All information, specifications, and images provided herein are for reference and illustrative purposes only. Visual representations may not be perfectly accurate. Product specifications, features, and appearance can vary by model and country, and are subject to change without notice by the manufacturer. While we strive to present the most precise and comprehensive information, errors in typography or photography may occur.

For the most accurate and up-to-date details, we strongly recommend referring to the official manufacturer’s website. All trademarks and copyrights are the property of their respective owners.

If you have suggestions, or if you notice an error or incorrect information in this draft, please help us improve by reporting it directly via our feedback form: Alfrensia.com – Website Feedback & Report Form.

GRAPHICS CARD

MODEL	RTX 5060 Ti Dual
CHIPSET MANUFACTURERS	NVIDIA
VGA SERIES	RTX 5060
VGA MEMORY SIZE	8GB
Technology	GDDR7
CORE CLOCKS	2632 MHz
Cuda Core	4608
Memory Bus	128 bit
Card Bus	PCI Express 5.0
Vga Cooling	Dual Fan
Recommended PSU	550W
Power Connectors	1 x 8-pin
DirectX	N/A
I/O Ports	HDMI 2.1b, HDCP Support Yes (2.3), 3 x DisplayPort 2.1b
Color	Black
Part Number	90YV0MP2-M0NA00
Warranty	3 Years
