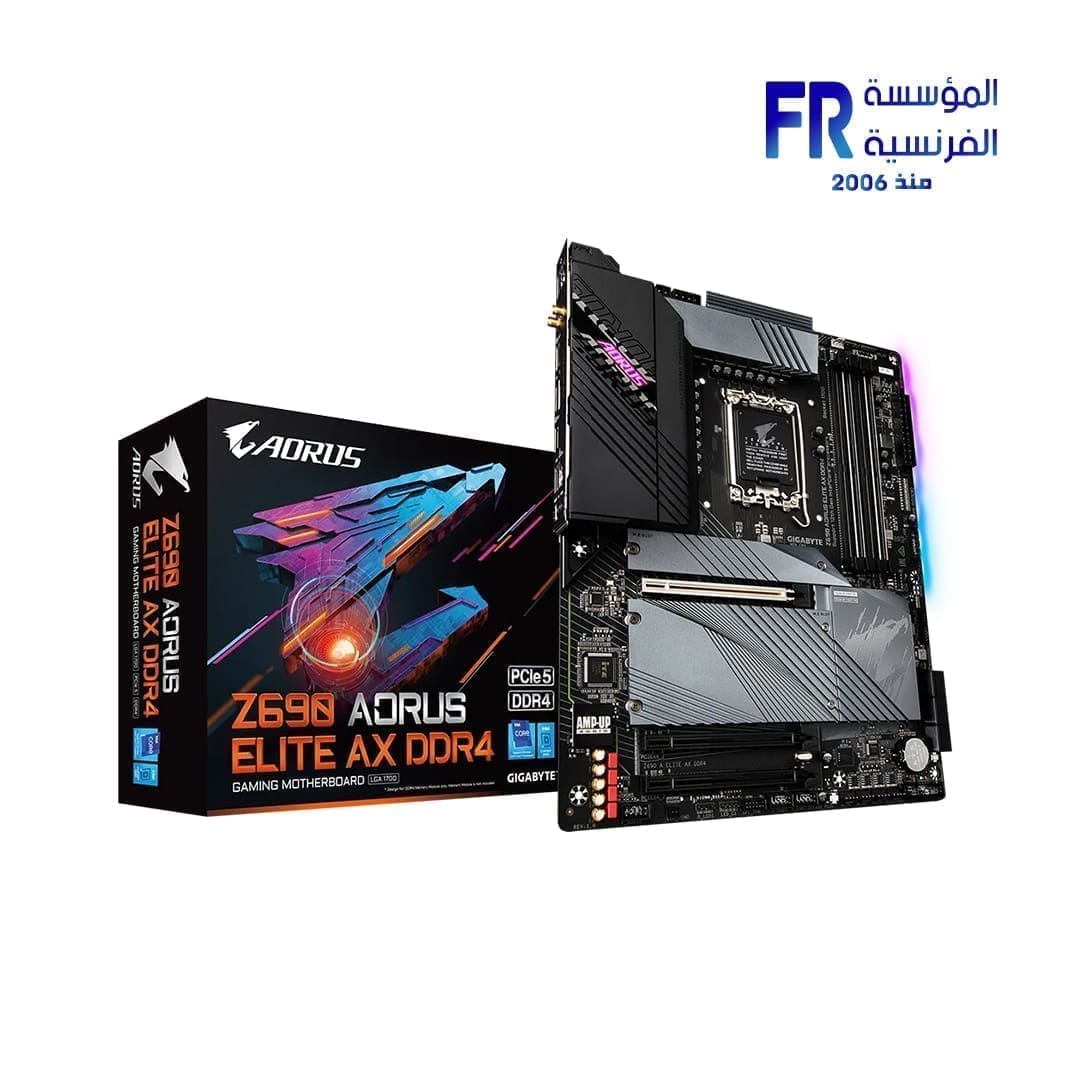

Gigabyte Z690 Aorus Elite AX DDR4 Motherboard

7000 EGP

Supports Latest Intel CPUs – Compatible with 14th, 13th, and 12th Gen Intel® Core™ processors (LGA1700 socket).
High-Speed Memory – Supports DDR4 up to 5333MHz (O.C.), 128GB max, and XMP profiles.
Next-Gen Storage – 4x M.2 slots (PCIe 4.0) + 6x SATA 6Gb/s with RAID & Intel Optane™ Ready.
Ultra-Fast Connectivity – 2.5GbE LAN, Wi-Fi 6 AX201, Bluetooth 5.2, and USB 3.2 Gen 2 & Type-C® ports.
Premium Features – Realtek ALC1220-VB Audio, RGB Fusion, PCIe 5.0 x16 slot, and Q-Flash Plus for BIOS updates without a CPU.

Out Of Stock.

Price Match Guarantee

Gigabyte Z690 Aorus Elite AX DDR4 Motherboard SPECIFICATIONS:

LGA1700 socket
Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
L3 cache varies by CPU

4 x M.2 slots
- 1 x PCIe 4.0 x4/x2 (CPU)
- 1 x SATA & PCIe 4.0 x4/x2 (Chipset)
- 2 x PCIe 4.0 x4/x2 (Chipset)
6 x SATA 6Gb/s ports
RAID support: RAID 0, 1, 5, 10
Intel® Optane™ Memory Ready

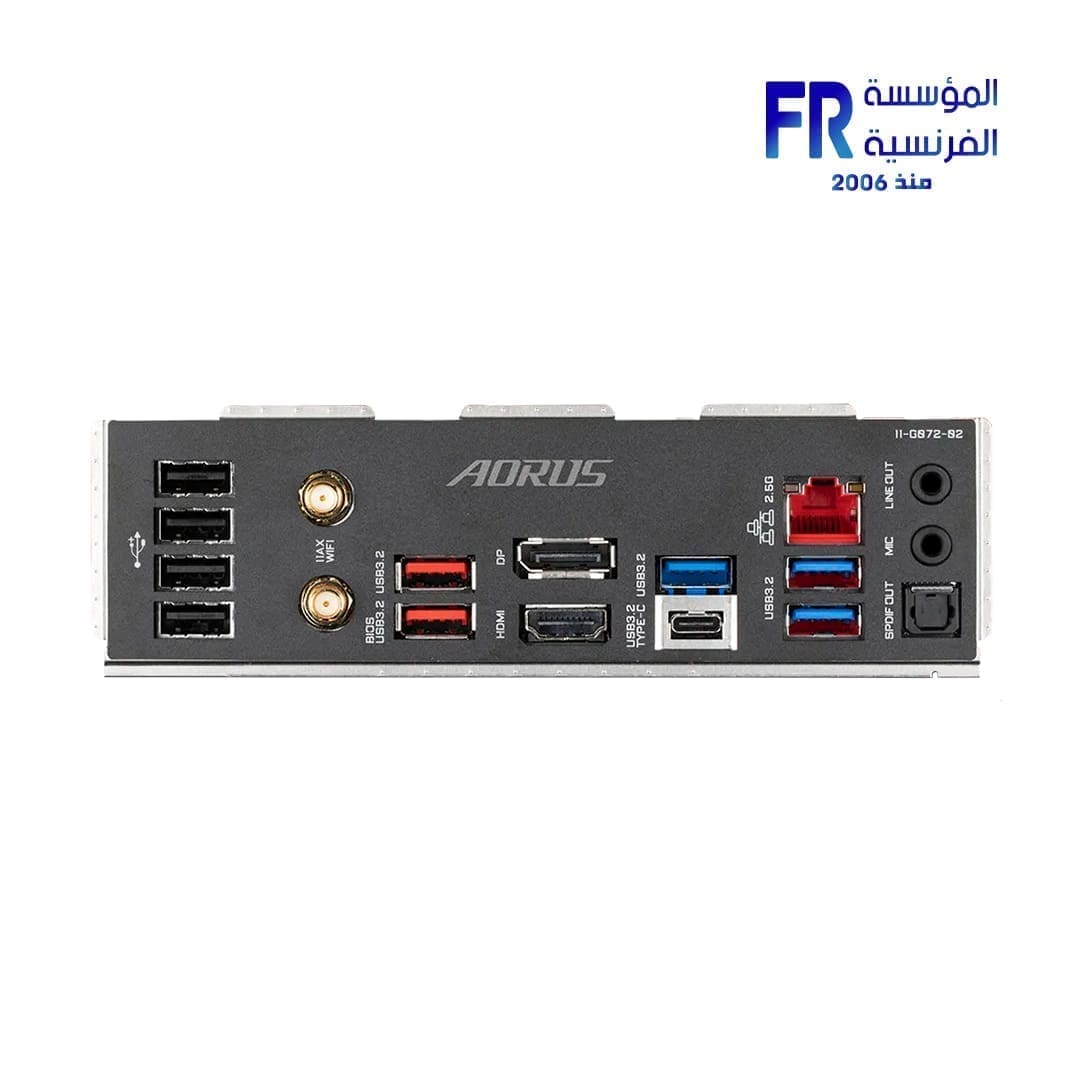

Back Panel:
- 1 x USB Type-C® (USB 3.2 Gen 2×2)
- 2 x USB 3.2 Gen 2 Type-A
- 3 x USB 3.2 Gen 1
- 4 x USB 2.0/1.1
Internal Headers:
- 1 x USB Type-C® (USB 3.2 Gen 2)
- 1 x USB 3.2 Gen 1 header (2 ports)
- 2 x USB 2.0 headers (4 ports)

MOTHERBOARD

MODEL	Z690 Aorus Elite
CHIPSET MANUFACTURERS	INTEL
CPU Socket	LGA 1700
Motherboard Chipset	Z690
Motherboard Type	ATX
CPU SERIES	intel 14th & 13th & 12th
Technology	DDR4
Memory Speed	2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3300 MHz, 3333 MHz, 3400 MHz, 3466 MHz, 3600 MHz, 3666 MHz, 3733 MHz, 3800 MHz, 3866 MHz, 4000 MHz, 4133 MHz, 4266 MHz, 4300 MHz, 4400 MHz, 4500 MHz, 4600 MHz, 4700 MHz, 4800 MHZ, 4933 MHz, 5000 MHz, 5133 MHz, 5333 MHz
Max Memory Size	128 GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 3.0, PCIe 5.0
PCI-E Slots (M.2)	4
SATAIII	6x SATA 6G
Communication module	Bluetooth, Wireless
Part Number	Z690 AORUS ELITE
Warranty	3 Years
